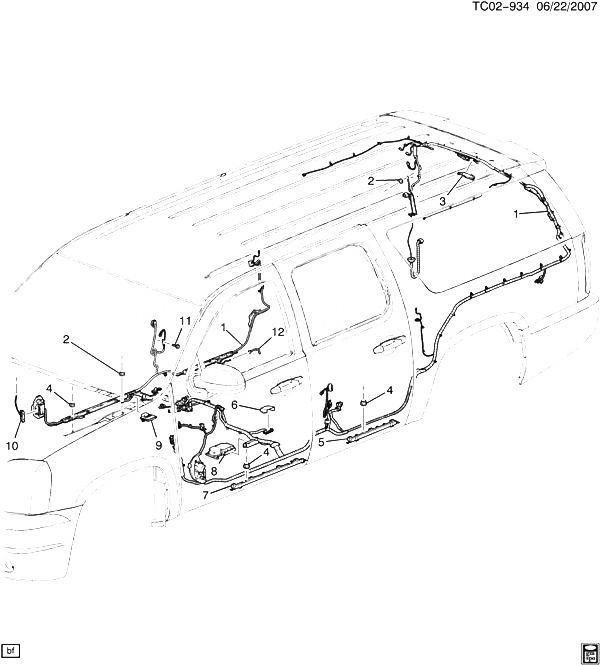

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20927024 |
HARNESS, BODY WRG (INCLS 5, 7) |
CK109 (06) (AN3, ARS, UUK, UUL, UUM, UVC, Y91, Z75) |
2010-2010 |
01 |
| 001 |
20927069 |
HARNESS, BODY WRG (INCLS 5, 7) |
CK109 (06) (AN3, E61, UUK, UUL, UUM, UVC, Y91, Z75) (EXC ARS) |
2010-2010 |
01 |
| 001 |
20927021 |
HARNESS, BODY WRG (INCLS 5, 7) |
CK109 (06) (AN3, E61, UUK, UUL, UUM, UVC, Y91, Z75) (EXC ARS) |
2010-2010 |
01 |
| 002 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BODY WRG HARN GND) |
|
2007-2013 |
03 |
| 003 |
|
LAMP, HIGH MT STOP (SEE GROUP 02.000 REAR LAMPS FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 004 |
21011332 |
NUT, HEX STAMPED TY DF FLG 14 (BODY WRG HARN BRKT) (8.921) |
|
2007-2013 |
08 |
| 005 |
|
CONDUIT, BODY WRG HARN (PART OF 1) |
|
2009-2013 |
|
| 006 |
25952151 |
COVER, WRG HARN CONN (EBONY) |
CK1, 2 (06-36) (Z75) |
2010-2010 |
01 |
| 006 |
25952153 |
COVER, WRG HARN CONN (EBONY) |
CK1, 2 (06-36) (Z75) |
2010-2010 |
01 |
| 007 |
19178080 |
CONDUIT, BODY WRG HARN (PART OF 1) (FRT DR SILL PLATE) |
CK1, 2, 3 |
2010-2010 |
02 |
| 008 |
13576628 |
MODULE, AIRBAG SEN DIAGN (SEE GROUP 16.000 INFLATEABLE RESTRAINT SYSTEM FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 009 |
|
MODULE, RR VIEW CAMERA IMAGE DISPLAY (SEE GROUP 02.000 SENSOR SYSTEM/REAR OBJECT FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 010 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 011 |
11588337 |
BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (BODY WRG HARN GND) |
|
2007-2013 |
02 |
| 012 |
|
HARNESS, R/SEAT HTR (SEE GROUP 15.000 SEAT ASM/REAR FOR DETAILED ILLUSTRATED VIEW EW) |
|
2007-2013 |
|
