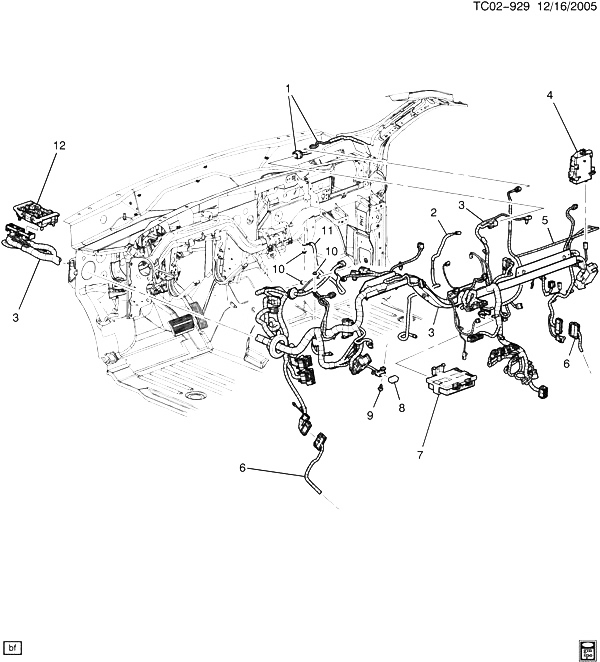

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
HARNESS, RF WRG (SEE GROUP 02.000 WIRING HARNESS/ROOF FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 002 |
22847989 |
CABLE, RDO ANT CBL EXTN RDO END (1021 MM) (ACDelco #22847989) |
CK1 (U84, Z75) |
2007-2013 |
01 |
| 003 |
20930549 |
HARNESS, I/P WRG (INCLS 5) |
K109 (06) (BRS, DNU, NR3, ULT, U42, Y91, Z75) (EXC UE1) |
2010-2010 |
01 |
| 003 |
20930552 |
HARNESS, I/P WRG (INCLS 5) |
K1 (06) (NR3, UE1, Y91, Z75) (EXC BRS, UFT, U42) |
2010-2010 |
01 |
| 003 |
20930553 |
HARNESS, I/P WRG (INCLS 5) |
K1 (06) (DNU, NR3, UE1, U42, Y91, Z75) (EXC BRS, UFT, U42) |
2010-2010 |
01 |
| 003 |
20930561 |
HARNESS, I/P WRG (INCLS 5) |
K1 (06) (NR3, Y91, Z75) (EXC BRS, DNU, T89, UE1, UFT) |
2010-2010 |
01 |
| 003 |
20930566 |
HARNESS, I/P WRG (INCLS 5) |
K1 (06) (BRS, NR3, Y91, Z75) (EXC DNU, T89, UE1, UFT, ULT) |
2010-2010 |
01 |
| 003 |
20930566 |
HARNESS, I/P WRG (INCLS 5) |
K1 (06) (NR3, UFT, Y91, Z75) (EXC DNU, T89, UE1, ULT) |
2010-2010 |
01 |
| 003 |
20930568 |
HARNESS, I/P WRG (INCLS 5) |
K1 (06) (BRS, NR3, UE1, Y91, Z75) (EXC UFT, U42) |
2010-2010 |
01 |
| 003 |
20930568 |
HARNESS, I/P WRG (INCLS 5) |
K1 (06) (NR3, UE1, UFT, Y91, Z75) (EXC U42) |
2010-2010 |
01 |
| 003 |
20930570 |
HARNESS, I/P WRG (INCLS 5) |
K109 (06) (DNU, NR3, UE1, UFT, ULT, U42, Y91, Z75) |
2010-2010 |
01 |
| 003 |
20930571 |
HARNESS, I/P WRG (INCLS 5) |
K1 (06) (DNU, U42, Y91, Z75, NR3) (EXC BRS, UE1, UFT) |
2010-2010 |
01 |
| 003 |
20930572 |
HARNESS, I/P WRG (INCLS 5) |
K1 (06) (BRS, DNU, U42, Y91, Z75, NR3) (EXC UE1, UFT, ULT) |
2010-2010 |
01 |
| 003 |
20930572 |
HARNESS, I/P WRG (INCLS 5) |
K1 (06) (UFT, DNU, U42, Y91, Z75, NR3) (EXC UE1, ULT) |
2010-2010 |
01 |
| 003 |
20930640 |
HARNESS, I/P WRG (INCLS 5) |
K1 (06) (BRS, DNU, NR3, UE1, U42, Y91, Z75) (EXC UFT, ULT) |
2010-2010 |
01 |
| 003 |
20930640 |
HARNESS, I/P WRG (INCLS 5) |
K1 (06) (DNU, NR3, UE1, UFT, U42, Y91, Z75) (EXC ULT) |
2010-2010 |
01 |
| 004 |
|
RECEIVER, DIGITAL RDO (SEE GROUP 09.000 ANTENNA/DIGITAL AUDIO FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 005 |
|
SEE GROUP 09.000 CABLE KIT FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2010 |
|
| 006 |
|
HARNESS, BODY WRG (SEE GROUP 02.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 007 |
|
MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) (SEE GROUP 09.000 COMMUNICATION SYSTEM FOR DETAILED ILLUSTRATED VIEW) (2.480) |
|
2007-2013 |
|
| 009 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (I/P WRG HARN DATA LINK CONN) (9.665) |
|
2007-2013 |
01 |
| 010 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (I/P WRG HARN GND) |
|
2007-2013 |
03 |
| 012 |
|
BLOCK, ENG WRG HARN JUNC (SEE GROUP 02.000 BLOCK/ENGINE HARNESS JUNCTION FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
