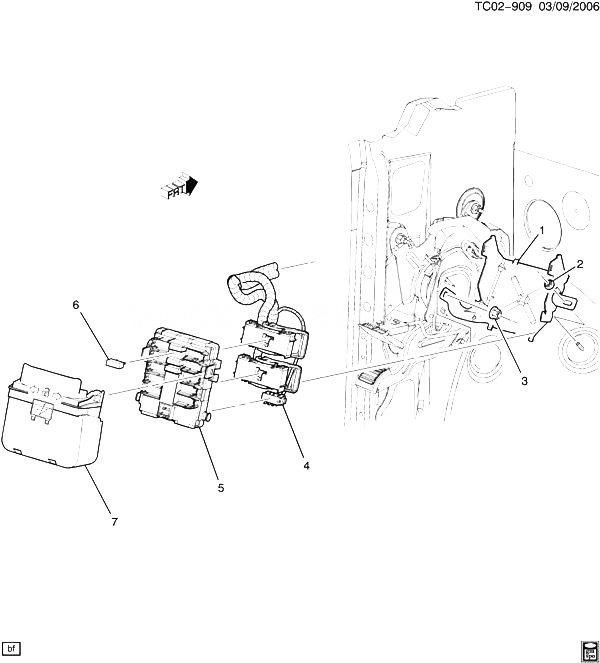

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25867232 |
BRACKET, DA WRG HARN J/BLK |
CK1, 2, 3 (EXC E29) |
2007-2011 |
01 |
| 002 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (DA WRG HARN J/BLK BRKT) |
|
2007-2013 |
01 |
| 003 |
11516780 |
NUT, HEX W/CON WA, M8X1.25, 10THK, 19 O.D., 10, 7111M (PARK BRK CONT MDL) (8.917) |
|
2007-2013 |
03 |
| 004 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 005 |
20813086 |
BLOCK, BODY WRG HARN JUNC (INCLS 6) |
CK1, 2 (06-36) (AN3, JF4) |
2009-2013 |
01 |
| 005 |
20813086 |
BLOCK, BODY WRG HARN JUNC (INCLS 6) |
CK1, 2 (06-36) (EXC JF4, PPV, 5W4) |
2009-2013 |
01 |
| 005 |
20813087 |
BLOCK, BODY WRG HARN JUNC (INCLS 6) |
CK1, 2 (06-36) (PPV, 5W4) |
2008-2013 |
01 |
| 006 |
19116527 |
BREAKER, CIRC (PART OF 5) (25 AMP MANUAL RESET) |
CK1, 2, 3 |
2007-2013 |
01 |
| 006 |
12088575 |
BREAKER, CIRCUIT, 25AMP, WHITE (PART OF 5) (NON-CYC) |
|
2007-2013 |
03 |
| 007 |
25953821 |
COVER, DA WRG HARN J/BLK (DESIGN CHANGESEE TTV WILL LOOK DIFF BUT WILL WORK DLR TO CALL TAC IF AN INSTALL ISSUE.) |
CK1, 2, 3 |
2007-2013 |
01 |
