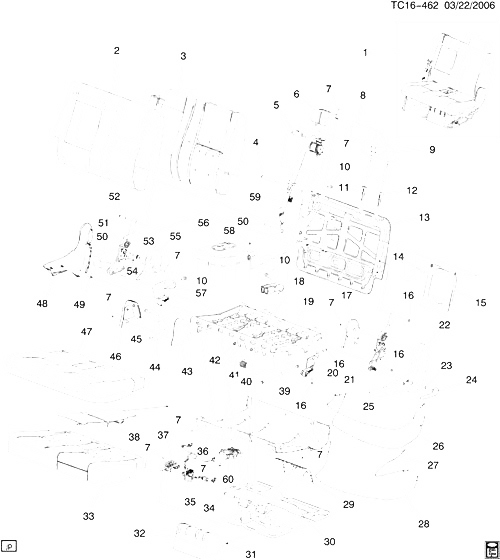

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15914189 |
SEAT, RR (ONLY AVAILABLE DURING CURRENT MODEL YEAR) (EBONY) |
CK109, 2 (06) (AM8, 19C, 5T5) |
2009-2009 |
01 |
| 001 |
20795283 |
SEAT, RR (ONLY AVAILABLE DURING CURRENT MODEL YEAR) (EBONY) |
CK1 (06) (AM8, AX4, HP2, KA6, Z75, 194) (EXPORT) |
2009-2009 |
01 |
| 001 |
20795284 |
SEAT, RR (ONLY AVAILABLE DURING CURRENT MODEL YEAR) (CASHMERE) |
CK1 (06) (AM8, AX4, HP2, KA6, Z75, 394) (EXPORT) |
2009-2009 |
01 |
| 001 |
25835092 |
SEAT, RR (ONLY AVAILABLE DURING CURRENT MODEL YEAR) (EBONY) |
CK109 (06) (AM8, ARS, KA6, Z75, 194) |
2009-2009 |
01 |
| 001 |
25835095 |
SEAT, RR (ONLY AVAILABLE DURING CURRENT MODEL YEAR) (EBONY) |
CK109 (06) (AM8, ARS, KA6, Y91, Z88, 194) (EXC KB6) |
2009-2009 |
01 |
| 001 |
25835096 |
SEAT, RR (ONLY AVAILABLE DURING CURRENT MODEL YEAR) (CASHMERE) |
CK109 (06) (AM8, ARS, KA6, Y91, Z88, 394) (EXC KB6) |
2009-2009 |
01 |
| 001 |
25908007 |
SEAT, RR (ONLY AVAILABLE DURING CURRENT MODEL YEAR) (CASHMERE) |
CK109 (06) (AM8, ARS, KA6, Z75, 394) |
2009-2009 |
01 |
| 001 |
25970975 |
SEAT, RR (ONLY AVAILABLE DURING CURRENT MODEL YEAR) (EBONY) |
CK109, 2 (06) (AM8, 19C) (EXC 5T5) |
2009-2009 |
01 |
| 001 |
25970976 |
SEAT, RR (ONLY AVAILABLE DURING CURRENT MODEL YEAR) (CASHMERE) |
CK109, 2 (06) (AM8, 33C) |
2009-2009 |
01 |
| 001 |
25970977 |
SEAT, RR (ONLY AVAILABLE DURING CURRENT MODEL YEAR) (TITANIUM) |
CK109, 2 (06) (AM8, 83C) |
2009-2009 |
01 |
| 002 |
15291660 |
COVER, R/SEAT BK CUSH (EBONY) |
CK1 (06) (AM8, KA6, Z75, 194) (EXC CZ2) |
2007-2009 |
01 |
| 002 |
15865521 |
COVER, R/SEAT BK CUSH (EBONY) |
CK1, 2 (06) (AM8, 193) (EXC KB6) |
2009-2009 |
01 |
| 002 |
15865522 |
COVER, R/SEAT BK CUSH (CASHMERE) |
CK1, 2 (06) (AM8, 333) (EXC KB6) |
2009-2009 |
01 |
| 002 |
15865523 |
COVER, R/SEAT BK CUSH (TITANIUM) |
CK1, 2 (06) (AM8, 833) (EXC KB6) |
2009-2009 |
01 |
| 002 |
15914202 |
COVER, R/SEAT BK CUSH (EBONY) |
CK1, 2 (06) (AM8, 19C, 5T5) |
2009-2009 |
01 |
| 002 |
15939171 |
COVER, R/SEAT BK CUSH (EBONY/TITANIUM) |
CK1, 2 (06) (AM8, 843) |
2007-2009 |
01 |
| 002 |
20758107 |
COVER, R/SEAT BK CUSH (EBONY) (USED ON VEHICLES BUILT 12/01/08 AFTER) (1ST DES SEE 25970987) |
CK1, 2 (06) (AM8, 19C) (EXC 5T5) (2ND DES) |
2009-2009 |
01 |
| 002 |
20758108 |
COVER, R/SEAT BK CUSH (CASHMERE) (USED ON VEHICLES BUILT 12/01/08 AFTER) (1ST DES SEE 25970988) |
CK1, 2 (06) (AM8, 33C) (2ND DES) |
2009-2009 |
01 |
| 002 |
20758109 |
COVER, R/SEAT BK CUSH (TITANIUM) (USED ON VEHICLES BUILT 12/01/08 AFTER) (1ST DES SEE 25970989) |
CK1, 2 (06) (AM8, 83C) (2ND DES) |
2009-2009 |
01 |
| 002 |
25928760 |
COVER, R/SEAT BK CUSH (EBONY) |
CK1 (06) (AM8, KA6, Y91, Z88, 194) (EXC KB6) |
2009-2009 |
01 |
| 002 |
25970987 |
COVER, R/SEAT BK CUSH (EBONY) (USED ON VEHICLES BUILT 11/30/08 PRIOR) (2ND DES SEE 20758107) |
CK1, 2 (06) (AM8, 19C) (EXC 5T5) (1ST DES) |
2009-2009 |
01 |
| 002 |
25970988 |
COVER, R/SEAT BK CUSH (CASHMERE) (USED ON VEHICLES BUILT 11/30/08 PRIOR) (2ND DES SEE 20758108) |
CK1, 2 (06) (AM8, 33C) (1ST DES) |
2009-2009 |
01 |
| 002 |
25970989 |
COVER, R/SEAT BK CUSH (TITANIUM) (USED ON VEHICLES BUILT 11/30/08 PRIOR) (2ND DES SEE 20758109) |
CK1, 2 (06) (AM8, 83C) (1ST DES) |
2009-2009 |
01 |
| 003 |
15291597 |
PAD, R/SEAT BK CUSH |
CK1, 2 (06) (AM8) (EXC 19V, 5T5) |
2007-2009 |
01 |
| 003 |
15914200 |
PAD, R/SEAT BK CUSH |
CK1, 2 (06) (AM8, 5T5) |
2007-2009 |
01 |
| 004 |
11562382 |
БОЛТ, HFH, M10X1.5X130, 26 THD, 22.3 OD, 10.9, 7114M, MACH, MAT-PT (R/SEAT BK CUSH FRM) |
|
2007-2009 |
01 |
| 005 |
15289969 |
BRACKET, R/SEAT CTR BELT (RETR SI) |
CK1, 2 (06) (AM8) |
2007-2009 |
01 |
| 006 |
15279450 |
PROTECTOR, R/SEAT SHLDR BELT (BLACK) |
CK1, 2 (06) |
2007-2009 |
01 |
| 007 |
11570116 |
SCREW -PAN HD, M6X1X10, 10 THD, 12 OD, STL SAE J1237, S424, TAPTITE ITE (R/SEAT LAT FIN CVR) (8.913) |
|
2007-2009 |
14 |
| 008 |
|
COVER, R/SEAT H/RST SUPT (PART OF 9) |
|
2007-2009 |
|
| 009 |
15824672 |
RESTRAINT, R/SEAT HD (INCLS 8) (EBONY) |
CK1 (06) (AM8, 194) |
2007-2009 |
02 |
| 009 |
15824672 |
RESTRAINT, R/SEAT HD (INCLS 8) (EBONY) |
CK1 (06) (AM8, 197) |
2009-2009 |
02 |
| 009 |
15904736 |
RESTRAINT, R/SEAT HD (INCLS 8) (TITANIUM) (USED ON VEHICLES BUILT 11/30/08 PRIOR) (2ND DES SEE 20758019) |
CK109, 2 (06) (AM8, 83C) (1ST DES) |
2009-2009 |
02 |
| 009 |
15904738 |
RESTRAINT, R/SEAT HD (INCLS 8) (EBONY) |
CK109, 2 (06) (AM8, 193) |
2009-2009 |
02 |
| 009 |
15904738 |
RESTRAINT, R/SEAT HD (INCLS 8) (EBONY) |
CK109, 2 (06) (AM8, 196, 226, 846) |
2009-2009 |
02 |
| 009 |
15904739 |
RESTRAINT, R/SEAT HD (INCLS 8) (CASHMERE) |
CK109, 2 (06) (AM8, 316, 336) |
2009-2009 |
02 |
| 009 |
15904739 |
RESTRAINT, R/SEAT HD (INCLS 8) (CASHMERE) |
CK109, 2 (06) (AM8, 333) |
2009-2009 |
02 |
| 009 |
20758017 |
RESTRAINT, R/SEAT HD (INCLS 8) (EBONY) (USED ON VEHICLES BUILT 12/01/08 AFTER) (1ST DES SEE 25863778) |
CK109 (06) (AM8, 19C) (2ND DES) |
2009-2009 |
02 |
| 009 |
20758018 |
RESTRAINT, R/SEAT HD (INCLS 8) (CASHMERE) |
CK109 (06) (AM8, 33C) |
2009-2009 |
02 |
| 009 |
20758019 |
RESTRAINT, R/SEAT HD (INCLS 8) (TITANIUM) (USED ON VEHICLES BUILT 12/01/08 AFTER) (1ST DES SEE 15904736) |
CK109 (06) (AM8, 83C) (2ND DES) |
2009-2009 |
02 |
| 009 |
25863778 |
RESTRAINT, R/SEAT HD (INCLS 8) (EBONY) (USED ON VEHICLES BUILT 11/30/08 PRIOR) (2ND DES SEE 20758017) |
CK109 (06) (AM8, 19C) (1ST DES) |
2009-2009 |
02 |
| 009 |
25928791 |
RESTRAINT, R/SEAT HD (INCLS 8) (CASHMERE) |
CK1 (06) (AM8, 394) |
2007-2009 |
02 |
| 009 |
25928791 |
RESTRAINT, R/SEAT HD (INCLS 8) (CASHMERE) |
CK1 (06) (AM8, 397) |
2009-2009 |
02 |
| 010 |
11562383 |
БОЛТ, HFH, M12X1.75X30.5, 17 THD, 26.6 OD, 10.9 STL, GMW3359, W/ADH 6175M (R/SEAT LAT) |
|
2007-2009 |
03 |
| 011 |
15279347 |
GUIDE, R/SEAT H/RST (EBONY) (W/BUTTON) |
CK1, 2 (06) (19I, 84I) |
2009-2009 |
02 |
| 011 |
15279348 |
GUIDE, R/SEAT H/RST (CASHMERE) (W/BUTTON) |
CK1, 2 (06-36) (31I, 33I, 39I) |
2007-2009 |
02 |
| 011 |
15279349 |
GUIDE, R/SEAT H/RST (TITANIUM) (W/BUTTON) |
CK1, 2 (06-36) (83I) |
2007-2009 |
02 |
| 012 |
15279351 |
GUIDE, R/SEAT H/RST (EBONY) (W/O BUTTON) |
CK1, 2 (06) (19I, 84I) |
2009-2009 |
02 |
| 012 |
15279352 |
GUIDE, R/SEAT H/RST (CASHMERE) (W/O BUTTON) |
CK1, 2 (06-36) (31I, 33I, 39I) |
2007-2009 |
02 |
| 012 |
15279353 |
GUIDE, R/SEAT H/RST (TITANIUM) (W/O BUTTON) |
CK1, 2 (06-36) (83I) |
2007-2009 |
02 |
| 013 |
15269762 |
FRAME, R/SEAT BK CUSH |
CK1, 2 (06) (AM8) |
2007-2009 |
01 |
| 014 |
15279406 |
PIN, R/SEAT H/RST ADJ ROD LAT (EBONY) |
CK1, 2 (06) (AM8, 19I) |
2009-2009 |
02 |
| 014 |
15279407 |
PIN, R/SEAT H/RST ADJ ROD LAT (CASHMERE) |
CK1, 2 (06) (AM8, 33I, 39I) |
2009-2009 |
02 |
| 014 |
15279408 |
PIN, R/SEAT H/RST ADJ ROD LAT (TITANIUM) |
CK1, 2 (06) (AM8, 83I) |
2007-2009 |
02 |
| 015 |
15279469 |
COVER, R/SEAT A/RST SUPT FIN (EBONY) |
CK1, 2 (06) (AM8, 19I) |
2009-2009 |
01 |
| 015 |
15279470 |
COVER, R/SEAT A/RST SUPT FIN (CASHMERE) |
CK1, 2 (06) (AM8, 33I, 39I) |
2009-2009 |
01 |
| 015 |
15279471 |
COVER, R/SEAT A/RST SUPT FIN (TITANIUM) |
CK1, 2 (06) (AM8, 83I) |
2007-2009 |
01 |
| 015 |
20789635 |
COVER, R/SEAT A/RST SUPT FIN (COCOA) |
CK1 (06) (AM8, HP2, ULT, Z75, 415) |
2009-2009 |
01 |
| 016 |
11562378 |
BOLT-HFH, M10X1.5X30, 18 THD, 22.3 OD, 10.9, GMW3359, W/ADH GM6175M (R/SEAT LAT) |
|
2007-2009 |
06 |
| 017 |
15279624 |
COVER, R/SEAT BK CUSH HGE FIN (EBONY) (OUTBOARD, INNER) (16.674) |
CK109, 2 (06) (AM8, 19I, 84I) |
2009-2009 |
01 |
| 017 |
15279625 |
COVER, R/SEAT BK CUSH HGE FIN (CASHMERE) (OUTBOARD, INNER) (16.674) |
CK109, 2 (06) (AM8, 31I, 33I, 39I) |
2007-2009 |
01 |
| 017 |
15279626 |
COVER, R/SEAT BK CUSH HGE FIN (TITANIUM) (OUTBOARD, INNER) (16.674) |
CK109, 2 (06) (AM8, 83I) |
2007-2009 |
01 |
| 018 |
19121589 |
BELT KIT, R/SEAT (BKL SI) (EBONY) (BKL/BKL) |
CK1, 2 (06) (AM8, 19I, 223, 843) |
2007-2009 |
01 |
| 018 |
19121591 |
BELT KIT, R/SEAT (BKL SI) (CASHMERE) (BKL/BKL) |
CK1, 2 (06) (AM8, 31I, 33I, 394) |
2007-2009 |
01 |
| 018 |
19121592 |
BELT KIT, R/SEAT (BKL SI) (TITANIUM) (BKL/BKL) |
CK1, 2 (06) (AM8, 83I) |
2007-2009 |
01 |
| 019 |
15269764 |
FRAME, R/SEAT CUSH |
CK1, 2 (06) (AM8) (EXC HP2) |
2007-2009 |
01 |
| 020 |
15275890 |
LATCH, R/SEAT RSR (OUTBOARD) |
CK109, 2 (06) (AM8) |
2007-2009 |
01 |
| 021 |
25896455 |
LATCH, R/SEAT BK CUSH (OUTBOARD) |
CK1, 2 (06) (AM8) |
2007-2009 |
01 |
| 022 |
15279614 |
COVER, R/SEAT BK CUSH HGE FIN (INCLS 49) (EBONY) (OUTBOARD, OUTER) (16.674) |
CK109, 2 (06) (AM8, 19I, 84I) |
2009-2009 |
01 |
| 022 |
15279615 |
COVER, R/SEAT BK CUSH HGE FIN (INCLS 49) (CASHMERE) (OUTBOARD, OUTER) (16.674) |
CK109, 2 (06) (AM8, 31I, 33I, 39I) |
2007-2009 |
01 |
| 022 |
15279616 |
COVER, R/SEAT BK CUSH HGE FIN (INCLS 49) (TITANIUM) (OUTBOARD, OUTER) (16.674) |
CK109, 2 (06) (AM8, 83I) |
2007-2009 |
01 |
| 023 |
|
RETAINER, R/SEAT ADJR RLR (PART OF 24) |
|
2007-2009 |
|
| 024 |
15279414 |
HANDLE, R/SEAT RECL (INCLS 23) (EBONY) |
CK1, 2 (06) (19I, 84I) |
2009-2009 |
01 |
| 024 |
15279415 |
HANDLE, R/SEAT RECL (INCLS 23) (CASHMERE) |
CK1, 2 (06) (31I, 33I, 39I) |
2007-2009 |
01 |
| 024 |
15279416 |
HANDLE, R/SEAT RECL (INCLS 23) (TITANIUM) |
CK1, 2 (06) (83I) |
2007-2009 |
01 |
| 025 |
15275917 |
CABLE, R/SEAT LAT (INBOARD) (FLOOR LATCH) |
CK1, 2 (06) (AM8) |
2007-2009 |
01 |
| 026 |
15275916 |
CABLE, R/SEAT LAT (INBOARD) (SYNCH) |
CK1, 2 (06) (AM8) |
2007-2009 |
01 |
| 027 |
15275914 |
CABLE, R/SEAT LAT (OUTBOARD) (FLOOR LATCH) |
CK1, 2 (06) (AM8) |
2007-2009 |
01 |
| 028 |
15942228 |
CABLE, R/SEAT BK CUSH LAT |
CK1, 2 (06) (AM8, ARS) |
2007-2009 |
01 |
| 029 |
15279679 |
COVER, R/SEAT RSR FIN (EBONY) (REAR) |
CK109, 2 (06) (AM8, 19I, 84I) |
2009-2009 |
01 |
| 029 |
15279680 |
COVER, R/SEAT RSR FIN (CASHMERE) (REAR) |
CK109, 2 (06) (AM8, 31I, 33I, 39I) |
2007-2009 |
01 |
| 029 |
15279681 |
COVER, R/SEAT RSR FIN (TITANIUM) (REAR) |
CK109, 2 (06) (AM8, 83I) |
2007-2009 |
01 |
| 030 |
15269773 |
RISER, R/SEAT |
CK109, 2 (06) (AM8) |
2007-2009 |
01 |
| 031 |
|
RETAINER, R/SEAT FLR FIL T/PNL (PART OF 32) |
|
2007-2009 |
|
| 032 |
15824842 |
COVER, R/SEAT RSR FIN (INCLS 31) (EBONY) (FRONT) |
CK109, 2 (06) (AM8, 19I, 84I) |
2009-2009 |
01 |
| 032 |
15824843 |
COVER, R/SEAT RSR FIN (INCLS 31) (CASHMERE) (FRONT) |
CK109, 2 (06) (AM8, 31I, 33I, 39I) |
2007-2009 |
01 |
| 032 |
15824844 |
COVER, R/SEAT RSR FIN (INCLS 31) (TITANIUM) (FRONT) |
CK109, 2 (06) (AM8, 83I) |
2007-2009 |
01 |
| 033 |
15291599 |
PAD, R/SEAT CUSH |
CK1, 2 (06) (AM8) (EXC HP2) |
2007-2009 |
01 |
| 034 |
11571092 |
БОЛТ, R/SEAT HGE (M10X1.5X114) |
CK1, 2 |
2007-2009 |
02 |
| 036 |
15279654 |
PANEL, R/SEAT CUSH TR (EBONY) (16.716) |
CK109, 2 (06) (AM8, 19I) |
2009-2009 |
01 |
| 036 |
15279655 |
PANEL, R/SEAT CUSH TR (CASHMERE) (16.716) |
CK109, 2 (06) (AM8, 33I, 39I) |
2009-2009 |
01 |
| 036 |
15279656 |
PANEL, R/SEAT CUSH TR (TITANIUM) (16.716) |
CK109, 2 (06) (AM8, 83I) |
2007-2009 |
01 |
| 036 |
20789620 |
PANEL, R/SEAT CUSH TR (COCOA) (60% SIDE SHIELD OUTER) |
CK1 (06) (AM8, HP2, ULT, Z75, 415) |
2009-2009 |
01 |
| 036 |
20789621 |
PANEL, R/SEAT CUSH TR (COCOA) (60% O/B INNER) |
CK1 (06) (AM8, HP2, ULT, Z75, 415) |
2009-2009 |
01 |
| 036 |
20789622 |
PANEL, R/SEAT CUSH TR (COCOA) (60% LATCH COVER-TUB) |
CK1 (06) (AM8, HP2, ULT, Z75, 415) |
2009-2009 |
01 |
| 036 |
20789623 |
PANEL, R/SEAT CUSH TR (COCOA) (60% IB OUTER COVER) |
CK1 (06) (AM8, HP2, ULT, Z75, 415) |
2009-2009 |
01 |
| 036 |
20789624 |
PANEL, R/SEAT CUSH TR (COCOA) (60% I/B INNER) |
CK1 (06) (AM8, HP2, ULT, Z75, 415) |
2009-2009 |
01 |
| 036 |
20789625 |
PANEL, R/SEAT CUSH TR (COCOA) (60% HINGE COVER) |
CK1 (06) (AM8, HP2, ULT, Z75, 415) |
2009-2009 |
01 |
| 037 |
15786704 |
MODULE, R/SEAT HTR CONT (REQUIRES DEALER PROGRAMMING) (11.500) |
CK1, 2 (06) (EXC AL4) |
2007-2009 |
01 |
| 037 |
15786704 |
MODULE, R/SEAT HTR CONT (REQUIRES DEALER PROGRAMMING) (11.500) |
CK1, 2 (06) (EXC AM8) |
2007-2009 |
01 |
| 037 |
25862293 |
MODULE, R/SEAT HTR CONT (REQUIRES DEALER PROGRAMMING) (11.500) (SERV CMP OF HEATER PKGS) |
CK1, 2, 3 |
2007-2009 |
01 |
| 037 |
25886638 |
MODULE, R/SEAT HTR CONT |
CK1, 2 (06) (AM8) |
2007-2009 |
01 |
| 039 |
15930099 |
STRUT, R/SEAT |
CK1, 2 (06) (AM8) |
2007-2009 |
01 |
| 040 |
15275900 |
ПРУЖИНА, R/SEAT RECL (TUMBLE) |
CK1, 2 (06) (AM8) |
2007-2009 |
01 |
| 041 |
15275902 |
ПРУЖИНА, R/SEAT RECL (MANDREL) |
CK1, 2 (06) (AM8) |
2007-2009 |
01 |
| 042 |
11562380 |
BUSHING, R/SEAT HGE |
CK1, 2 (06) (AM8) |
2007-2009 |
08 |
| 043 |
15279664 |
COVER, R/SEAT HGE LWR FIN (EBONY) (PIVOT INBOARD) (16.674) |
CK109, 2 (06) (AM8, 19I) |
2009-2009 |
01 |
| 043 |
15279665 |
COVER, R/SEAT HGE LWR FIN (CASHMERE) (PIVOT INBOARD) (16.674) |
CK109, 2 (06) (AM8, 33I, 39I) |
2009-2009 |
01 |
| 043 |
15279666 |
COVER, R/SEAT HGE LWR FIN (TITANIUM) (PIVOT INBOARD) (16.674) |
CK109, 2 (06) (AM8, 83I) |
2007-2009 |
01 |
| 044 |
15269778 |
BRACKET, R/SEAT |
CK109, 2 (06) (AM8) |
2007-2009 |
01 |
| 045 |
11562381 |
БОЛТ, R/SEAT BK CUSH LAT PIV (M12X1.75X40) |
CK1, 2 (06) (AM8) |
2007-2009 |
02 |
| 046 |
15279669 |
COVER, R/SEAT HGE LWR FIN (EBONY) (PIVOT INBOARD) (16.674) |
CK109, 2 (06) (AM8, 19I) |
2009-2009 |
01 |
| 046 |
15279670 |
COVER, R/SEAT HGE LWR FIN (CASHMERE) (PIVOT INBOARD) (16.674) |
CK109, 2 (06) (AM8, 33I, 39I) |
2009-2009 |
01 |
| 046 |
15279671 |
COVER, R/SEAT HGE LWR FIN (TITANIUM) (PIVOT INBOARD) (16.674) |
CK109, 2 (06) (AM8, 83I) |
2007-2009 |
01 |
| 047 |
15291655 |
COVER, R/SEAT CUSH (CASHMERE) |
CK1 (06) (AM8, KA6, Y91, Z88, 394) (EXC KB6) |
2009-2009 |
01 |
| 047 |
15865529 |
COVER, R/SEAT CUSH (EBONY)
| CK1, 2 (06) (AM8, 193) (EXC HP2, KB6) |
2009-2009 |
01 |
|
| 047 |
15865530 |
COVER, R/SEAT CUSH (CASHMERE) |
CK1, 2 (06) (AM8, 333) (EXC HP2, KB6) |
2009-2009 |
01 |
| 047 |
15865531 |
COVER, R/SEAT CUSH (TITANIUM) |
CK1, 2 (06) (AM8, 833) (EXC HP2, KB6) |
2009-2009 |
01 |
| 047 |
15914206 |
COVER, R/SEAT CUSH (EBONY) |
CK1, 2 (06) (AM8, 19C, 5T5) |
2009-2009 |
01 |
| 047 |
20758115 |
COVER, R/SEAT CUSH (EBONY) (USED ON VEHICLES BUILT 12/01/08 AFTER) (1ST DES SEE 25970995) |
CK1, 2 (06) (AM8, 19C) (EXC 5T5) (2ND DES) |
2009-2009 |
01 |
| 047 |
20758116 |
COVER, R/SEAT CUSH (CASHMERE) (USED ON VEHICLES BUILT 12/01/08 AFTER) (1ST DES SEE 25970996) |
CK1, 2 (06) (AM8, 33C) (EXC 5T5) (2ND DES) |
2009-2009 |
01 |
| 047 |
20758117 |
COVER, R/SEAT CUSH (TITANIUM) (USED ON VEHICLES BUILT 12/01/08 AFTER) (1ST DES SEE 25970997) |
CK1, 2 (06) (AM8, 83C) (EXC 5T5) (2ND DES) |
2009-2009 |
01 |
| 047 |
25899567 |
COVER, R/SEAT CUSH (EBONY) |
CK1 (06) (AM8, KA6, Z75, 194) (EXC HP2) |
2009-2009 |
01 |
| 047 |
25908032 |
COVER, R/SEAT CUSH (CASHMERE) |
CK1 (06) (AM8, KA6, Z75, 394) |
2009-2009 |
01 |
| 047 |
25931390 |
COVER, R/SEAT CUSH (EBONY) |
CK1, 2 (06) (AM8, KB6, 196) (EXC HP2) |
2009-2009 |
01 |
| 047 |
25949167 |
COVER, R/SEAT CUSH (EBONY) |
CK1 (06) (AM8, HP2, KA6, Y91, Z88, 197) |
2009-2009 |
01 |
| 047 |
25949167 |
COVER, R/SEAT CUSH (EBONY) |
CK1 (06) (AM8, HP2, KA6, Z75, 194) |
2009-2009 |
01 |
| 047 |
25949168 |
COVER, R/SEAT CUSH (CASHMERE) |
CK1 (06) (AM8, HP2, KA6, Y91, Z88, 397) |
2009-2009 |
01 |
| 047 |
25949168 |
COVER, R/SEAT CUSH (CASHMERE) |
CK1 (06) (AM8, HP2, KA6, Z75, 394) |
2009-2009 |
01 |
| 047 |
25970995 |
COVER, R/SEAT CUSH (EBONY) (USED ON VEHICLES BUILT 11/30/08 PRIOR) (2ND DES SEE 20758115) |
CK1, 2 (06) (AM8, 19C) (EXC 5T5) (1ST DES) |
2009-2009 |
01 |
| 047 |
25970996 |
COVER, R/SEAT CUSH (CASHMERE) (USED ON VEHICLES BUILT 11/30/08 PRIOR) (2ND DES SEE 20758116) |
CK1, 2 (06) (AM8, 33C) (1ST DES) |
2009-2009 |
01 |
| 047 |
25970997 |
COVER, R/SEAT CUSH (TITANIUM) (USED ON VEHICLES BUILT 11/30/08 PRIOR) (2ND DES SEE 20758117) |
CK1, 2 (06) (AM8, 83C) (1ST DES) |
2009-2009 |
01 |
| 048 |
15279634 |
COVER, R/SEAT BK CUSH HGE FIN (EBONY) (INBOARD, OUTER) (16.674) |
CK109, 2 (06) (AM8, 19I, 84I) |
2009-2009 |
01 |
| 048 |
15279635 |
COVER, R/SEAT BK CUSH HGE FIN (CASHMERE) (INBOARD, OUTER) (16.674) |
CK109, 2 (06) (AM8, 31I, 33I, 39I) |
2007-2009 |
01 |
| 048 |
15279636 |
COVER, R/SEAT BK CUSH HGE FIN (TITANIUM) (INBOARD, OUTER) (16.674) |
CK109, 2 (06) (AM8, 83I) |
2007-2009 |
01 |
| 049 |
|
RETAINER, R/SEAT FLR FIL T/PNL (PART OF 22) |
|
2007-2009 |
|
| 050 |
11562376 |
SCREW-PAN HD, M12X1.75X55, 42 THD, 27 OD, 10.9, S424, W/ADH GM6175M (R/SEAT LAT) |
|
2007-2009 |
02 |
| 051 |
25896456 |
LATCH, R/SEAT BK CUSH (INBOARD) |
CK1, 2 (06) (AM8) |
2007-2009 |
01 |
| 052 |
11562377 |
BOLT-HFH, M10X1.5X55, 43.45 THD, 22.3 OD, 10.9, GMW3359, W/ADH GM6175M (R/SEAT LAT) |
|
2007-2009 |
02 |
| 053 |
15279464 |
KNOB, R/SEAT LAT (EBONY) (USED IN PLACE OF ALL COLORS) (16.716) |
CK1, 2, 3 |
2007-2009 |
02 |
| 054 |
11562384 |
ГАЙКА, HFH, M4X.7 THD, 4.75 THK, 10.5 OD, GM510M (9)STL, GM4435M-CODE A (R/SEAT FLR FIL T/PNL) |
|
2007-2009 |
02 |
| 055 |
15279644 |
COVER, R/SEAT BK CUSH HGE FIN (EBONY) (INBOARD, INNER) (16.674) |
CK109, 2 (06) (AM8, 19I, 22I, 84I) |
2007-2009 |
01 |
| 055 |
15279645 |
COVER, R/SEAT BK CUSH HGE FIN (CASHMERE) (INBOARD, INNER) (16.674) |
CK109 (06) (AM8, 31I, 33I, 39I) |
2007-2009 |
01 |
| 055 |
15279646 |
COVER, R/SEAT BK CUSH HGE FIN (TITANIUM) (INBOARD, INNER) (16.674) |
CK109, 2 (06) (AM8, 83I) |
2007-2009 |
01 |
| 056 |
15865490 |
ARMREST, R/SEAT (CASHMERE) (USED ON VEHICLES BUILT 11/30/08 PRIOR) (2ND DES SEE 20758006) |
CK1, 2 (06) (AM8, 31C, 33C) (1ST DES) |
2009-2009 |
01 |
| 056 |
15865493 |
ARMREST, R/SEAT (EBONY) |
CK1, 2 (06) (AM8, 193) |
2009-2009 |
01 |
| 056 |
15865493 |
ARMREST, R/SEAT (EBONY) |
CK1, 2 (06) (AM8, 196, 846) |
2009-2009 |
01 |
| 056 |
15865494 |
ARMREST, R/SEAT (CASHMERE) |
CK1, 2 (06) (AM8, 333, 336) |
2009-2009 |
01 |
| 056 |
15865495 |
ARMREST, R/SEAT (TITANIUM) |
CK1, 2 (06) (AM8, 833, 836) |
2007-2009 |
01 |
| 056 |
20758005 |
ARMREST, R/SEAT (EBONY) (USED ON VEHICLES BUILT 12/01/08 AFTER) (1ST DES SEE 25863535) |
CK1, 2 (06) (AM8, 19C) (2ND DES) |
2009-2009 |
01 |
| 056 |
20758006 |
ARMREST, R/SEAT (CASHMERE) (USED ON VEHICLES BUILT 12/01/08 AFTER) (1ST DES SEE 15865490) |
CK1, 2 (06) (AM8, 31C, 33C) (2ND DES) |
2009-2009 |
01 |
| 056 |
20758007 |
ARMREST, R/SEAT (TITANIUM) |
CK1, 2 (06) (AM8, 83C) |
2009-2009 |
01 |
| 056 |
25863535 |
ARMREST, R/SEAT (EBONY) (USED ON VEHICLES BUILT 11/30/08 PRIOR) (2ND DES SEE 20758005) |
CK1, 2 (06) (AM8, 19C) (1ST DES) |
2009-2009 |
01 |
| 056 |
25908030 |
ARMREST, R/SEAT (CASHMERE) |
CK1 (06) (AM8, KA6, Z75, 394) (EXC HP2) |
2008-2009 |
01 |
| 057 |
15275891 |
LATCH, R/SEAT RSR (INBOARD) |
CK109, 2 (06) |
2007-2009 |
01 |
| 058 |
11562386 |
БОЛТ, R/SEAT A/RST (M8X1.25X24) (8.977) |
CK1, 2 (06) (AM8) |
2007-2009 |
04 |
| 059 |
19151104 |
BELT KIT, R/SEAT CTR (RETR SI) (EBONY) |
CK1, 2 (06) (AM8, 19I) |
2009-2009 |
01 |
| 059 |
19151105 |
BELT KIT, R/SEAT CTR (RETR SI) (CASHMERE) |
CK1, 2 (06) (AM8, 33I, 39I) |
2009-2009 |
01 |
| 060 |
15824751 |
ACTUATOR, R/SEAT RECL (INCLS CABLE)
| CK1, 2 (06) (AM8, ARS) |
2007-2009 |
01 |
|
