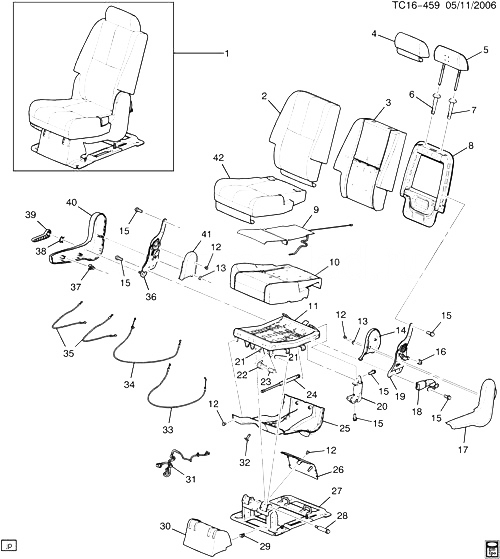

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15843778 |
SEAT, RR (ONLY AVAILABLE DURING CURRENT MODEL YEAR) (EBONY) |
K109 (06) (AM8, KA6, Z75, 194) (EXC ARS) |
2007-2009 |
01 |
| 001 |
15843871 |
SEAT, RR (ONLY AVAILABLE DURING CURRENT MODEL YEAR) (EBONY) |
CK109 (06) (AM8, KA6, Y91, Z88, 194) (EXC ARS, KB6) |
2009-2009 |
01 |
| 001 |
15843872 |
SEAT, RR (ONLY AVAILABLE DURING CURRENT MODEL YEAR) (CASHMERE) |
CK109 (06) (AM8, KA6, Y91, Z88, 394) (EXC ARS, KB6) |
2009-2009 |
01 |
| 001 |
15914191 |
SEAT, RR (ONLY AVAILABLE DURING CURRENT MODEL YEAR) (EBONY) |
CK109, 2 (06) (AM8, 19V) |
2007-2009 |
01 |
| 001 |
15914191 |
SEAT, RR (ONLY AVAILABLE DURING CURRENT MODEL YEAR) (EBONY) |
CK109, 2 (06) (AM8, 19C, 5T5) |
2009-2009 |
01 |
| 001 |
20795286 |
SEAT, RR (ONLY AVAILABLE DURING CURRENT MODEL YEAR) (EBONY) |
CK1 (06) (AM8, AX4, HP2, KA6, Z75, 194) (EXPORT) |
2009-2009 |
01 |
| 001 |
20795287 |
SEAT, RR (ONLY AVAILABLE DURING CURRENT MODEL YEAR) (CASHMERE) |
CK1 (06) (AM8, AX4, HP2, KA6, Z75, 394) (EXPORT) |
2009-2009 |
01 |
| 001 |
25908004 |
SEAT, RR (ONLY AVAILABLE DURING CURRENT MODEL YEAR) (CASHMERE) |
CK109 (06) (AM8, KA6, Z75, 394) (EXC ARS) |
2009-2009 |
01 |
| 001 |
25949155 |
SEAT, RR (ONLY AVAILABLE DURING CURRENT MODEL YEAR) (EBONY) |
CK1 (06) (AM8, HP2, KA6, Z75, 194) (EXC AX4) |
2008-2009 |
01 |
| 001 |
25949156 |
SEAT, RR (ONLY AVAILABLE DURING CURRENT MODEL YEAR) (CASHMERE) |
CK1 (06) (AM8, HP2, KA6, Z75, 394) (EXC AX4) |
2008-2009 |
01 |
| 001 |
25970967 |
SEAT, RR (ONLY AVAILABLE DURING CURRENT MODEL YEAR) (EBONY) |
CK109, 2 (06) (AM8, 19C) (EXC 5T5) |
2009-2009 |
01 |
| 001 |
25970968 |
SEAT, RR (ONLY AVAILABLE DURING CURRENT MODEL YEAR) (CASHMERE) |
CK109, 2 (06) (AM8, 33C) |
2009-2009 |
01 |
| 001 |
25970969 |
SEAT, RR (ONLY AVAILABLE DURING CURRENT MODEL YEAR) (TITANIUM) |
CK109, 2 (06) (AM8, 83C) |
2009-2009 |
01 |
| 002 |
15291651 |
COVER, R/SEAT BK CUSH (EBONY) |
CK1 (06) (AM8, KA6, Y91, Z88, 194) (EXC KB6) |
2009-2009 |
01 |
| 002 |
15291652 |
COVER, R/SEAT BK CUSH (CASHMERE) |
CK1 (06) (AM8, KA6, Y91, Z88, 394) (EXC KB6) |
2009-2009 |
01 |
| 002 |
15865510 |
COVER, R/SEAT BK CUSH (CASHMERE) |
CK1, 2 (06) (AM8, 31D, 33D) |
2007-2009 |
01 |
| 002 |
15865525 |
COVER, R/SEAT BK CUSH (EBONY) |
CK1, 2 (06) (AM8, 193) (EXC KB6) |
2009-2009 |
01 |
| 002 |
15865526 |
COVER, R/SEAT BK CUSH (CASHMERE) |
CK1, 2 (06) (AM8, 333) (EXC KB6) |
2009-2009 |
01 |
| 002 |
15865527 |
COVER, R/SEAT BK CUSH (TITANIUM) |
CK1, 2 (06) (AM8, 833) (EXC KB6) |
2009-2009 |
01 |
| 002 |
15914204 |
COVER, R/SEAT BK CUSH (EBONY) |
CK1, 2 (06) (AM8, 19D, 5T5) |
2007-2009 |
01 |
| 002 |
15914204 |
COVER, R/SEAT BK CUSH (EBONY) |
CK1, 2 (06) (AM8, 19V) |
2007-2009 |
01 |
| 002 |
15914204 |
COVER, R/SEAT BK CUSH (EBONY) |
CK1, 2 (06) (AM8, 19C, 5T5) |
2009-2009 |
01 |
| 002 |
20758111 |
COVER, R/SEAT BK CUSH (EBONY) (USED ON VEHICLES BUILT 12/01/08 AFTER) (1ST DES SEE 25970991) |
CK1, 2 (06) (AM8, 19C) (EXC 5T5) (2ND DES) |
2009-2009 |
01 |
| 002 |
20758112 |
COVER, R/SEAT BK CUSH (CASHMERE) (USED ON VEHICLES BUILT 12/01/08 AFTER) (1ST DES SEE 25970992) |
CK1, 2 (06) (AM8, 33C) (2ND DES) |
2009-2009 |
01 |
| 002 |
20758113 |
COVER, R/SEAT BK CUSH (TITANIUM) (USED ON VEHICLES BUILT 12/01/08 AFTER) (1ST DES SEE 25970993) |
CK1, 2 (06) (AM8, 83C) (2ND DES) |
2009-2009 |
01 |
| 002 |
25863599 |
COVER, R/SEAT BK CUSH (TITANIUM) |
CK1, 2 (06) (AM8, 83D) |
2007-2009 |
01 |
| 002 |
25908033 |
COVER, R/SEAT BK CUSH (CASHMERE) |
CK1 (06) (AM8, KA6, Y91, Z88, 397) (EXC HP2) |
2009-2009 |
01 |
| 002 |
25908033 |
COVER, R/SEAT BK CUSH (CASHMERE) |
CK1 (06) (AM8, KA6, Z75, 394) (EXC HP2) |
2009-2009 |
01 |
| 002 |
25931397 |
COVER, R/SEAT BK CUSH (CASHMERE) |
CK1, 2 (06) (AM8, KB6, 336) (EXC HP2) |
2009-2009 |
01 |
| 002 |
25970991 |
COVER, R/SEAT BK CUSH (EBONY) (USED ON VEHICLES BUILT 11/30/08 PRIOR) (2ND DES SEE 20758111) |
CK1, 2 (06) (AM8, 19C) (EXC 5T5) (1ST DES) |
2009-2009 |
01 |
| 002 |
25970992 |
COVER, R/SEAT BK CUSH (CASHMERE) (USED ON VEHICLES BUILT 11/30/08 PRIOR) (2ND DES SEE 20758112) |
CK1, 2 (06) (AM8, 33C) (1ST DES) |
2009-2009 |
01 |
| 002 |
25970993 |
COVER, R/SEAT BK CUSH (EBONY) (USED ON VEHICLES BUILT 11/30/08 PRIOR) (2ND DES SEE 20758113) |
CK1, 2 (06) (AM8, 83C) (1ST DES) |
2009-2009 |
01 |
| 003 |
15291598 |
PAD, R/SEAT BK CUSH |
CK1, 2 (06) (AM8) |
2007-2009 |
01 |
| 004 |
|
COVER, R/SEAT H/RST SUPT (PART OF 5) |
|
2007-2009 |
|
| 005 |
15824672 |
RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) |
CK1 (06) (AM8, 194) |
2007-2009 |
02 |
| 005 |
15824672 |
RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) |
CK1 (06) (AM8, 197) |
2009-2009 |
02 |
| 005 |
15904736 |
RESTRAINT, R/SEAT HD (INCLS 4) (TITANIUM) (USED ON VEHICLES BUILT 11/30/08 PRIOR) (2ND DES SEE 20758019) |
CK109, 2 (06) (AM8, 83C) (1ST DES) |
2009-2009 |
02 |
| 005 |
15904738 |
RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) |
CK109, 2 (06) (AM8, 193) |
2009-2009 |
02 |
| 005 |
15904738 |
RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) |
CK109, 2 (06) (AM8, 196, 226, 846) |
2009-2009 |
02 |
| 005 |
15904739 |
RESTRAINT, R/SEAT HD (INCLS 4) (CASHMERE) |
CK109, 2 (06) (AM8, 316, 336) |
2009-2009 |
02 |
| 005 |
15904739 |
RESTRAINT, R/SEAT HD (INCLS 4) (CASHMERE) |
CK109, 2 (06) (AM8, 333) |
2009-2009 |
02 |
| 005 |
20758017 |
RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) (USED ON VEHICLES BUILT 12/01/08 AFTER) (1ST DES SEE 25863778) |
CK109 (06) (AM8, 19C) (2ND DES) |
2009-2009 |
02 |
| 005 |
20758017 |
RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) (USED ON VEHICLES BUILT 12/01/08 AFTER) (1ST DES SEE 25863778) |
CK109 (06) (AM8, 19V) (2ND DES) |
2009-2009 |
02 |
| 005 |
20758018 |
RESTRAINT, R/SEAT HD (INCLS 4) (CASHMERE) |
CK109 (06) (AM8, 33C) |
2009-2009 |
02 |
| 005 |
20758019 |
RESTRAINT, R/SEAT HD (INCLS 4) (TITANIUM) (USED ON VEHICLES BUILT 12/01/08 AFTER) (1ST DES SEE 15904736) |
CK109 (06) (AM8, 83C) (2ND DES) |
2009-2009 |
02 |
| 005 |
25863778 |
RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) (USED ON VEHICLES BUILT 11/30/08 PRIOR) (2ND DES SEE 20758017) |
CK109 (06) (AM8, 19C) (1ST DES) |
2009-2009 |
02 |
| 005 |
25863778 |
RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) (USED ON VEHICLES BUILT 11/30/08 PRIOR) (2ND DES SEE 20758017) |
CK109 (06) (AM8, 19V) (1ST DES) |
2009-2009 |
02 |
| 005 |
25928791 |
RESTRAINT, R/SEAT HD (INCLS 4) (CASHMERE) |
CK1 (06) (AM8, 394) |
2007-2009 |
02 |
| 005 |
25928791 |
RESTRAINT, R/SEAT HD (INCLS 4) (CASHMERE) |
CK1 (06) (AM8, 397) |
2009-2009 |
02 |
| 006 |
15279347 |
GUIDE, R/SEAT H/RST (EBONY) (W/BUTTON) |
CK1, 2 (06) (19I, 22I, 84I) |
2007-2009 |
02 |
| 006 |
15279348 |
GUIDE, R/SEAT H/RST (CASHMERE) (W/BUTTON) |
CK1, 2 (06) (31I, 33I, 39I) |
2007-2009 |
02 |
| 006 |
15279349 |
GUIDE, R/SEAT H/RST (TITANIUM) (W/BUTTON) |
CK1, 2 (06) (83I) |
2007-2009 |
02 |
| 007 |
15279351 |
GUIDE, R/SEAT H/RST (EBONY) (W/O BUTTON) |
CK1, 2 (06) (19I, 22I, 84I) |
2007-2009 |
02 |
| 007 |
15279352 |
GUIDE, R/SEAT H/RST (CASHMERE) (W/O BUTTON) |
CK1, 2 (06) (31I, 33I, 39I) |
2007-2009 |
02 |
| 007 |
15279353 |
GUIDE, R/SEAT H/RST (TITANIUM) (W/O BUTTON) |
CK1, 2 (06) (83I) |
2007-2009 |
02 |
| 007 |
15279441 |
GUIDE, R/SEAT H/RST (CASHMERE) (W/O BUTTON) |
CK109 (06) (AM8, KA6, Z75, 394) (EXC ARS) |
2009-2009 |
01 |
| 008 |
15269763 |
FRAME, R/SEAT BK CUSH |
CK1, 2 (06) (AM8) |
2007-2009 |
01 |
| 010 |
15291600 |
PAD, R/SEAT CUSH |
CK1, 2 (06) (AM8) (EXC HP2) |
2007-2009 |
01 |
| 011 |
15269765 |
FRAME, R/SEAT CUSH |
CK1, 2 (06) (AM8) (EXC HP2) |
2007-2009 |
01 |
| 012 |
11570116 |
SCREW -PAN HD, M6X1X10, 10 THD, 12 OD, STL SAE J1237, S424, TAPTITE ITE (R/SEAT LAT FIN CVR) (8.913) |
|
2007-2009 |
07 |
| 013 |
11562384 |
ГАЙКА, HFH, M4X.7 THD, 4.75 THK, 10.5 OD, GM510M (9)STL, GM4435M-CODE A (R/SEAT FLR FIL T/PNL) |
|
2007-2009 |
02 |
| 014 |
15279649 |
COVER, R/SEAT BK CUSH HGE FIN (EBONY) (INBOARD, INNER) (16.674) |
CK109, 2 (06) (AM8, 19I, 22I, 84I) |
2007-2009 |
01 |
| 014 |
15279650 |
COVER, R/SEAT BK CUSH HGE FIN (CASHMERE) (INBOARD, INNER) (16.674) |
CK109 (06) (AM8, 31I, 33I, 39I) |
2007-2009 |
01 |
| 014 |
15279651 |
COVER, R/SEAT BK CUSH HGE FIN (TITANIUM) (INBOARD, INNER) (16.674) |
CK109, 2 (06) (AM8, 83I) |
2007-2009 |
01 |
| 015 |
11562378 |
BOLT-HFH, M10X1.5X30, 18 THD, 22.3 OD, 10.9, GMW3359, W/ADH GM6175M (R/SEAT LAT) |
|
2007-2009 |
12 |
| 016 |
15279464 |
KNOB, R/SEAT LAT (EBONY) (USED IN PLACE OF ALL COLORS) (16.716) |
CK1, 2, 3 |
2007-2009 |
02 |
| 017 |
15279639 |
COVER, R/SEAT BK CUSH HGE FIN (INCLS 37) (EBONY) (INBOARD, OUTER) |
CK109, 2 (06) (AM8, 19I, 22I, 84I) |
2007-2009 |
01 |
| 017 |
15279640 |
COVER, R/SEAT BK CUSH HGE FIN (INCLS 37) (CASHMERE) (INBOARD, OUTER) (16.674) |
CK109, 2 (06) (AM8, 31I, 33I, 39I) |
2007-2009 |
01 |
| 017 |
15279641 |
COVER, R/SEAT BK CUSH HGE FIN (INCLS 37) (TITANIUM) (INBOARD, OUTER) (16.674) |
CK109, 2 (06) (AM8, 83I) |
2007-2009 |
01 |
| 018 |
19121593 |
BELT KIT, R/SEAT (BKL SI) (SINGLE BKL) (EBONY)
| CK1, 2 (06) (AM8, 19I) |
2009-2009 |
01 |
|
| 018 |
19121595 |
BELT KIT, R/SEAT (BKL SI) (CASHMERE) |
CK1, 2 (06) (AM8, 33I, 39I) |
2009-2009 |
01 |
| 018 |
19121596 |
BELT KIT, R/SEAT (BKL SI) (SINGLE BKL) (TITANIUM) |
CK1, 2 (06) (AM8, 83I) |
2007-2009 |
01 |
| 020 |
15275892 |
LATCH, R/SEAT RSR (RH SEAT I/B O/B) |
CK109, 2 (06) (AM8) |
2007-2009 |
02 |
| 021 |
11562380 |
BUSHING, R/SEAT HGE |
CK1, 2 (06) (AM8) |
2007-2009 |
08 |
| 022 |
15275901 |
ПРУЖИНА, R/SEAT RECL (TUMBLE) |
CK1, 2 (06) (AM8) |
2007-2009 |
02 |
| 023 |
15275903 |
ПРУЖИНА, R/SEAT RECL (MANDREL) |
CK1, 2 (06) (AM8) (EXC HP2) |
2007-2009 |
02 |
| 024 |
15275905 |
STRUT, R/SEAT |
CK1, 2 (06) (AM8) |
2007-2009 |
01 |
| 024 |
15930099 |
STRUT, R/SEAT |
CK1, 2 (06) (AM8) |
2007-2009 |
01 |
| 025 |
15279659 |
PANEL, R/SEAT CUSH TR (EBONY) (16.716) |
CK109, 2 (06) (AM8, 19I) |
2009-2009 |
01 |
| 025 |
15279660 |
PANEL, R/SEAT CUSH TR (CASHMERE) (16.716) |
CK109, 2 (06) (AM8, 33I, 39I) |
2009-2009 |
01 |
| 025 |
15279661 |
PANEL, R/SEAT CUSH TR (TITANIUM) (16.716) |
CK109, 2 (06) (AM8, 83I) |
2007-2009 |
01 |
| 025 |
20789636 |
PANEL, R/SEAT CUSH TR (COCOA) (40% SIDE SHIELD OUTER) |
CK1 (06) (AM8, HP2, ULT, Z75, 415) |
2009-2009 |
01 |
| 025 |
20789637 |
PANEL, R/SEAT CUSH TR (COCOA) (40% O/B INNER) |
CK1 (06) (AM8, HP2, ULT, Z75, 415) |
2009-2009 |
01 |
| 025 |
20789638 |
PANEL, R/SEAT CUSH TR (COCOA) (40% LATCH COVER-TUB) |
CK1 (06) (AM8, HP2, ULT, Z75, 415) |
2009-2009 |
01 |
| 025 |
20789639 |
PANEL, R/SEAT CUSH TR (COCOA) (40% I/B INNER COVER) |
CK1 (06) (AM8, HP2, ULT, Z75, 415) |
2009-2009 |
01 |
| 025 |
20789640 |
PANEL, R/SEAT CUSH TR (COCOA) (40% I/B INNER) |
CK1 (06) (AM8, HP2, ULT, Z75, 415) |
2009-2009 |
01 |
| 025 |
20789641 |
PANEL, R/SEAT CUSH TR (COCOA) (40% HINGE COVER) |
CK1 (06) (AM8, HP2, ULT, Z75, 415) |
2009-2009 |
01 |
| 026 |
15279684 |
COVER, R/SEAT RSR FIN (EBONY) (REAR) |
CK109, 2 (06) (AM8, 19I, 22I, 84I) |
2007-2009 |
01 |
| 026 |
15279685 |
COVER, R/SEAT RSR FIN (CASHMERE) (REAR) |
CK109, 2 (06) (AM8, 31I, 33I, 39I) |
2007-2009 |
01 |
| 026 |
15279686 |
COVER, R/SEAT RSR FIN (TITANIUM) (REAR) |
CK109, 2 (06) (AM8, 83I) |
2007-2009 |
01 |
| 027 |
15269774 |
RISER, R/SEAT |
CK109, 2 (06) (AM8) |
2007-2009 |
01 |
| 028 |
11562379 |
БОЛТ, R/SEAT HGE (M10X1.5X92) |
CK1, 2 |
2007-2009 |
02 |
| 029 |
|
RETAINER, R/SEAT FLR FIL T/PNL (PART OF 30) |
|
2007-2009 |
|
| 030 |
15279674 |
COVER, R/SEAT RSR FIN (INCLS 29) (EBONY) (FRONT) |
CK109, 2 (06) (AM8, 19I, 22I, 84I) |
2007-2009 |
01 |
| 030 |
15279675 |
COVER, R/SEAT RSR FIN (INCLS 29) (CASHMERE) (FRONT) |
CK109, 2 (06) (AM8, 31I, 33I, 39I) |
2007-2009 |
01 |
| 030 |
15279676 |
COVER, R/SEAT RSR FIN (INCLS 29) (TITANIUM) (FRONT) |
CK109, 2 (06) (AM8, 83I) |
2007-2009 |
01 |
| 031 |
15843764 |
HARNESS, R/SEAT HTR |
CK1, 2 (06) (EXC ARS, KB6) |
2007-2009 |
01 |
| 031 |
25949201 |
HARNESS, R/SEAT HTR |
CK1 (06) (AM8, HP2, KA6, Z75) |
2009-2009 |
01 |
| 032 |
15279406 |
PIN, R/SEAT H/RST ADJ ROD LAT (EBONY) |
CK1, 2 (06) (AM8, 19I) |
2009-2009 |
02 |
| 032 |
15279407 |
PIN, R/SEAT H/RST ADJ ROD LAT (CASHMERE) |
CK1, 2 (06) (AM8, 33I, 39I) |
2009-2009 |
02 |
| 032 |
15279408 |
PIN, R/SEAT H/RST ADJ ROD LAT (TITANIUM) |
CK1, 2 (06) (AM8, 83I) |
2007-2009 |
02 |
| 033 |
15275913 |
CABLE, R/SEAT BK CUSH LAT |
CK1, 2 (06) (AM8) (EXC ARS, HP2) |
2007-2009 |
01 |
| 034 |
15275915 |
CABLE, R/SEAT LAT (INBOARD) (SYNCH) |
CK1, 2 (06) (AM8) (EXC HP2) |
2007-2009 |
01 |
| 035 |
15275914 |
CABLE, R/SEAT LAT (OUTBOARD) (FLOOR LATCH) |
CK1, 2 (06) (AM8) (EXC HP2) |
2007-2009 |
02 |
| 036 |
25896457 |
LATCH, R/SEAT BK CUSH (OUTBOARD) |
CK1, 2 (06) (AM8) (EXC HP2) |
2007-2009 |
01 |
| 037 |
|
RETAINER, R/SEAT FLR FIL T/PNL (PART OF 17, 40) |
|
2007-2009 |
|
| 038 |
|
RETAINER, R/SEAT ADJR RLR (PART OF 39) |
|
2007-2009 |
|
| 039 |
15279419 |
HANDLE, R/SEAT RECL (INCLS 38) (EBONY) |
CK1, 2 (06) (19I, 22I, 84I) |
2007-2009 |
01 |
| 039 |
15279420 |
HANDLE, R/SEAT RECL (INCLS 38) (CASHMERE) |
CK1, 2 (06) (31I, 33I, 39I) |
2007-2009 |
01 |
| 039 |
15279429 |
HANDLE, R/SEAT RECL (INCLS 38) (TITANIUM) |
CK1, 2 (06) (83I) |
2007-2009 |
01 |
| 040 |
15279619 |
COVER, R/SEAT BK CUSH HGE FIN (INCLS 37) (EBONY) (OUTBOARD, OUTER) (16.674) |
CK109, 2 (06) (AM8, 19I, 22I, 84I) |
2007-2009 |
01 |
| 040 |
15279620 |
COVER, R/SEAT BK CUSH HGE FIN (INCLS 37) (CASHMERE) (OUTBOARD, OUTER) (16.674) |
CK109, 2 (06) (AM8, 31I, 33I, 39I) |
2007-2009 |
01 |
| 040 |
15279621 |
COVER, R/SEAT BK CUSH HGE FIN (INCLS 37) (TITANIUM) (OUTBOARD, OUTER) (16.674) |
CK109, 2 (06) (AM8, 83I) |
2007-2009 |
01 |
| 040 |
15279622 |
COVER, R/SEAT BK CUSH HGE FIN (INCLS 37) (CASHMERE) (OUTBOARD, OUTER) (16.674) |
CK109, 2 (06) (AM8, 30I) |
2007-2009 |
01 |
| 041 |
15279629 |
COVER, R/SEAT BK CUSH HGE FIN (EBONY) (OUTBOARD, INNER) (16.674) |
CK109, 2 (06) (AM8, 19I, 22I, 84I) |
2007-2009 |
01 |
| 041 |
15279630 |
COVER, R/SEAT BK CUSH HGE FIN (CASHMERE) (OUTBOARD, INNER) (16.674) |
CK109, 2 (06) (AM8, 31I, 33I, 39I) |
2007-2009 |
01 |
| 041 |
15279631 |
COVER, R/SEAT BK CUSH HGE FIN (TITANIUM) (OUTBOARD, INNER) (16.674) |
CK109, 2 (06) (AM8, 83I) |
2007-2009 |
01 |
| 041 |
15279632 |
COVER, R/SEAT BK CUSH HGE FIN (CASHMERE) (OUTBOARD, INNER) (16.674) |
CK109, 2 (06) (AM8, 30I) |
2007-2009 |
01 |
| 042 |
15291658 |
COVER, R/SEAT CUSH (CASHMERE) |
CK1 (06) (AM8, KA6, Y91, Z88, 394) (EXC KB6) |
2009-2009 |
01 |
| 042 |
15865518 |
COVER, R/SEAT CUSH (CASHMERE) |
CK1, 2 (06) (AM8, 31D, 33D) |
2007-2009 |
01 |
| 042 |
15865714 |
COVER, R/SEAT CUSH (EBONY) |
CK1, 2 (06) (AM8, 193) (EXC HP2, KB6) |
2009-2009 |
01 |
| 042 |
15865715 |
COVER, R/SEAT CUSH (CASHMERE) |
CK1, 2 (06) (AM8, 333) (EXC HP2, KB6) |
2009-2009 |
01 |
| 042 |
15865716 |
COVER, R/SEAT CUSH (TITANIUM) |
CK1, 2 (06) (AM8, 833) (EXC HP2, KB6) |
2009-2009 |
01 |
| 042 |
15914208 |
COVER, R/SEAT CUSH (EBONY) |
CK1, 2 (06) (AM8, 19D, 5T5) |
2007-2009 |
01 |
| 042 |
15914208 |
COVER, R/SEAT CUSH (EBONY) |
CK1, 2 (06) (AM8, 19V) |
2007-2009 |
01 |
| 042 |
15914208 |
COVER, R/SEAT CUSH (EBONY) |
CK1, 2 (06) (AM8, 19C, 5T5) |
2009-2009 |
01 |
| 042 |
20758119 |
COVER, R/SEAT CUSH (EBONY) (USED ON VEHICLES BUILT 12/01/08 AFTER) (1ST DES SEE 25970999) |
CK1, 2 (06) (AM8, 19C) (EXC 5T5) (2ND DES) |
2009-2009 |
01 |
| 042 |
20758120 |
COVER, R/SEAT CUSH (CASHMERE) (USED ON VEHICLES BUILT 12/01/08 AFTER) (1ST DES SEE 25971000) |
CK1, 2 (06) (AM8, 33C) (EXC 5T5) (2ND DES) |
2009-2009 |
01 |
| 042 |
20758121 |
COVER, R/SEAT CUSH (TITANIUM) (USED ON VEHICLES BUILT 12/01/08 AFTER) (1ST DES SEE 25971001) |
CK1, 2 (06) (AM8, 83C) (EXC 5T5) (2ND DES) |
2009-2009 |
01 |
| 042 |
25908034 |
COVER, R/SEAT CUSH (CASHMERE) |
CK1 (06) (AM8, KA6, Z75, 394) |
2009-2009 |
01 |
| 042 |
25931403 |
COVER, R/SEAT CUSH (CASHMERE) |
CK1, 2 (06) (AM8, KB6, 336) |
2009-2009 |
01 |
| 042 |
25949198 |
COVER, R/SEAT CUSH (EBONY) |
CK1 (06) (AM8, HP2, KA6, Y91, Z88, 197) |
2009-2009 |
01 |
| 042 |
25949198 |
COVER, R/SEAT CUSH (EBONY) |
CK1 (06) (AM8, HP2, KA6, Z75, 194) |
2009-2009 |
01 |
| 042 |
25949199 |
COVER, R/SEAT CUSH (CASHMERE) |
CK1 (06) (AM8, HP2, KA6, Y91, Z88, 397) |
2009-2009 |
01 |
| 042 |
25949199 |
COVER, R/SEAT CUSH (CASHMERE) |
CK1 (06) (AM8, HP2, KA6, Z75, 394) |
2009-2009 |
01 |
| 042 |
25970999 |
COVER, R/SEAT CUSH (EBONY) (USED ON VEHICLES BUILT 11/30/08 PRIOR) (2ND DES SEE 20758119) |
CK1, 2 (06) (AM8, 19C) (EXC 5T5) (1ST DES) |
2009-2009 |
01 |
| 042 |
25971000 |
COVER, R/SEAT CUSH (CASHMERE) (USED ON VEHICLES BUILT 11/30/08 PRIOR) (2ND DES SEE 20758120) |
CK1, 2 (06) (AM8, 33C) (1ST DES) |
2009-2009 |
01 |
| 042 |
25971001 |
COVER, R/SEAT CUSH (TITANIUM) (USED ON VEHICLES BUILT 11/30/08 PRIOR) (2ND DES SEE 20758121) |
CK1, 2 (06) (AM8, 83C) (1ST DES) |
2009-2009 |
01 |
