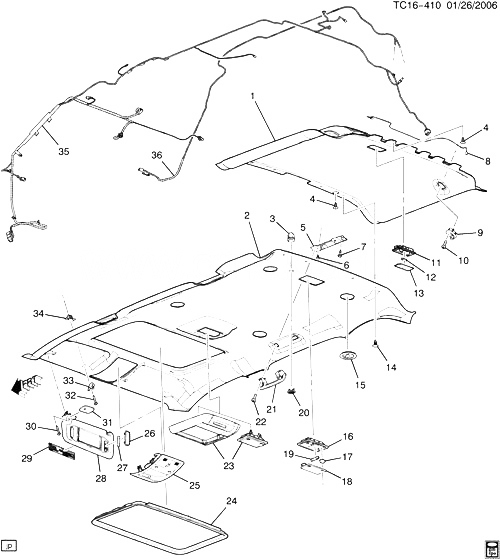

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25857242 |
PANEL, HDLNG RR TR (INCLS 4, 8, 11-13) (GRAY) |
CK109, 2 (06) (19I, 83I) |
2009-2009 |
01 |
| 001 |
25857244 |
PANEL, HDLNG RR TR (INCLS 4, 8, 11-13) (CASHMERE) |
CK109, 2 (06) (33I, 39I) |
2009-2009 |
01 |
| 001 |
25857245 |
PANEL, HDLNG RR TR (INCLS 4, 8, 11-13) (LINEN) |
CK109 (06) (ULT, Z75, 41I) |
2008-2009 |
01 |
| 002 |
20828872 |
PANEL, HDLNG FRT TR (INCLS 3, 14-20, 23, 32-36) (GRAY) |
CK109, 2 (06) (ASF, CF5, CJ2, Z75, 19I, 83I) (EXC U42) |
2009-2009 |
01 |
| 002 |
20828873 |
PANEL, HDLNG FRT TR (INCLS 3, 14-20, 23, 32-36) (CASHMERE) |
CK109, 2 (06) (ASF, CF5, CJ2, Z75, 33I, 39I) (EXC U42) |
2009-2009 |
01 |
| 002 |
20828884 |
PANEL, HDLNG FRT TR (INCLS 3, 14-20, 23, 32-36) (GRAY) (W/ANT MDL LABELED 25943786 OR 25943787) (FOR 1ST DES SEE 25982365) |
CK109 (06) (ASF, CF5, CJ2, DNU, U42, Y91, Z75, 19I) (2ND DES) |
2009-2009 |
01 |
| 002 |
20828885 |
PANEL, HDLNG FRT TR (INCLS 3, 14-20, 23, 32-36) (LINEN) |
CK109 (06) (ASF, CF5, CJ2, DNU, U42, Z75, 41I) |
2009-2009 |
01 |
| 002 |
20828886 |
PANEL, HDLNG FRT TR (INCLS 3, 14-20, 23, 32-36) (CASHMERE) (W/ANT MDL LABELED 25943786 OR 25943787) (FOR 1ST DES SEE 25982367) |
CK109 (06) (ASF, CF5, CJ2, DNU, U42, Y91, Z75, 39I) (2ND DES) |
2009-2009 |
01 |
| 002 |
25982365 |
PANEL, HDLNG FRT TR (INCLS 3, 14-20, 23, 32-36) (GRAY) (W/ANT MDL LABELED 15877496 OR 15877497) (FOR 2ND DES SEE 20828884) |
CK109 (06) (ASF, CF5, CJ2, DNU, U42, Y91, Z75, 19I) (1ST DES) |
2009-2009 |
01 |
| 002 |
25982366 |
PANEL, HDLNG FRT TR (INCLS 3, 14-20, 23, 32-36) (LINEN) |
CK109 (06) (ASF, CF5, CJ2, DNU, ULT, U42, Z75, 41I) |
2009-2009 |
01 |
| 003 |
25903301 |
ASPIRATOR, I/S AIR TEMP SEN (PART OF 2) (ACDelco #15-51256)
| CK1, 2, 3 (CJ2) |
2007-2009 |
01 |
|
| 004 |
15799511 |
RETAINER, HDLNG RR T/PNL (PART OF 1) (GRAY) |
CK109, 2 (06) (19I, 83I) |
2007-2009 |
01 |
| 004 |
15799513 |
RETAINER, HDLNG RR T/PNL (PART OF 1) (CASHMERE) |
CK109, 2 (06) (33I, 39I) |
2009-2009 |
01 |
| 004 |
15958694 |
RETAINER, HDLNG RR T/PNL (PART OF 1) (BLACK) (7.6DIA X 22.9 MM) (X-MAS TREE) (FOR HOLE 6.30-6.55 DIA) (16.850)
| CK1, 2 (06) |
2007-2009 |
02 |
|
| 004 |
25851526 |
RETAINER, HDLNG RR T/PNL (PART OF 1) (LINEN) |
CK109 (06) (ULT, Z75, 41I) |
2008-2009 |
01 |
| 005 |
15774330 |
BRACKET, R/RL RR ASST HDL |
CK1, 2, 3 |
2007-2009 |
02 |
| 006 |
15958694 |
RETAINER, R/RL RR ASST HDL (PUSH IN) (BLACK) (7.6DIA X 22.9 MM) (X-MAS TREE) (FOR HOLE 6.30-6.55 DIA) (16.850)
| CK1, 2, 3 |
2007-2009 |
02 |
|
| 007 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (R/RL RR ASST HDL BRKT)
|
2007-2009 |
04 |
|
| 008 |
|
HARNESS, DM LP WRG (PART OF 1) |
|
2007-2009 |
|
| 009 |
15936651 |
HOOK, COAT (INCLS 10) (LINEN) |
CK1 (06) (ULT, 41I) |
2008-2009 |
02 |
| 009 |
20760385 |
HOOK, COAT (INCLS 10) (GRAY) (BEZEL W/FINGERS) |
CK1, 2, 3 (19I, 22I, 31I, 33I, 83I, 84I, 88I) |
2007-2009 |
02 |
| 009 |
20760388 |
HOOK, COAT (INCLS 10) (CASHMERE) |
CK1, 2 (06) (33I, 39I) |
2009-2009 |
02 |
| 009 |
25837307 |
HOOK, COAT (INCLS 10) (GRAY) (W/O FINGERS)
| CK1, 2 (06) (19I, 83I, 84I) |
2008-2009 |
02 |
|
| 010 |
11609649 |
SCREW-PAN HD, M6X1X20, 15 THD 11.25 OD, 6202M STL, GMW3044, TAPTITE 200 (PART OF 9) (8.913) |
|
2007-2009 |
02 |
| 011 |
15847354 |
LAMP, CARGO (PART OF 1) (INCLS 12, 13) (OPEL GRAY) |
CK109, 2 (06) (19I, 83I) |
2009-2009 |
01 |
| 011 |
15931543 |
LAMP, CARGO (PART OF 1) (INCLS 12, 13) (VERY LIGHT CASHMERE) |
CK109, 2 (06) (33I, 39I) |
2009-2009 |
01 |
| 011 |
25851527 |
LAMP, CARGO (PART OF 1) (INCLS 12, 13) |
CK109 (06) (ULT, Z75, 41I) |
2008-2009 |
01 |
| 012 |
09431809 |
BULB, 6CP TRADE #212-2 (PART OF 1, 11) (ACDelco #L212-2) |
CK109, 2 (06) |
2007-2009 |
02 |
| 013 |
15853947 |
LENS, CARGO LP (PART OF 1, 11) |
CK109, 2 (06) |
2007-2009 |
01 |
| 014 |
15799511 |
RETAINER, HDLNG FRT T/PNL (PART OF 2) (GRAY) |
CK109, 2 (06) (19I, 83I) |
2007-2009 |
02 |
| 014 |
15799512 |
RETAINER, HDLNG FRT T/PNL (PART OF 2) (CASHMERE) |
CK109, 2 (06) (33I, 39I) |
2009-2009 |
02 |
| 014 |
25851526 |
RETAINER, HDLNG FRT T/PNL (PART OF 2) (LINEN) |
CK109 (06) (41I) |
2008-2009 |
02 |
| 015 |
|
DEFLECTOR, AUX A/C AIR OTLT (PART OF 2) |
(41I) |
2009-2009 |
|
| 015 |
10393498 |
DEFLECTOR, AUX A/C AIR OTLT (PART OF 2) (CASHMERE) |
CK107, 109, 2 (06) (33I, 39I) |
2009-2009 |
04 |
| 015 |
15217394 |
DEFLECTOR, AUX A/C AIR OTLT (PART OF 2) (GRAY) |
CK107, 109, 2 (06) (19I, 83I) |
2009-2009 |
04 |
| 015 |
25851511 |
DEFLECTOR, AUX A/C AIR OTLT (PART OF 2) (LINEN) |
CK109 (06) (41I) |
2008-2009 |
04 |
| 016 |
15940150 |
LAMP, DM RDG (3RD ROW) (PART OF 2) (GRAY)
| CK109 (06) (ASF, CJ2, DNU, U42, Z75, 19I) |
2009-2009 |
01 |
|
| 016 |
15940150 |
LAMP, DM RDG (3RD ROW) (PART OF 2) (GRAY)
| CK109, 2 (06) (ASF, CJ2, U42, 19I, 83I, 84I) (EXC DNU) |
2009-2009 |
01 |
|
| 016 |
15940151 |
LAMP, DM RDG (3RD ROW) (PART OF 2) (CASHMERE) |
CK109 (06) (ASF, CJ2, DNU, U42, Z75, 39I) |
2009-2009 |
01 |
| 016 |
15940151 |
LAMP, DM RDG (3RD ROW) (PART OF 2) (CASHMERE) |
CK109, 2 (06) (ASF, CJ2, 22I, 33I, 39I) (EXC U42) |
2009-2009 |
01 |
| 016 |
15940151 |
LAMP, DM RDG (3RD ROW) (PART OF 2) (CASHMERE) |
CK109, 2 (06) (ASF, CJ2, U42, 22I, 33I, 39I) (EXC DNU) |
2009-2009 |
01 |
| 016 |
25851514 |
LAMP, DM RDG (PART OF 2) (LINEN) |
CK109 (06) (ASF, CF5, CJ2, DNU, U42, Z75, 41I) |
2009-2009 |
01 |
| 017 |
15853948 |
PUSHBUTTON, RDG LP SW (PART OF 2) |
CK1, 2, 3 |
2007-2009 |
02 |
| 018 |
15853946 |
LENS, DM RDG LP (3RD ROW LAMP) (PART OF 2) |
CK1, 2, 3 |
2007-2009 |
01 |
| 019 |
09431809 |
BULB, 6CP TRADE #212-2 (PART OF 2) (ACDelco #L212-2) |
|
2007-2009 |
02 |
| 020 |
15075507 |
GRILLE, I/S AIR TEMP SEN ASPIRATOR (PART OF 2) (GRAY) |
CK1, 2 (06) (19I, 83I) |
2009-2009 |
02 |
| 020 |
15250566 |
GRILLE, I/S AIR TEMP SEN ASPIRATOR (PART OF 2) (CASHMERE) |
CK1, 2 (06) (33I, 39I) |
2009-2009 |
02 |
| 020 |
25851516 |
GRILLE, I/S AIR TEMP SEN ASPIRATOR (PART OF 2) (LINEN) |
CK109 (06) (41I) |
2008-2009 |
02 |
| 021 |
25836768 |
HANDLE, R/RL RR ASST (INCLS 22) (GRAY) |
CK1 (Z75, 19I) |
2009-2009 |
01 |
| 021 |
25836770 |
HANDLE, R/RL RR ASST (INCLS 22) (GRAY) |
CK1 (Z75, 19I) |
2009-2009 |
01 |
| 021 |
25865717 |
HANDLE, R/RL RR ASST (INCLS 22) (LINEN) |
CK1 (06) (ULT, Z75, 41I) |
2008-2009 |
01 |
| 021 |
25865719 |
HANDLE, R/RL RR ASST (INCLS 22) (LINEN) |
CK1 (06) (ULT, Z75, 41I) |
2008-2009 |
01 |
| 022 |
11609649 |
SCREW-PAN HD, M6X1X20, 15 THD 11.25 OD, 6202M STL, GMW3044, TAPTITE 200 (PART OF 21) (8.913) |
|
2007-2009 |
04 |
| 023 |
|
LAMP, DM RDG (СМ. ГРУППУ 16.000 ОТДЕЛКА/ВНУТРЕННЯЯ-КРЫША-ЧАСТЬ 2, CENTER AND ЗАДНЯЯ КОНСОЛЬ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (PART OF 2) |
|
2007-2009 |
|
| 024 |
25874712 |
MOLDING, SUN RF PNL/WDO GARN (GRAY) |
CK1, 2 (06-36) (CF5, 19I, 83I) |
2009-2009 |
01 |
| 024 |
25874713 |
MOLDING, SUN RF PNL/WDO GARN (CASHMERE) |
CK1, 2 (06-36) (CF5, 33I, 39I) |
2009-2009 |
01 |
| 024 |
25874715 |
MOLDING, SUN RF PNL/WDO GARN (LINEN) |
CK1 (CF5, 41I) |
2008-2009 |
01 |
| 025 |
|
КОНСОЛЬ, RF (СМ. ГРУППУ 16.000 КОНСОЛЬ/КРЫША ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2009 |
|
| 026 |
15853950 |
LENS, S/S ILLUM MIR LP (PART OF 28) (GRAY) |
CK1, 2 (06-36) (AL0, DH6, 19I, 83I) |
2009-2009 |
02 |
| 026 |
15853951 |
LENS, S/S ILLUM MIR LP (PART OF 28) (CASHMERE) |
CK1 (06-36) (AL0, DH6, 33I, 39I) |
2009-2009 |
01 |
| 026 |
25861408 |
LENS, S/S ILLUM MIR LP (PART OF 28) (COCOA) |
CK1 (06) (ULT, Z75, 41I) |
2008-2009 |
01 |
| 027 |
13502343 |
BULB, S/S ILLUM MIR LP (PART OF 28) (8.991) (ACDelco #13502343) |
CK1, 2, 3 |
2007-2009 |
02 |
| 028 |
25945132 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 26, 27, 29, 30) (GRAY) |
CK1, 2 (06-36) (AL0, DH6, 19I, 83I) |
2009-2009 |
01 |
| 028 |
25945133 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 26, 27, 29, 30) (CASHMERE)
| CK1, 2 (06-36) (AL0, DH6, 22I, 31I, 33I, 39I) |
2007-2009 |
01 |
|
| 028 |
25945135 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 26, 27, 29, 30) (LINEN) |
CK1 (06) (ULT, Z75, 41I) |
2008-2009 |
01 |
| 028 |
25945137 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 26, 27, 29, 30) (GRAY) |
CK1, 2 (06-36) (AL0, DH6, 19I, 83I) |
2009-2009 |
01 |
| 028 |
25945138 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 26, 27, 29, 30) (CASHMERE) |
CK1, 2 (06-36) (AL0, DH6, 33I, 39I) |
2009-2009 |
01 |
| 028 |
25945140 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 26, 27, 29, 30) (LINEN) |
CK1 (06) (ULT, Z75, 41I) |
2008-2009 |
01 |
| 029 |
|
LABEL, INFL RST SYS WRNG (PART OF 28) |
|
2007-2009 |
|
| 030 |
11610271 |
SCREW, PAN HD, M4.2X1.41X25, 20.5 THD, 8 OD, 6010M, GMW4205, T15 TORX, AB-PT (PART OF 28) |
|
2007-2009 |
06 |
| 031 |
15828264 |
COVER, S/S SUPT BOLT (GRAY) |
CK1, 2, 3 (19I, 31I, 33I, 83I, 84I, 85I, 88I) |
2007-2009 |
01 |
| 031 |
15828266 |
COVER, S/S SUPT BOLT (CASHMERE) |
CK1, 2 (06-36) (22I, 31I, 33I, 39I) |
2007-2009 |
01 |
| 031 |
15828268 |
COVER, S/S SUPT BOLT (GRAY) |
CK1, 2, 3 (19I, 31I, 33I, 83I, 84I, 85I, 88I) |
2007-2009 |
01 |
| 031 |
15828270 |
COVER, S/S SUPT BOLT (CASHMERE) |
CK1, 2 (06-36) (22I, 31I, 33I, 39I) |
2007-2009 |
01 |
| 032 |
11516440 |
SCREW (PART OF 2, 33) |
|
2007-2009 |
02 |
| 033 |
15893661 |
RETAINER, S/S (PART OF 2) (INCLS 32, 34) (CASHMERE) |
CK1, 2 (06-36) (22I, 31I, 33I, 39I) |
2007-2009 |
02 |
| 034 |
11609314 |
CLIP, S/S SUPT (PART OF 2, 33) (4.2 X 1.41) (12.8 HOLE) |
CK1, 2 (06-36) |
2007-2009 |
02 |
| 035 |
|
HARNESS, RF ACSRY WRG (PART OF 2) |
|
2008-2009 |
|
| 036 |
15289725 |
CABLE, RDO ANT (PART OF 2) (ACDelco #15289725) (USED W/ANT MDL LABELED 15877496 OR 15877497) (FOR 2ND DES SEE 25994421) |
CK109, 2 (06) (1ST DES) |
2009-2009 |
01 |
| 036 |
25994421 |
CABLE, RDO ANT (PART OF 2) (USED W/ANT LABELED 25943786 OR 25943787) (FOR 1ST DES SEE 15289725) |
CK109, 2 (06) (2ND DES) |
2009-2009 |
01 |
