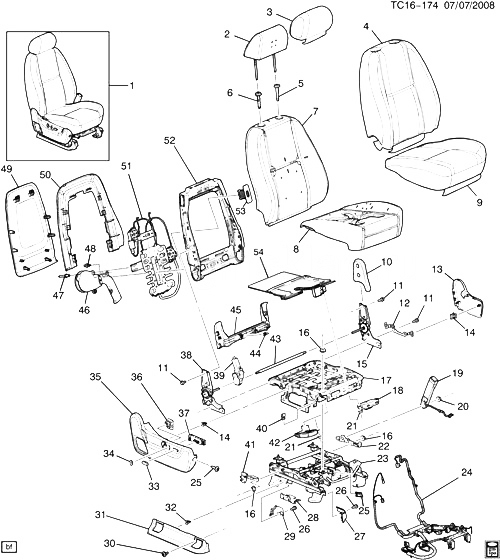

(TC16-174) - 2009 CK1(06-36) ПАССАЖИРСКОЕ СИДЕНЬЕ/BUCKET (AN3, HEATED/VENTED HNE,KB6) CADILLAC - ESCALADE ESV (AWD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20762424 SEAT, PASS (EBONY) K1 (06) (AL0, AN3, KB6, XA1, Z75, 194) (EXPORT) 2009-2009 01
001 25978446 SEAT, PASS (EBONY) CK1, 2 (06-36) (AN3, KB6, Z75, 194) 2009-2009 01
002 15865481 RESTRAINT, P/SEAT HD (INCLS 3) (EBONY) CK1, 2 (06-36) (AN3, 193, 223, 843) 2009-2009 01
002 15865482 RESTRAINT, P/SEAT HD (INCLS 3) (CASHMERE) CK1, 2 (06-36) (AN3, 336) 2009-2009 01
003 COVER, P/SEAT H/RST (PART OF 2) 2009-2009
004 15827097 COVER, P/SEAT BK CUSH (EBONY) CK1 (06-36-43) (AN3, KB6, Z75, 194) 2009-2009 01
004 15865828 COVER, P/SEAT BK CUSH (EBONY) CK1, 2 (06-36) (AN3, 193) 2009-2009 01
004 15923998 COVER, P/SEAT BK CUSH (EBONY) CK1, 2 (06-36) (AN3, 843) 2009-2009 01
004 25907743 COVER, P/SEAT BK CUSH (CASHMERE) CK1 (06-36) (AL0, AN3, KB6, Y91, 397) 2009-2009 01
005 15279347 GUIDE, F/SEAT BK H/RST ADJ ROD (EBONY) (W/BUTTON) CK1, 2 (06-36) (19I, 22I, 84I) 2009-2009 02
006 15279351 GUIDE, F/SEAT BK H/RST ADJ ROD (EBONY) (W/O BUTTON) CK1, 2 (06-36) (19I, 22I, 84I) 2009-2009 02
007 25789846 PAD, P/SEAT BK CUSH CK1, 2 (06-36) (KB6) 2009-2009 01
008 PAD, P/SEAT CUSH (PART OF 54) 2009-2009
009 15865833 COVER, P/SEAT CUSH (CASHMERE) CK1, 2, 3 (AN3, 333) 2009-2009 01
009 15924000 COVER, P/SEAT CUSH (EBONY) (VINYL INBOARD SIDE FACING) CK1, 2, 3 (AN3, 853) 2009-2009 01
009 20779855 COVER, P/SEAT CUSH (EBONY) (CARPET INBOARD SIDE FACING) CK1, 2, 3 (AN3, 193) 2009-2009 01
009 20779859 COVER, P/SEAT CUSH (EBONY) (CARPET INBOARD SIDE FACING) CK1, 2, 3 (AN3, 843) 2009-2009 01
009 25865171 COVER, P/SEAT CUSH (CASHMERE) (VINYL INBOARD SIDE FACING) CK1, 2 (06-36) (AL0, AN3, KB6, 336) 2009-2009 01
009 25865172 COVER, P/SEAT CUSH (TITANIUM) (VINYL INBOARD SIDE FACING) CK1, 2 (06-36) (AL0, AN3, KB6, 836) 2009-2009 01
009 25899514 COVER, P/SEAT CUSH (EBONY) CK1 (06-36) (AN3, KB6, Z75, 194) 2009-2009 01
010 15855909 PROTECTOR, P/SEAT RECL FIN CVR (EBONY) CK1, 2, 3 2009-2009 02
010 15855911 PROTECTOR, P/SEAT RECL FIN CVR (EBONY) CK1, 2, 3 2009-2009 02
011 11515764 БОЛТ, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (P/SEAT RECL) 2009-2009 08
012 15827137 BRACKET, P/SEAT RECL (I/B) CK1, 2, 3 2009-2009 01
013 15243828 COVER, P/SEAT INR RECL FIN (INCLS 14) (EBONY) (INBOARD) CK1, 2 (06-36) (19I, 22I, 84I) 2009-2009 01
014 RETAINER, F/SEAT ADJR FRT FIN CVR (PART OF 13, 35) 2009-2009
015 RECLINER, P/SEAT INR (PART OF 52) 2009-2009
016 11517996 ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (P/SEAT ADJR TOP PLT) (ACDelco #11517996) 2009-2009 08
017 15827059 FRAME, P/SEAT CUSH CK1, 2, 3 2009-2009 01
018 15232555 MODULE, P/SEAT CUSH VENTILATION HEAT COOL CK1 (06-36) (AN3, HNE) 2009-2009 01
018 15232555 MODULE, P/SEAT CUSH VENTILATION HEAT COOL CK1 (06-36) (AN3, KB6) 2009-2009 01
019 BELT KIT, P/SEAT (BKL SI) (33I, 39I, 415) 2009-2009
020 11517996 ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (P/SEAT BELT (BKL SI)) (ACDelco #11517996) 2009-2009 01
021 11516075 ГАЙКА, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (INFL RST P/SEAT SUPPRESSION) 2009-2009 AR
022 BRACKET, P/SEAT BELT (BKL SI) 2009-2009
023 25966553 ADJUSTER, P/SEAT (POWER) CK1 (06-36-43) (AN3) 2009-2009 01
025 25815788 CAP, F/SEAT ADJR TRK END (BLACK) CK1, 2, 3 2009-2009 02
026 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (P/SEAT CUSH OTR FIN PNL) 2009-2009 03
027 15243858 COVER, P/SEAT INR ADJR TRK FRT FIN (EBONY) CK1, 2 (06-36) (19I, 22I, 84I) 2009-2009 01
028 15827135 BRACKET, P/SEAT FRT (MAIN BODY HARNESS CONNECTION) CK1, 2, 3 2009-2009 01
029 COVER, P/SEAT OTR ADJR TRK RR FIN 2009-2009
030 11517996 ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (P/SEAT ADJR FIN CVR) (ACDelco #11517996) 2009-2009 01
031 COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 32) 2009-2009
032 RETAINER, F/SEAT ADJR FIN CVR (PART OF 31) 2009-2009
033 10325879 KNOB, P/SEAT ADJR SW (EBONY) (11.558) CK1, 2 (06-36) (19I, 22I, 84I) 2009-2009 01
033 15889097 KNOB, P/SEAT ADJR SW (COCOA) (11.558) CK1, 2, 3 (41I) 2009-2009 01
034 15889098 KNOB, F/SEAT RECL (COCOA) (11.377) CK1, 2, 3 (41I) 2009-2009 02
035 15232567 COVER, P/SEAT ADJR FIN (INCLS 14) (EBONY) (POWER) CK1, 2 (06-36) (AN3, 19I, 22I, 84I) 2009-2009 01
036 25909573 SWITCH, P/SEAT LUMBAR CONT CK1 (06) (41I) 2009-2009 01
036 25926719 SWITCH, P/SEAT LUMBAR CONT (EBONY) (2-WAY POWER LUMBAR) (FOR 1ST DES SEE 25802502) CK1, 2 (06-36) (19I, 22I, 84I) (2ND DES) 2009-2009 01
037 12451498 SWITCH, P/SEAT ADJR RECL (8-WAY) (P SEAT ADJ SWITCH LABELED 12451498) (11.558) CK1, 2, 3 (AN3) 2009-2009 01
038 RECLINER, P/SEAT OTR (PART OF 52) 2009-2009
039 MOTOR, P/SEAT RECL ACTR (PART OF 52) 2009-2009
040 11513599 ГАЙКА, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (F/SEAT) (ACDelco #11513599) 2009-2009 02
041 BRACKET, P/SEAT BELT (RETR SI) 2009-2009
041 15845154 BRACKET, P/SEAT BELT (RETR SI) (O/B) CK1, 2 (AL0) 2009-2009 01
042 15232556 BLOWER, P/SEAT CUSH VENTILATION HEAT COOL CK1 (06-36) (AN3, HNE, Z75) 2009-2009 01
042 15232556 BLOWER, P/SEAT CUSH VENTILATION HEAT COOL CK1 (06-36) (AN3, KB6) 2009-2009 01
043 RECLINER, P/SEAT (PART OF 52) 2009-2009
044 RETAINER, F/SEAT ADJR RR FIN CVR (PART OF 45) 2009-2009
045 15827129 COVER, F/SEAT RSR FIN (INCLS 44) (EBONY) (RIGHT LEFT TOE KICK) CK1, 2 (06-36) (19I, 22I, 84I) 2009-2009 02
046 15232557 BLOWER, P/SEAT BACK VENTILATION HEAT COOL (INCLS THERMAL ELECTRIC DEVICE, TEMP SENSOR FILTER) CK1 (06-36) (AN3, HNE, Z75) 2009-2009 01
046 15232557 BLOWER, P/SEAT BACK VENTILATION HEAT COOL (INCLS THERMAL ELECTRIC DEVICE, TEMP SENSOR FILTER) CK1 (06-36) (AN3, KB6) 2009-2009 01
047 RIVET, P/SEAT RECL 2009-2009
048 RETAINER, P/SEAT RECL 2009-2009
049 15933726 PANEL, P/SEAT BK CUSH FIN (INCLS MAP POCKET) (EBONY) (WHEN REPL TRIM WRAP PANELS, REPLACE BOTH DRVR PASS PANELS) CK1, 2 (06-36) (AN3, 193, 223, 843) 2009-2009 01
049 25865153 PANEL, P/SEAT BK CUSH FIN (CASHMERE) CK1, 2 (06-36) (AL0, AN3, KB6, 336) 2009-2009 01
050 15827133 RING, F/SEAT BK CUSH CVR HOG CK1, 2, 3 2009-2009 02
051 20763141 LUMBAR SUB, P/SEAT (PART OF 52) (POWER) (HEAT COOL) CK1, 2 (06-36) (AN3, HNE) 2009-2009 01
051 20763141 LUMBAR SUB, P/SEAT (PART OF 52) (POWER) (HEAT COOL) CK1, 2 (06-36) (AN3, KB6) 2009-2009 01
052 25808721 FRAME, P/SEAT BK CUSH (INCLS 15, 38, 39, 43, 51) (INCLS RECLINER, MOTOR LUMBAR SUPPORT) CK1 (06-36) (AN3, HNE, KB6) 2009-2009 01
053 15232558 DUCT, P/SEAT BACK VENTILATION CK1 (06-36) (AN3, HNE, Z75) 2009-2009 01
053 15232558 DUCT, P/SEAT BACK VENTILATION CK1, 2 (06-36) (AN3, KB6) 2009-2009 01
054 20818408 MODULE KIT, INFL RST FRT PASS PRESENCE (W/ SEN) (INCLS 8) CK1, 2, 3 (KB6) 2009-2009 01
