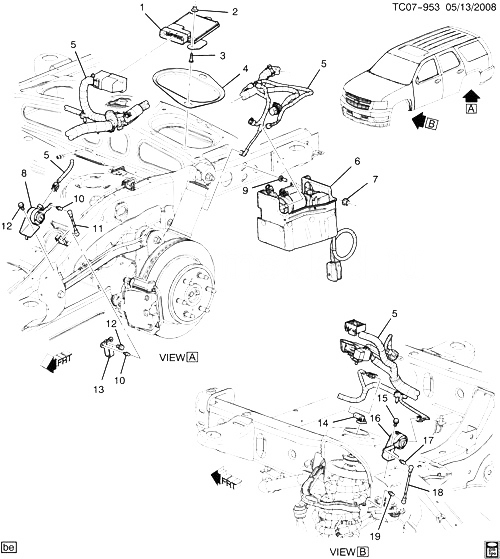

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25971218 |
MODULE, ELEK SUSP CONT (INCLS 2, 3) (LABELED 25971218) |
CK1 (06-36) (Z95) |
2009-2009 |
01 |
| 002 |
|
ГАЙКА, ELEK SUSP CONT MDL (PART OF 1) |
|
2009-2009 |
|
| 003 |
|
БОЛТ, ELEK SUSP MDL (PART OF 1) |
|
2009-2009 |
|
| 005 |
|
HARNESS, CHAS WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/CHASSIS ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (INCLS 14) |
|
2009-2009 |
|
| 006 |
25913289 |
КОМПРЕССОР, AUTO LVL CONT AIR (INCLS 7, 9) (СМ. ГРУППУ 07.000 LEVEL CONTROL КОМПРЕССОР/AUTOMATIC ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
CK1 (06-36) (Z55, Z95) |
2009-2009 |
01 |
| 007 |
|
ГАЙКА, AUTO LVL CONT AIR CMPR (PART OF 6) |
|
2009-2009 |
|
| 008 |
15128648 |
SENSOR, ELEK SUSP RR POSN (INCLS 10, 11, 13)
| CK1 (06-36) (Z55, Z95) |
2009-2009 |
01 |
|
| 008 |
15128649 |
SENSOR, ELEK SUSP RR POSN (INCLS 10, 11, 13)
| CK1 (06-36) (Z55, Z95) |
2009-2009 |
01 |
|
| 009 |
|
БОЛТ, AUTO LVL CONT AIR CMPR BR (PART OF 6) |
|
2009-2009 |
|
| 010 |
|
STUD, ELEK SUSP RR POSN SEN LINK BALL (PART OF 8, 13) |
|
2009-2009 |
|
| 011 |
15815642 |
LINK, ELEK SUSP RR POSN SEN (PART OF 8)
| CK1 (06-36) (Z55, Z95) |
2009-2009 |
02 |
|
| 012 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (ELEK SUSP RR POSN SEN BRKT) |
|
2009-2009 |
04 |
| 013 |
22189896 |
BRACKET, ELEK SUSP FRT POSN SEN (PART OF 8) (INCLS 10) (ELEK SUSP RR POSN)
| CK1 (06-36) (Z55, Z95) |
2009-2009 |
01 |
|
| 013 |
22189897 |
BRACKET, ELEK SUSP FRT POSN SEN (PART OF 8) (INCLS 10) (ELEK SUSP RR POSN)
| CK1 (06-36) (Z55, Z95) |
2009-2009 |
01 |
|
| 014 |
|
CONNECTOR, SOL-S/ABS ELEK SUSP CONT ACTR (PART OF 5) |
|
2009-2009 |
|
| 015 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (ELEK SUSP FRT POSN SEN BRKT) |
|
2009-2009 |
02 |
| 016 |
15098628 |
SENSOR, ELEK SUSP FRT POSN (INCLS 17, 18)
| CK1 (06-36) (Z55, Z95) |
2009-2009 |
01 |
|
| 016 |
15098629 |
SENSOR, ELEK SUSP FRT POSN (INCLS 17, 18)
| CK1 (06-36) (Z55, Z95) |
2009-2009 |
01 |
|
| 017 |
|
STUD, ELEK SUSP FRT POSN SEN LINK BALL (PART OF 16) |
|
2009-2009 |
|
| 018 |
15815637 |
LINK, ELEK SUSP FRT POSN SEN (PART OF 16) |
CK1 (06-36) (Z55, Z95) |
2009-2009 |
02 |
| 019 |
11609404 |
STUD, ELEK SUSP FRT POSN SEN LINK BALL (M6X1X9.5) (HEX, 8 DIA BALL STYLE) |
CK1 (06-36) (Z55, Z95) |
2009-2009 |
02 |
