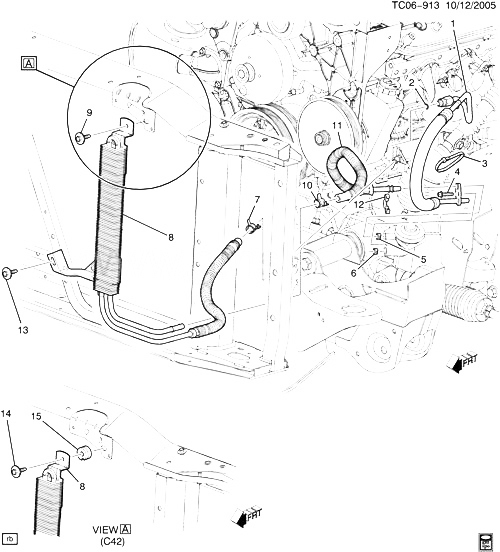

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25858603 |
HOSE, P/S GR INL (INCLS 2, 4)
| CK1 (LC9, LH6, LMG, LY2, LY5, L76, L9H) |
2009-2009 |
01 |
|
| 002 |
26001594 |
SEAL, P/S GR INL HOSE (O RING) (PART OF 1) (7.65MM IDX1.63MM THK)
| CK1 |
2007-2009 |
01 |
|
| 003 |
|
STRAP, P/S GR HOSE |
|
2008-2009 |
|
| 004 |
11562063 |
БОЛТ, HFH, M6X1X25, 18 THD, 12.8 OD, 9.8 STL, HEX CHROME FREE, SN-ZN. (PART OF 1) |
|
2007-2009 |
01 |
| 005 |
13271879 |
SEAL, P/S GR OTLT HOSE (O-RING) |
CK1 |
2007-2009 |
01 |
| 006 |
26100863 |
SEAL, P/S GR INL HOSE (O RING) (6.824)
| CK1 |
2007-2009 |
01 |
|
| 007 |
11516255 |
CLAMP, ПРУЖИНА BAND HOSE (M16X1) (PART OF 8) |
|
2007-2009 |
01 |
| 008 |
25918689 |
COOLER, P/S FLUID (INCLS 7) |
CK1 (LC9, LH6, LMG, LY5, L76, L9H, MYC) |
2009-2009 |
01 |
| 009 |
11589039 |
БОЛТ, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (P/S FLUID CLR)
|
2007-2009 |
01 |
|
| 010 |
11516255 |
CLAMP, ПРУЖИНА BAND HOSE (M16X1) (PART OF 11) |
|
2007-2009 |
01 |
| 011 |
15812565 |
HOSE, P/S GR OTLT (INCLS 10)
| CK1 |
2007-2009 |
01 |
|
| 012 |
|
CLIP, P/S GR INL OTLT PIPE |
|
2008-2009 |
|
| 013 |
11589398 |
БОЛТ, HEX HD, W/CON WA, M6X1X30, 18.11 THD, 24 O.D., 9.8, GMW3179, BLACK (P/S FLUID CLR) |
|
2007-2009 |
01 |
| 014 |
11589398 |
БОЛТ, HEX HD, W/CON WA, M6X1X30, 18.11 THD, 24 O.D., 9.8, GMW3179, BLACK (P/S FLUID CLR) |
|
2007-2009 |
02 |
| 015 |
52476687 |
INSULATOR, P/S FLUID CLR (UPPER) |
CK1, 2, 3 (C42) |
2007-2009 |
01 |
