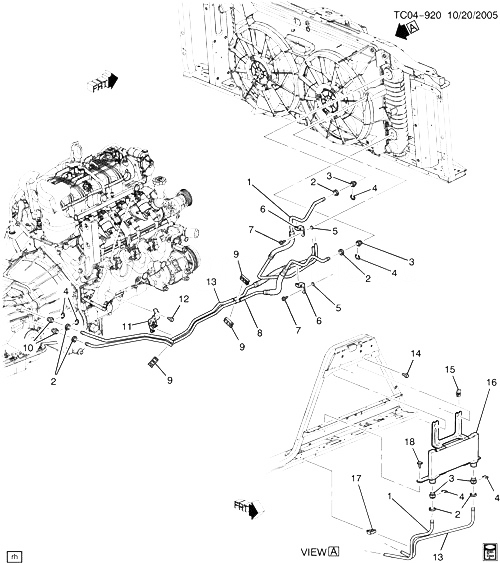

(TC04-920) - 2009 CK1 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ ТРУБКИ МАСЛОРАДИАТОРА АКПП (M30, AUXILIARY COOLER KNP) CADILLAC - ESCALADE ESV (AWD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15779543 PIPE, TRANS FLUID AUX CLR INL (INCLS 2, 5-7) CK1 (06-36) (LC9, LMG, LY2, LY5, L76, L9H, MYC, M30, KNP) 2009-2009 01
002 15052228 CAP, TRANS FLUID CLR PIPE CONN (PART OF 1, 8, 13) (PLASTIC RETAINER) (ACDelco #15052228) CK1, 2, 3 2007-2009 02
003 15226661 CONNECTOR, TRANS FLUID CLR PIPE (INCLS 4) (9/16-18) (3/8 BODY QUICK CONNECT) (AT RAD) (ACDelco #15226661) CK1, 2, 3 (MYC, MYD, M30) 2009-2009 02
003 19210848 CONNECTOR, TRANS FLUID CLR PIPE (INCLS 4) (W/O BEVEL WASHER) (ACDelco #19210848) CK1, 2, 3 (MYC, MYD, M30, KNP) 2009-2009 02
004 24205103 RETAINER, TRANS FLUID CLR PIPE FTG (PART OF 3, 10) (EXPANDING ПРУЖИНА WIRE) (ACDelco #24205103) CK1, 2, 3 2007-2009 01
005 14093869 ГАЙКА, PUSH ON, M6, 2.25THK, 12.95 O.D., STL, POR (PART OF 1, 8) 2007-2009 02
006 15782677 CLIP, TRANS FLUID CLR PIPE (PART OF 1, 8) CK1 (06-36) (L9H, MYC, M30, M70, KNP) 2009-2009 01
007 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (PART OF 1, 8) 2007-2009 02
012 11516521 БОЛТ, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (TRANS FLUID CLR PIPE CLIP) 2007-2009 01
014 11516521 БОЛТ, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (TRANS FLUID CLR) 2007-2009 01
015 11570097 ГАЙКА, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (TRANS FLUID AUX CLR) 2007-2009 02
016 25891509 COOLER, TRANS FLUID AUX (CODE 4639, 5464, 9344, 7192) (TRUCKS W/2PC STEEL BRACKETS ALSO REQ 11519377 BOLT QTY 2) (ACDelco #25891509) CK1, 2, 3 (MYC, MYD, M30, KNP) 2009-2009 01
017 15049288 RETAINER, TRANS FLUID CLR PIPE (BLACK) (37.7X39.3) (DOUBLE SNAIL CLIP) CK1, 2, 3 (M30, KNP) 2008-2009 01
018 RETAINER, TRANS FLUID AUX CLR 2007-2009
