| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

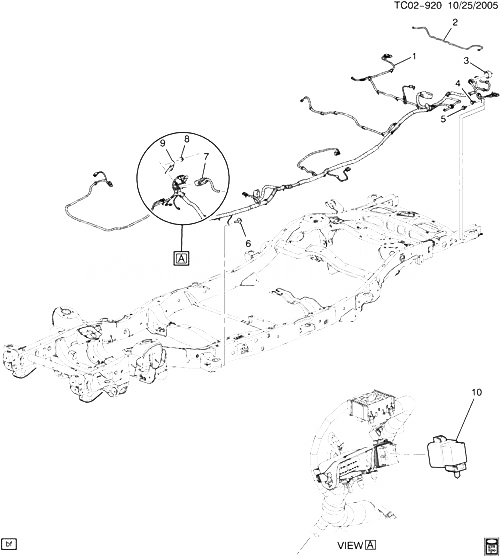

| 001 |
25977179 |
HARNESS, CHAS WRG (INCLS 2, 3) |
CK109 (06) (BRS, G69, Z55, Z75, Z95) (EXC UFT) |
2009-2009 |
01 |
| 001 |
25977198 |
HARNESS, CHAS WRG (INCLS 2, 3) |
CK109 (06) (BRS, G69, UFT, Z55, Z75, Z95) |
2009-2009 |
01 |
| 001 |
25977214 |
HARNESS, CHAS WRG (INCLS 2, 3) |
CK109 (06) (G69, Z55, Z75, Z95) (EXC BRS, UFT) |
2009-2009 |
01 |
| 001 |
25977223 |
HARNESS, CHAS WRG (INCLS 2, 3) |
CK109 (06) (G69, UFT, Z55, Z75, Z95) (EXC BRS) |
2009-2009 |
01 |
| 002 |
19115819 |
TUBE, RR S/ABS AIR (PART OF 1)
| CK1 (06) (G69, X88, Z55, Z75, Z88, Z95) |
2008-2009 |
01 |
|
| 003 |
|
CAP, TRLR WRG RCPT (PART OF 1) |
|
2007-2009 |
|
| 004 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (CHAS WRG)
|
2007-2009 |
01 |
|
| 005 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (F/TNK FIL PIPE GND)
|
2007-2009 |
01 |
|
| 006 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (TRLR WRG HARN GND)
|
2007-2009 |
02 |
|
| 007 |
|
HARNESS, I/P WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/ПРИБОРНАЯ ПАНЕЛЬ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2009 |
|
| 008 |
21011332 |
ГАЙКА, HEX STAMPED TY DF FLG 14 (CHAS FRT WRG HARN BRKT) (8.921) |
|
2007-2009 |
02 |
| 009 |
15045897 |
BRACKET, CHAS FRT WRG HARN (FRT OF DASH) |
CK1, 2, 3 |
2007-2009 |
01 |
| 010 |
12177233 |
RELAY, AUTO LVL CONT (5-WAY MALE, BLACK, CODE 7233) (SHROUDED) (W/RESISTOR) (SPDT 280 MINI) (FOR 4-TERM APP CUT OFF CENTER TERM LABELED 87A) (9.277) (ACDelco #15-8721) |
CK109 (06) (G69) |
2008-2009 |
01 |
