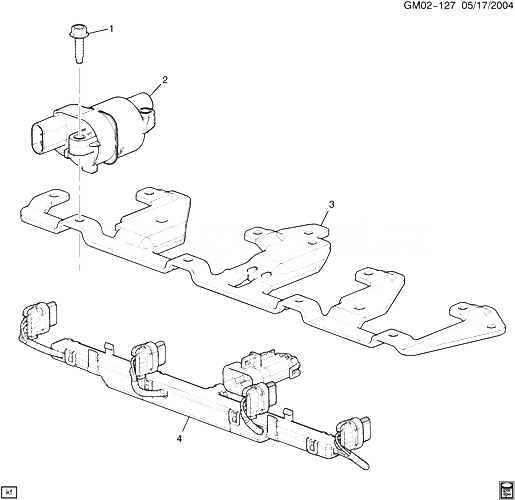

(GM02-127) - 2009 CK1,2,3 COIL MODULE/IGNITION (DELPHI)(LY6/6.0K,L76/6.0Y,L9H/6.2-2) CADILLAC - ESCALADE ESV (AWD) 2009
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 11562426 | БОЛТ, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (IGN COIL) | 2007-2009 | 16 | |
| 003 | 12580353 | BRACKET, IGN COIL (ACDelco #12580353) | CK1 (L9H) | 2009-2009 | 01 |
| 004 | 12579355 | WIRE, IGN COIL (INCLSCONNECTORS) (ACDelco #357A) | CK1 (L9H) | 2009-2009 | 01 |
