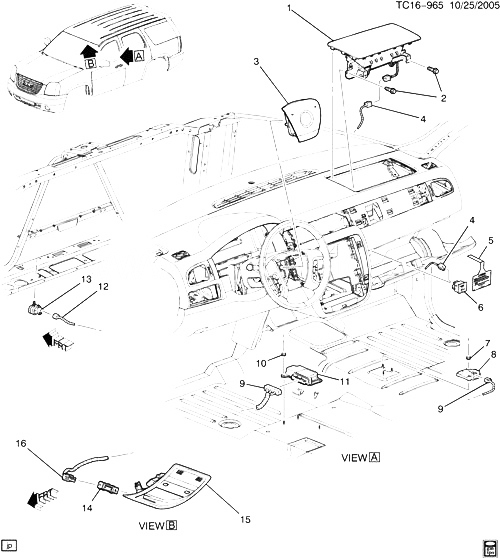

(TC16-965) - 2007-2009 CK1,2,3 INFLATABLE RESTRAINT SYSTEM CADILLAC - ESCALADE ESV (AWD) 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25812355 MODULE, I/P INFL RST (EBONY) CK1 (19I, 22I, 31I, 84I, 85I) 2008-2009 01
001 25812356 MODULE, I/P INFL RST (CASHMERE) CK1 (33I) 2007-2009 01
001 25812357 MODULE, I/P INFL RST (TITANIUM) CK1 (06-36) (83I, 88I) 2008-2008 01
001 25812358 MODULE, I/P INFL RST (CASHMERE) CK1 (06-36-43) (30I, 39I) 2007-2008 01
001 25819574 MODULE, I/P INFL RST (COCOA) CK1 (41I) 2008-2009 01
002 11588337 БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (I/P INFL RST MDL) 2007-2009 04
003 15874515 MODULE, STRG WHL INFL RST (EBONY) (LABELED 15874515) (DUAL LEVEL) (16.712) CK1 (06-36) (Y91, Z75, 19I) 2007-2009 01
003 15874515 MODULE, STRG WHL INFL RST (EBONY) (LABELED 15874515) (DUAL LEVEL) CK1 (06-36) (Y91, Z75, 19I) 2007-2009 01
003 15874516 MODULE, STRG WHL INFL RST (COCOA) (LABELED 15874516) (DUAL LEVEL) (INCLS EMBLEM) (16.712) CK1 (06-36) (Y91, Z75, 30I) 2007-2009 01
003 15874516 MODULE, STRG WHL INFL RST (COCOA) (LABELED 15874516) (DUAL LEVEL) (INCLS EMBLEM) CK1 (06-36) (Y91, Z75, 30I) 2007-2009 01
003 15874519 MODULE, STRG WHL INFL RST (EBONY) (LABELED 15874519) (DUAL LEVEL) (16.712) CK1 (06-43) (Y91, Z88, 19I) 2007-2009 01
003 15874519 MODULE, STRG WHL INFL RST (EBONY) (LABELED 15874519) (DUAL LEVEL) CK1 (06-43) (Y91, Z88, 19I) 2007-2009 01
003 15874520 MODULE, STRG WHL INFL RST (COCOA) (LABELED 15874520) (DUAL LEVEL) (16.712) CK1 (06-43) (Y91, Z88, 39I) 2007-2009 01
003 15874520 MODULE, STRG WHL INFL RST (COCOA) (LABELED 15874520) (DUAL LEVEL) CK1 (06-43) (Y91, Z88, 39I) 2007-2009 01
003 25784920 MODULE, STRG WHL INFL RST (COCOA) (DUAL LEVEL) (16.712) CK1 (06) (Z75, 41I) 2008-2009 01
003 25784920 MODULE, STRG WHL INFL RST (COCOA) (DUAL LEVEL) CK1 (06) (Z75, 41I) 2008-2009 01
003 25917968 MODULE, STRG WHL INFL RST (EBONY) (LABELED 25917968) (DUAL LEVEL) (16.712) CK1 (06-36) (Y91, Z75, 19I) 2007-2009 01
003 25917968 MODULE, STRG WHL INFL RST (EBONY) (LABELED 25917968) (DUAL LEVEL) CK1 (06-36) (Y91, Z75, 19I) 2007-2009 01
003 25917969 MODULE, STRG WHL INFL RST (COCOA) (LABELED 25917969) (DUAL LEVEL) (16.712) CK1 (06-36) (Y91, Z75, 39I) 2007-2009 01
003 25917969 MODULE, STRG WHL INFL RST (COCOA) (LABELED 25917969) (DUAL LEVEL) CK1 (06-36) (Y91, Z75, 39I) 2007-2009 01
003 25917971 MODULE, STRG WHL INFL RST (EBONY) (LABELED 25917971) (DUAL LEVEL) (16.712) CK1 (06-43) (Y91, Z88, 19I) 2007-2009 01
003 25917971 MODULE, STRG WHL INFL RST (EBONY) (LABELED 25917971) (DUAL LEVEL) CK1 (06-43) (Y91, Z88, 19I) 2007-2009 01
003 25917972 MODULE, STRG WHL INFL RST (COCOA) (LABELED 25917972) (DUAL LEVEL) (16.712) CK1 (06-43) (Y91, Z88, 39I) 2007-2009 01
003 25917972 MODULE, STRG WHL INFL RST (COCOA) (LABELED 25917972) (DUAL LEVEL) CK1 (06-43) (Y91, Z88, 39I) 2007-2009 01
004 HARNESS, I/P WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/ПРИБОРНАЯ ПАНЕЛЬ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2007-2009
005 21996989 TAG, INFL RST I/P MDL CAUTION (HANGING) CK1, 2 (AL0) 2007-2009 01
006 SWITCH, I/P INFL RST MDL 2007-2009
007 03530297 ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (INFL RST VEH ROLLOVER SEN) 2007-2009 03
008 25815382 SENSOR, INFL RST VEH ROLLOVER CK1, 2 (06) (ASF) 2007-2008 01
009 HARNESS, BODY WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/КУЗОВ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2007-2009
010 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (INFL RST SEN DIAGN MDL) 2007-2009 03
011 15892530 MODULE, INFL RST SEN DIAGN CK1, 2 (06) (ASF) 2008-2008 01
011 15892531 MODULE, INFL RST SEN DIAGN CK1, 2 (06) (EXC ASF) 2008-2008 01
012 HARNESS, FWD LP WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/FRONT LAMP ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (HAS ADDITIONAL CIRCUIT IN UBEC CONN) 2007-2009
013 15854647 SENSOR, F/END INFL RST DISCRM (W/OEM 15854647) (FOR 2ND DES SEE 25896408) CK1, 2 (06) (1ST DES) 2008-2008 02
013 25896408 SENSOR, F/END INFL RST DISCRM (W/OEM 25896408) (FOR 1ST DES SEE 15854647) CK1, 2 (06) (2ND DES) 2008-2008 02
014 22625546 INDICATOR, INFL RST I/P MDL (W/WORDS ON AND OFF FOR AIRBAG) (14.865) CK1, 2, 3 (EXC UC2, U19) 2007-2008 01
014 22627868 INDICATOR, INFL RST I/P MDL (W/AIRBAG SYMBOLS FOR ON AND OFF) (14.865) CK1, 2, 3 (U19) (EXPORT) 2007-2009 01
015 КОНСОЛЬ, RF (СМ. ГРУППУ 16.000 ROOF КОНСОЛЬ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2007-2009
016 HARNESS, JUMPER) (СМ. ГРУППУ 16.000 ROOF КОНСОЛЬ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2007-2009
