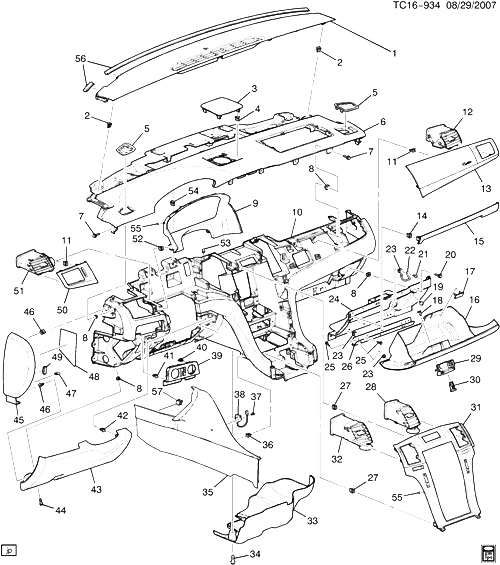

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25903822 |
PANEL, I/P UPR TR (W/ W/S DEFR NOZ GRL) (INCLS 2, 56) (EBONY)
| CK1, 2, 3 (19I, 22I, 31I, 84I, 85I) |
2007-2009 |
01 |
|
| 001 |
25903825 |
PANEL, I/P UPR TR (W/ W/S DEFR NOZ GRL) (INCLS 2, 56) (COCOA) |
CK1, 2 (30I, 39I, 41I) |
2008-2008 |
01 |
| 002 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 1)
|
2007-2009 |
07 |
|
| 003 |
15221850 |
GRILLE, RDO FRT SPKR (INCLS 4) (EBONY) |
CK1 (06-36) (Z75, 19I) |
2007-2009 |
01 |
| 003 |
15221851 |
GRILLE, RDO FRT SPKR (INCLS 4) (COCOA) |
CK1 (06-36) (Z75, 30I, 41I) |
2008-2008 |
01 |
| 004 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 3)
|
2007-2009 |
04 |
|
| 005 |
15233191 |
GRILLE, SI WDO DEFG OTLT (GRAY) (*KIT2) |
CK109, 2 (06) (AM8) (EXC 5T5) |
2007-2008 |
01 |
| 005 |
15813116 |
GRILLE, SI WDO DEFG OTLT (EBONY) (*KIT2) |
CK1 (Z75, 19I) |
2007-2009 |
01 |
| 005 |
15813117 |
GRILLE, SI WDO DEFG OTLT (COCOA) (*KIT2) |
CK1 (Z75, 30I) |
2007-2008 |
01 |
| 005 |
15813117 |
GRILLE, SI WDO DEFG OTLT (COCOA) (*KIT2) |
CK1 (ULT, Z75, 41I) |
2008-2009 |
01 |
| 005 |
15813143 |
GRILLE, SI WDO DEFG OTLT (EBONY) (*KIT2) |
CK1 (Z75, 19I) |
2007-2009 |
01 |
| 005 |
15813144 |
GRILLE, SI WDO DEFG OTLT (COCOA) (*KIT2) |
CK1 (Z75, 30I) |
2007-2008 |
01 |
| 005 |
15813144 |
GRILLE, SI WDO DEFG OTLT (COCOA) (*KIT2) |
CK1 (ULT, Z75, 41I) |
2008-2009 |
01 |
| 006 |
15813113 |
PANEL, I/P UPR TR (EBONY) (W/O GRILLES) (*KIT2) |
CK1 (Z75, 19I) |
2007-2009 |
01 |
| 006 |
15813114 |
PANEL, I/P UPR TR (COCOA) (W/O GRILLES) (*KIT2) |
CK1 (Z75, 30I, 39I) |
2007-2009 |
01 |
| 007 |
11589012 |
БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (I/P UPR TR PAD) (9.665)
|
2007-2009 |
08 |
|
| 008 |
11610157 |
ГАЙКА, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 10) (10.701)
|
2007-2009 |
08 |
|
| 009 |
25914313 |
PLATE, I/P CSTR TR (INCLS 52, 55) (EBONY) |
CK1 (06) (ULT, Z75, 41I) |
2007-2008 |
01 |
| 009 |
25914313 |
PLATE, I/P CSTR TR (INCLS 52, 55) (EBONY) |
CK1 (Z75, 19I, 30I) |
2007-2008 |
01 |
| 010 |
15876609 |
PANEL, I/P LWR TR (INCLS 8, 53) (COCOA) |
CK1 (06) (ULT, Z75, 41I) |
2008-2008 |
01 |
| 010 |
15941681 |
PANEL, I/P LWR TR (INCLS 8, 53) (EBONY) |
CK1 (Z75, 19I) |
2007-2009 |
01 |
| 010 |
15941682 |
PANEL, I/P LWR TR (INCLS 8, 53) (LT CASHMERE) |
CK1 (Z75, 30I) |
2007-2008 |
01 |
| 011 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 13, 50)
|
2007-2009 |
08 |
|
| 012 |
25976634 |
DEFLECTOR, I/P OTR AIR OTLT (PART OF 13) (EBONY) |
CK1 (Z75) |
2007-2009 |
01 |
| 013 |
15933153 |
PLATE, I/P TR (INCLS 11, 12) (RUBY)
| CK1 (AX4, Z75, 19I) (EXPORT) |
2007-2009 |
01 |
|
| 013 |
15933153 |
PLATE, I/P TR (INCLS 11, 12) (RUBY)
| CK1 (Z75, 19I) (EXC HP2) |
2007-2009 |
01 |
|
| 013 |
15933154 |
PLATE, I/P TR (INCLS 11, 12) (CHOCOLATE)
| CK1 (Z75, 30I) |
2007-2008 |
01 |
|
| 013 |
25957799 |
PLATE, I/P TR (INCLS 11, 12) (OLIVE) |
CK1 (06) (ULT, Z75, 41I) |
2008-2008 |
01 |
| 014 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 15)
|
2007-2009 |
03 |
|
| 015 |
15854787 |
COVER, I/P COMPT ACC HOLE (INCLS 14) (EBONY) (GLOVE BOX)
| CK1, 2, 3 (19I, 22I, 30I, 31I, 33I, 39I, 41I, 83I, 84I, 85I, 88I) |
2008-2008 |
01 |
|
| 016 |
|
DOOR, I/P COMPT (*KIT1) |
|
2007-2008 |
|
| 017 |
15854854 |
BUMPER, I/P COMPT DR STOP (BIN) (*KIT1) (16.110) |
CK1, 2, 3 |
2007-2009 |
01 |
| 018 |
11609509 |
SCREW, LG RD WA HD, C/R, HI-LO, 4.2X1.41X13, 11.35-OD, B PT, 6010, GMW4205 (I/P COMPT DR) (*KIT1) |
|
2007-2009 |
03 |
| 019 |
15683368 |
BUMPER, I/P COMPT (8.80 DIA) (CLOSED-STOP) (FRAME) (*KIT1) (16.650) |
CK1, 2, 3 (X88, Z75, Z88) |
2007-2009 |
02 |
| 020 |
11589012 |
БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (I/P COMPT DR) (9.665)
|
2007-2009 |
05 |
|
| 021 |
11609539 |
SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (I/P COMPT DR LAT STKR) (*KIT1)
|
2007-2009 |
02 |
|
| 022 |
|
STRIKER, I/P COMPT DR LK (*KIT1) |
|
2007-2008 |
|
| 023 |
11610157 |
ГАЙКА, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (I/P LWR TIE BAR) (*KIT1) (10.701)
|
2007-2009 |
05 |
|
| 024 |
|
FRAME, I/P COMPT DR OPG (*KIT1) |
|
2007-2008 |
|
| 025 |
11589015 |
БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (I/P COMPT DR HGE) (*KIT1)
|
2007-2009 |
05 |
|
| 026 |
|
HINGE, I/P COMPT DR (*KIT1) |
|
2007-2008 |
|
| 027 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (I/P ACSRY CTR TR PLT) (*KIT3)
|
2007-2009 |
07 |
|
| 028 |
25976636 |
DEFLECTOR, I/P CTR AIR OTLT (EBONY) (*KIT3)
| CK1 (Z75, 19I, 30I) |
2007-2008 |
01 |
|
| 028 |
25976636 |
DEFLECTOR, I/P CTR AIR OTLT (EBONY) (*KIT3)
| CK1 (ULT, Z75, 41I) |
2008-2009 |
01 |
|
| 029 |
13502637 |
LATCH, I/P COMPT DR (EBONY) (W/LOCK) (PO DR COMPMNT ASM) (*KIT1) |
CK1, 2, 3 (19I, 22I, 84I, 85I) |
2007-2008 |
01 |
| 029 |
13502800 |
LATCH, I/P COMPT DR (LINEN) (W/LOCK) (*KIT1) (10.268) (BUILT PRIOR TO 2/25/08) (FOR 2ND DES SEE 25960447) |
CK1 (06) (ULT, Z75, 41I) (1ST DES) |
2008-2008 |
01 |
| 029 |
15296557 |
LATCH, I/P COMPT DR (CASHMERE) (W/LOCK) (*KIT1) (10.268) |
CK1, 2, 3 (31I, 33I, 39I) |
2007-2009 |
01 |
| 029 |
25960447 |
LATCH, I/P COMPT DR (LINEN) (W/LOCK) (*KIT1) (10.268) (BUILT 2/25/08 AFTER) (FOR 1ST DES SEE 13502800) |
CK1 (06) (ULT, Z75, 41I) (2ND DES) |
2008-2008 |
01 |
| 029 |
25965476 |
LATCH, I/P COMPT DR (LT CASHMERE) (W/LOCK) (*KIT1) |
CK1 (Z75, 30I) |
2007-2008 |
01 |
| 030 |
15794823 |
CYLINDER, I/P COMPT DR LK
| CK1, 2, 3 |
2007-2009 |
01 |
|
| 031 |
15876615 |
PLATE, I/P ACSRY CTR TR (PLATINUM) (*KIT3) |
CK1 (06) (ULT, Z75, 41I) |
2008-2008 |
01 |
| 031 |
25878605 |
PLATE, I/P ACSRY CTR TR (RUBY BURLWOOD) (W/O DEFLECTORS) (*KIT3)
| CK1 (Z75, 19I) |
2007-2009 |
01 |
|
| 031 |
25878606 |
PLATE, I/P ACSRY CTR TR (CHOCOLATE BURL) (W/O DEFLECTORS) (*KIT3) |
CK1 (Z75, 30I, 39I) |
2007-2009 |
01 |
| 032 |
25976638 |
DEFLECTOR, I/P CTR AIR OTLT (EBONY) (*KIT3)
| CK1 (Z75, 19I, 30I) |
2008-2008 |
01 |
|
| 032 |
25976638 |
DEFLECTOR, I/P CTR AIR OTLT (EBONY) (*KIT3)
| CK1 (ULT, Z75, 41I) |
2008-2009 |
01 |
|
| 033 |
10365827 |
INSULATOR, I/P (W/O FELT TAPE) |
CK1, 2, 3 (EXC D07) |
2007-2009 |
01 |
| 033 |
25790726 |
INSULATOR, I/P (W/FELT TAPE) |
CK1, 2, 3 (D07) |
2007-2009 |
01 |
| 034 |
11609370 |
BOLT-HWH, M4.2X1.41X20, HI - LOW THD, , OD 12, 6010 STL, GMW4205, TAP (I/P INSL) (9.667) |
|
2007-2009 |
03 |
| 035 |
15238666 |
PANEL, F/FLR CNSL SI TR FRT (INCLS 36) (EBONY) (16.081) |
CK1 (Z75, 19I) |
2007-2009 |
01 |
| 035 |
15238667 |
PANEL, F/FLR CNSL SI TR FRT (INCLS 36) (CASHMERE) (16.081) |
CK1 (Z75, 30I) |
2007-2008 |
01 |
| 035 |
15876585 |
PANEL, F/FLR CNSL SI TR FRT (INCLS 36-38, 57) (LINEN) |
CK1 (06) (ULT, Z75, 41I) |
2008-2008 |
01 |
| 035 |
15876587 |
PANEL, F/FLR CNSL SI TR FRT (INCLS 36) (LINEN) |
CK1 (06) (ULT, Z75, 41I) |
2008-2008 |
01 |
| 035 |
15923060 |
PANEL, F/FLR CNSL SI TR FRT (INCLS 36-38, 57) (EBONY) (16.081) |
CK1 (Z75, 19I) |
2007-2009 |
01 |
| 035 |
15923061 |
PANEL, F/FLR CNSL SI TR FRT (INCLS 36-38, 57) (CASHMERE) (16.081) |
CK1 (Z75, 30I) |
2007-2008 |
01 |
| 036 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 35)
|
2007-2009 |
04 |
|
| 037 |
11588920 |
SCREW, W/RND WA, M3.5X1.59X9.5, 6 THD, 7 O.D., GM512M, GMW3044 (PART OF 35) |
|
2007-2009 |
02 |
| 038 |
15240415 |
MICROPHONE, RDO VOL COMP INTR NOISE (PART OF 35) |
CK1 |
2007-2008 |
01 |
| 039 |
15221547 |
PLATE, HDLP SW TR (INCLS 40, 41) (EBONY) |
CK1 (06-36) (Z75, 19I, 30I) |
2007-2008 |
01 |
| 039 |
15221547 |
PLATE, HDLP SW TR (INCLS 40, 41) (EBONY) |
CK1 (06-36) (Z75, 41I) |
2008-2008 |
01 |
| 041 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 39)
|
2007-2009 |
02 |
|
| 042 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 43)
|
2007-2009 |
03 |
|
| 043 |
15856685 |
BOLSTER, I/P DRVR KNEE (INCLS 42) (EBONY)
| CK1, 2 (06-36) (19I, 22I, 84I) (EXC JL1) |
2007-2009 |
01 |
|
| 043 |
15856685 |
BOLSTER, I/P DRVR KNEE (INCLS 42) (EBONY)
| CK1, 2 (06-36) (19I, 22I, 84I) (EXC JL1, JNC) |
2007-2009 |
01 |
|
| 043 |
15856686 |
BOLSTER, I/P DRVR KNEE (INCLS 42) (CASHMERE) |
CK1, 2 (06-36) (31I, 33I, 39I) |
2007-2008 |
01 |
| 043 |
15870179 |
BOLSTER, I/P DRVR KNEE (INCLS 42) (LT CASHMERE) |
CK1 (06-36) (30I) |
2007-2008 |
01 |
| 043 |
15876573 |
BOLSTER, I/P DRVR KNEE (INCLS 42) (LINEN) |
CK1 (06) (ULT, Z75, 41I) (EXC JL1) |
2008-2008 |
01 |
| 044 |
11589012 |
БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (I/P DRVR KNEE BOLS) (9.665)
|
2007-2009 |
02 |
|
| 045 |
25826956 |
COVER, I/P FUSE BLK ACC HOLE (INCLS 46-49) (EBONY)
| CK1, 2, 3 (19I, 22I, 31I, 84I, 85I) |
2008-2008 |
01 |
|
| 045 |
25826960 |
COVER, I/P FUSE BLK ACC HOLE (INCLS 46-49) (LT CASHMERE) |
CK1, 2, 3 (30I) |
2008-2008 |
01 |
| 045 |
25855840 |
COVER, I/P FUSE BLK ACC HOLE (INCLS 46-49) (EBONY)
| CK1, 2, 3 (19I, 22I, 31I, 84I, 85I) |
2008-2009 |
01 |
|
| 045 |
25855843 |
COVER, I/P FUSE BLK ACC HOLE (INCLS 46-49) (COCOA) |
CK1 (39I) |
2008-2008 |
01 |
| 045 |
25855844 |
COVER, I/P FUSE BLK ACC HOLE (INCLS 46-49) (LT CASHMERE) |
CK1 (30I) |
2008-2008 |
01 |
| 045 |
25896365 |
COVER, I/P FUSE BLK ACC HOLE (INCLS 46-49) (LINEN) |
CK1, 2, 3 (41I) |
2008-2008 |
01 |
| 045 |
25896366 |
COVER, I/P FUSE BLK ACC HOLE (INCLS 46-49) (LINEN) |
CK1 (41I) |
2008-2009 |
01 |
| 046 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 45)
|
2007-2009 |
06 |
|
| 047 |
12092079 |
FUSE, 10A, MINI, RED (PART OF 45) |
|
2007-2009 |
01 |
| 047 |
88909749 |
FUSE, 3A, MINI, VIOLET (PART OF 45) (8.965) (ACDelco #ATM3-25) |
|
2007-2009 |
01 |
| 047 |
88909754 |
FUSE, 15A, MINI, BLUE (PART OF 45) (ACDelco #ATM15-25)
|
2007-2009 |
01 |
|
| 047 |
88909755 |
FUSE, 20A, MINI, YELLOW (PART OF 45) (ACDelco #ATM20-25)
|
2007-2009 |
01 |
|
| 047 |
88909756 |
FUSE, 25A, MINI, CLEAR (PART OF 45) (ACDelco #ATM25-25)
|
2007-2009 |
01 |
|
| 048 |
15839682 |
LABEL, FUSE BLK IDENT (PART OF 45) |
CK1, 2, 3 |
2007-2008 |
01 |
| 049 |
12084791 |
PULLER, FUSE (PART OF 45) (MINI) (I/P COVER) |
CK1, 2, 3 |
2007-2009 |
01 |
| 050 |
15863360 |
PLATE, I/P TR (INCLS 11, 51) (RUBY) |
CK1 (Z75, 19I) |
2007-2009 |
01 |
| 050 |
15863361 |
PLATE, I/P TR (INCLS 11, 51) (CHOCOLATE) |
CK1 (Z75, 30I, 39I) |
2007-2009 |
01 |
| 050 |
15876619 |
PLATE, I/P TR (INCLS 11, 51) (BURL) |
CK1 (06) (ULT, Z75, 41I) |
2008-2008 |
01 |
| 051 |
25976632 |
DEFLECTOR, I/P OTR AIR OTLT (PART OF 50) (EBONY) |
CK1 (Z75) |
2007-2009 |
01 |
| 052 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 9)
|
2007-2009 |
04 |
|
| 053 |
11513599 |
ГАЙКА, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (PART OF 10) (ACDelco #11513599) |
|
2007-2009 |
04 |
| 054 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (I/P UPR TR PLT) (*KIT2)
|
2007-2009 |
05 |
|
| 055 |
25603681 |
INSULATOR, I/P CSTR TR PLT (PART OF 9) (BLACK/RUBBER) (*KIT3) |
CK1 (Z75) |
2007-2009 |
06 |
| 056 |
|
SEAL, I/P UPR T/PNL (PART OF 1) |
|
2007-2008 |
|
| 057 |
11562257 |
RETAINER, I/P LWR TR PAD BRKT (PUSH ON) (PART OF 35) (19.5 X 30.4 X 1.8) (14.683) |
CK1 (Z75) |
2007-2009 |
03 |
| K01 |
25965502 |
DOOR, I/P COMPT (INCLS 16-19, 21-26, 29) (LINEN) |
CK1 (06) (ULT, Z75, 41I) |
2008-2008 |
01 |
| K01 |
25965503 |
DOOR, I/P COMPT (INCLS 16-19, 21-26, 29) (EBONY) |
CK1 (Z75, 19I) |
2007-2009 |
01 |
| K01 |
25965504 |
DOOR, I/P COMPT (INCLS 16-19, 21-26, 29) (CASHMERE) |
CK1 (Z75, 30I) |
2007-2008 |
01 |
| K02 |
15876611 |
PANEL, I/P UPR TR (INCLS 5, 6, 54) (COCOA) (W/LINEN TRIM) |
CK1 (06) (ULT, Z75, 41I) |
2008-2008 |
01 |
| K02 |
15929999 |
PANEL, I/P UPR TR (INCLS 5, 6, 54) (EBONY) (CADILLAC) |
CK1 (Z75, 19I) |
2007-2009 |
01 |
| K02 |
15930000 |
PANEL, I/P UPR TR (INCLS 5, 6, 54) (COCOA) (W/CASHMERE TRIM) |
CK1 (Z75, 30I) |
2007-2008 |
01 |
| K03 |
15876615 |
PLATE, I/P ACSRY CTR TR (INCLS 27, 28, 31, 32, 55) (PLATINUM) |
CK1 (06) (ULT, Z75, 41I) |
2008-2008 |
01 |
| K03 |
25878602 |
PLATE, I/P ACSRY CTR TR (INCLS 27, 28, 31, 32, 55) (RUBY) (W/PLATE DEFLECTORS) |
CK1 (Z75, 19I) |
2008-2009 |
01 |
| K03 |
25878603 |
PLATE, I/P ACSRY CTR TR (INCLS 27, 28, 31, 32) (CHOCOLATE BURL) (W/DEFLECTORS)
| CK1 (Z75, 30I, 39I) |
2007-2009 |
01 |
|
