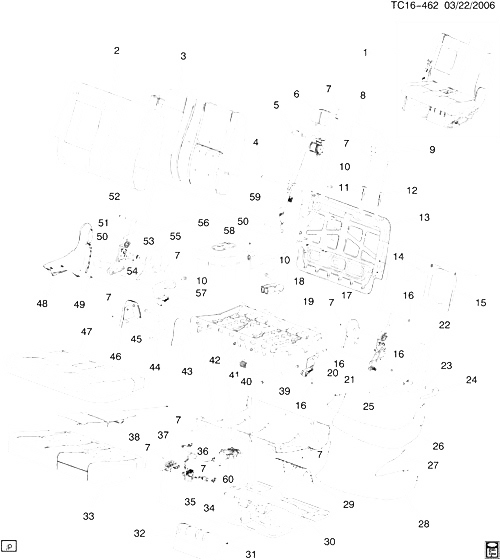

(TC16-462) - 2007-2009 CK109,2(06) ЗАДНЕЕ СИДЕНЬЕ/BENCH-60% SIDE (AM8, POWER FOLDING ARS) CADILLAC - ESCALADE ESV (AWD) 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 SEAT, RR (ONLY AVAILABLE DURING CURRENT MODEL YEAR) 2007-2008
002 15291649 COVER, R/SEAT BK CUSH (CASHMERE) CK1 (06) (AM8, KA6, Y91, Z88, 394) 2007-2008 01
002 15291660 COVER, R/SEAT BK CUSH (EBONY) CK1 (06) (AM8, KA6, Z75, 194) (EXC CZ2) 2007-2009 01
002 15865521 COVER, R/SEAT BK CUSH (EBONY) CK1, 2 (06) (AM8, 193) 2007-2008 01
002 15865522 COVER, R/SEAT BK CUSH (CASHMERE) CK1, 2 (06) (AM8, 313, 333) 2007-2008 01
002 15865523 COVER, R/SEAT BK CUSH (TITANIUM) CK1, 2 (06) (AM8, 833) 2007-2008 01
002 15939171 COVER, R/SEAT BK CUSH (EBONY/TITANIUM) CK1, 2 (06) (AM8, 843) 2007-2009 01
002 15939172 COVER, R/SEAT BK CUSH (EBONY/MOROCCO) CK1, 2 (06) (AM8, 223) 2007-2008 01
002 25899577 COVER, R/SEAT BK CUSH (CASHMERE) CK1 (06) (AM8, CZ2, KA6, Z75, 304) 2007-2008 01
002 25899580 COVER, R/SEAT BK CUSH (CASHMERE) CK1 (06) (AM8, KA6, Z75, 304) 2007-2008 01
002 25928760 COVER, R/SEAT BK CUSH (EBONY) CK1 (06) (AM8, KA6, Y91, Z88, 194) 2007-2008 01
003 15291597 PAD, R/SEAT BK CUSH CK1, 2 (06) (AM8) (EXC 19V, 5T5) 2007-2009 01
003 15914200 PAD, R/SEAT BK CUSH CK1, 2 (06) (AM8, 5T5) 2007-2009 01
004 11562382 БОЛТ, HFH, M10X1.5X130, 26 THD, 22.3 OD, 10.9, 7114M, MACH, MAT-PT (R/SEAT BK CUSH FRM) 2007-2009 01
005 15289969 BRACKET, R/SEAT CTR BELT (RETR SI) CK1, 2 (06) (AM8) 2007-2009 01
006 15279450 PROTECTOR, R/SEAT SHLDR BELT (BLACK) CK1, 2 (06) 2007-2009 01
007 11570116 SCREW -PAN HD, M6X1X10, 10 THD, 12 OD, STL SAE J1237, S424, TAPTITE ITE (R/SEAT LAT FIN CVR) (8.913) 2007-2009 14
008 COVER, R/SEAT H/RST SUPT (PART OF 9) 2007-2009
009 15824672 RESTRAINT, R/SEAT HD (INCLS 8) (EBONY) CK1 (06) (AM8, 194) 2007-2009 02
009 15824674 RESTRAINT, R/SEAT HD (INCLS 8) (CASHMERE) CK1 (06) (AM8, 304) 2007-2008 02
009 15904738 RESTRAINT, R/SEAT HD (INCLS 8) (EBONY) CK109, 2 (06) (AM8, 193, 223, 843) 2007-2008 02
009 15904739 RESTRAINT, R/SEAT HD (INCLS 8) (CASHMERE) CK109, 2 (06) (AM8, 313, 333) 2007-2008 02
009 25928791 RESTRAINT, R/SEAT HD (INCLS 8) (CASHMERE) CK1 (06) (AM8, 394) 2007-2009 02
010 11562383 БОЛТ, HFH, M12X1.75X30.5, 17 THD, 26.6 OD, 10.9 STL, GMW3359, W/ADH 6175M (R/SEAT LAT) 2007-2009 03
011 15279347 GUIDE, R/SEAT H/RST (EBONY) (W/BUTTON) CK1, 2 (06-36) (19I) 2007-2008 02
011 15279348 GUIDE, R/SEAT H/RST (CASHMERE) (W/BUTTON) CK1, 2 (06-36) (31I, 33I, 39I) 2007-2009 02
011 15279349 GUIDE, R/SEAT H/RST (TITANIUM) (W/BUTTON) CK1, 2 (06-36) (83I) 2007-2009 02
011 15279440 GUIDE, R/SEAT H/RST (CASHMERE) (W/BUTTON) CK1, 2 (06-36) (30I) 2007-2008 02
012 15279351 GUIDE, R/SEAT H/RST (EBONY) (W/O BUTTON) CK1, 2 (06) (19I, 22I, 84I) 2007-2008 02
012 15279352 GUIDE, R/SEAT H/RST (CASHMERE) (W/O BUTTON) CK1, 2 (06-36) (31I, 33I, 39I) 2007-2009 02
012 15279353 GUIDE, R/SEAT H/RST (TITANIUM) (W/O BUTTON) CK1, 2 (06-36) (83I) 2007-2009 02
012 15279441 GUIDE, R/SEAT H/RST (CASHMERE) (W/O BUTTON) CK1 (06) (30I) 2007-2008 02
013 15269762 FRAME, R/SEAT BK CUSH CK1, 2 (06) (AM8) 2007-2009 01
014 15279406 PIN, R/SEAT H/RST ADJ ROD LAT (EBONY) CK1, 2 (06) (AM8, 19I, 22I, 84I, 88I) 2007-2008 02
014 15279407 PIN, R/SEAT H/RST ADJ ROD LAT (CASHMERE) CK1, 2 (06) (AM8, 31I, 33I, 39I) 2007-2008 02
014 15279408 PIN, R/SEAT H/RST ADJ ROD LAT (TITANIUM) CK1, 2 (06) (AM8, 83I) 2007-2009 02
014 15279439 PIN, R/SEAT H/RST ADJ ROD LAT (CASHMERE) CK1, 2 (06) (AM8, 30I) 2007-2008 02
015 15279469 COVER, R/SEAT A/RST SUPT FIN (EBONY) CK1, 2 (06) (AM8, 19I, 22I, 84I) 2007-2008 01
015 15279470 COVER, R/SEAT A/RST SUPT FIN (CASHMERE) CK1, 2 (06) (AM8, 31I, 33I, 39I) 2007-2008 01
015 15279471 COVER, R/SEAT A/RST SUPT FIN (TITANIUM) CK1, 2 (06) (AM8, 83I) 2007-2009 01
015 15279472 COVER, R/SEAT A/RST SUPT FIN (CASHMERE) CK1, 2 (06) (AM8, 30I) 2007-2008 01
016 11562378 BOLT-HFH, M10X1.5X30, 18 THD, 22.3 OD, 10.9, GMW3359, W/ADH GM6175M (R/SEAT LAT) 2007-2009 06
017 15279624 COVER, R/SEAT BK CUSH HGE FIN (EBONY) (OUTBOARD, INNER) (16.674) CK109, 2 (06) (AM8, 19I, 22I, 84I) 2007-2008 01
017 15279625 COVER, R/SEAT BK CUSH HGE FIN (CASHMERE) (OUTBOARD, INNER) (16.674) CK109, 2 (06) (AM8, 31I, 33I, 39I) 2007-2009 01
017 15279626 COVER, R/SEAT BK CUSH HGE FIN (TITANIUM) (OUTBOARD, INNER) (16.674) CK109, 2 (06) (AM8, 83I) 2007-2009 01
017 15279627 COVER, R/SEAT BK CUSH HGE FIN (CASHMERE) (OUTBOARD, INNER) (16.674) CK109 (06) (AM8, 30I) 2007-2008 01
018 19121589 BELT KIT, R/SEAT (BKL SI) (EBONY) (BKL/BKL) CK1, 2 (06) (AM8, 19I, 223, 843) 2007-2009 01
018 19121590 BELT KIT, R/SEAT (BKL SI) (CASHMERE) (BKL/BKL) CK1 (06) (AM8, KA6, Y91, Z75, 304) 2007-2008 01
018 19121591 BELT KIT, R/SEAT (BKL SI) (CASHMERE) (BKL/BKL) CK1, 2 (06) (AM8, 31I, 33I, 394) 2007-2009 01
018 19121592 BELT KIT, R/SEAT (BKL SI) (TITANIUM) (BKL/BKL) CK1, 2 (06) (AM8, 83I) 2007-2009 01
019 15269764 FRAME, R/SEAT CUSH CK1, 2 (06) (AM8) (EXC HP2) 2007-2009 01
020 15275890 LATCH, R/SEAT RSR (OUTBOARD) CK109, 2 (06) (AM8) 2007-2009 01
021 25896455 LATCH, R/SEAT BK CUSH (OUTBOARD) CK1, 2 (06) (AM8) 2007-2009 01
022 15279614 COVER, R/SEAT BK CUSH HGE FIN (INCLS 49) (EBONY) (OUTBOARD, OUTER) (16.674) CK109, 2 (06) (AM8, 19I, 22I, 84I) 2007-2008 01
022 15279615 COVER, R/SEAT BK CUSH HGE FIN (INCLS 49) (CASHMERE) (OUTBOARD, OUTER) (16.674) CK109, 2 (06) (AM8, 31I, 33I, 39I) 2007-2009 01
022 15279616 COVER, R/SEAT BK CUSH HGE FIN (INCLS 49) (TITANIUM) (OUTBOARD, OUTER) (16.674) CK109, 2 (06) (AM8, 83I) 2007-2009 01
022 15279617 COVER, R/SEAT BK CUSH HGE FIN (INCLS 49) (CASHMERE) (OUTBOARD, OUTER) (16.674) CK109 (06) (AM8, 30I) 2007-2008 01
023 RETAINER, R/SEAT ADJR RLR (PART OF 24) 2007-2009
024 15279414 HANDLE, R/SEAT RECL (INCLS 23) (EBONY) CK1, 2 (06) (19I, 22I, 84I) 2007-2008 01
024 15279415 HANDLE, R/SEAT RECL (INCLS 23) (CASHMERE) CK1, 2 (06) (31I, 33I, 39I) 2007-2009 01
024 15279416 HANDLE, R/SEAT RECL (INCLS 23) (TITANIUM) CK1, 2 (06) (83I) 2007-2009 01
024 15279417 HANDLE, R/SEAT RECL (INCLS 23) (CASHMERE) CK1, 2 (06) (30I) 2007-2008 01
025 15275917 CABLE, R/SEAT LAT (INBOARD) (FLOOR LATCH) CK1, 2 (06) (AM8) 2007-2009 01
026 15275916 CABLE, R/SEAT LAT (INBOARD) (SYNCH) CK1, 2 (06) (AM8) 2007-2009 01
027 15275914 CABLE, R/SEAT LAT (OUTBOARD) (FLOOR LATCH) CK1, 2 (06) (AM8) 2007-2009 01
028 15942228 CABLE, R/SEAT BK CUSH LAT CK1, 2 (06) (AM8, ARS) 2007-2009 01
029 15279679 COVER, R/SEAT RSR FIN (EBONY) (REAR) CK109, 2 (06) (AM8, 19I, 22I, 84I) 2007-2008 01
029 15279680 COVER, R/SEAT RSR FIN (CASHMERE) (REAR) CK109, 2 (06) (AM8, 31I, 33I, 39I) 2007-2009 01
029 15279681 COVER, R/SEAT RSR FIN (TITANIUM) (REAR) CK109, 2 (06) (AM8, 83I) 2007-2009 01
029 15279682 COVER, R/SEAT RSR FIN (CASHMERE) (REAR) CK109 (06) (AM8, 30I) 2007-2008 01
030 15269773 RISER, R/SEAT CK109, 2 (06) (AM8) 2007-2009 01
031 RETAINER, R/SEAT FLR FIL T/PNL (PART OF 32) 2007-2009
032 15824842 COVER, R/SEAT RSR FIN (INCLS 31) (EBONY) (FRONT) CK109, 2 (06) (AM8, 19I, 22I, 84I) 2007-2008 01
032 15824843 COVER, R/SEAT RSR FIN (INCLS 31) (CASHMERE) (FRONT) CK109, 2 (06) (AM8, 31I, 33I, 39I) 2007-2009 01
032 15824844 COVER, R/SEAT RSR FIN (INCLS 31) (TITANIUM) (FRONT) CK109, 2 (06) (AM8, 83I) 2007-2009 01
032 15824845 COVER, R/SEAT RSR FIN (INCLS 31) (CASHMERE) (FRONT) K109 (06) (AM8, 30I) 2007-2008 01
033 15291599 PAD, R/SEAT CUSH CK1, 2 (06) (AM8) (EXC HP2) 2007-2009 01
034 11571092 БОЛТ, R/SEAT HGE (M10X1.5X114) CK1, 2 2007-2009 02
036 15279654 PANEL, R/SEAT CUSH TR (EBONY) (16.716) CK109, 2 (06) (AM8, 19I, 22I, 84I) 2007-2008 01
036 15279655 PANEL, R/SEAT CUSH TR (CASHMERE) (16.716) CK109, 2 (06) (AM8, 31I, 33I, 39I) 2007-2008 01
036 15279656 PANEL, R/SEAT CUSH TR (TITANIUM) (16.716) CK109, 2 (06) (AM8, 83I) 2007-2009 01
036 15279657 PANEL, R/SEAT CUSH TR (CASHMERE) (16.716) K109 (06) (AM8, 30I) 2007-2008 01
037 15786704 MODULE, R/SEAT HTR CONT (REQUIRES DEALER PROGRAMMING) (11.500) CK1, 2 (06) (EXC AL4) 2007-2009 01
037 15786704 MODULE, R/SEAT HTR CONT (REQUIRES DEALER PROGRAMMING) (11.500) CK1, 2 (06) (EXC AM8) 2007-2009 01
037 25862293 MODULE, R/SEAT HTR CONT (REQUIRES DEALER PROGRAMMING) (11.500) (SERV CMP OF HEATER PKGS) CK1, 2, 3 2007-2009 01
037 25886638 MODULE, R/SEAT HTR CONT CK1, 2 (06) (AM8) 2007-2009 01
039 15930099 STRUT, R/SEAT CK1, 2 (06) (AM8) 2007-2009 01
040 15275900 ПРУЖИНА, R/SEAT RECL (TUMBLE) CK1, 2 (06) (AM8) 2007-2009 01
041 15275902 ПРУЖИНА, R/SEAT RECL (MANDREL) CK1, 2 (06) (AM8) 2007-2009 01
042 11562380 BUSHING, R/SEAT HGE CK1, 2 (06) (AM8) 2007-2009 08
043 15279664 COVER, R/SEAT HGE LWR FIN (EBONY) (PIVOT INBOARD) (16.674) CK109, 2 (06) (AM8, 19I, 22I, 84I) 2007-2008 01
043 15279665 COVER, R/SEAT HGE LWR FIN (CASHMERE) (PIVOT INBOARD) (16.674) CK109, 2 (06) (AM8, 31I, 33I, 39I) 2007-2008 01
043 15279666 COVER, R/SEAT HGE LWR FIN (TITANIUM) (PIVOT INBOARD) (16.674) CK109, 2 (06) (AM8, 83I) 2007-2009 01
043 15279667 COVER, R/SEAT HGE LWR FIN (CASHMERE) (PIVOT INBOARD) (16.674) CK109 (06) (AM8, 30I) 2007-2008 01
044 15269778 BRACKET, R/SEAT CK109, 2 (06) (AM8) 2007-2009 01
045 11562381 БОЛТ, R/SEAT BK CUSH LAT PIV (M12X1.75X40) CK1, 2 (06) (AM8) 2007-2009 02
046 15279669 COVER, R/SEAT HGE LWR FIN (EBONY) (PIVOT INBOARD) (16.674) CK109, 2 (06) (AM8, 19I, 22I, 84I) 2007-2008 01
046 15279670 COVER, R/SEAT HGE LWR FIN (CASHMERE) (PIVOT INBOARD) (16.674) CK109, 2 (06) (AM8, 31I, 33I, 39I) 2007-2008 01
046 15279671 COVER, R/SEAT HGE LWR FIN (TITANIUM) (PIVOT INBOARD) (16.674) CK109, 2 (06) (AM8, 83I) 2007-2009 01
046 15279672 COVER, R/SEAT HGE LWR FIN (CASHMERE) (PIVOT INBOARD) (16.674) CK109 (06) (AM8, 30I) 2007-2008 01
047 15291655 COVER, R/SEAT CUSH (CASHMERE) CK1 (06) (AM8, KA6, Y91, Z88, 394) 2007-2008 01
047 15291666 COVER, R/SEAT CUSH (EBONY) CK1 (06) (AM8, KA6, Z75, 194) (EXC CZ2) 2007-2008 01
047 15865529 COVER, R/SEAT CUSH (EBONY) CK1, 2 (06) (AM8, 193) 2007-2008 01
047 15865530 COVER, R/SEAT CUSH (CASHMERE) CK1, 2 (06) (AM8, 313, 333) 2007-2008 01
047 15865531 COVER, R/SEAT CUSH (TITANIUM) CK1, 2 (06) (AM8, 833) 2007-2008 01
047 15939175 COVER, R/SEAT CUSH (EBONY/TITANIUM) CK1, 2 (06) (AM8, 843) 2007-2008 01
047 15939176 COVER, R/SEAT CUSH (EBONY/MOROCCO) CK1, 2 (06) (AM8, 223) 2007-2008 01
047 25899568 COVER, R/SEAT CUSH (CASHMERE) CK1 (06) (AM8, KA6, Z75, 304) 2007-2008 01
048 15279634 COVER, R/SEAT BK CUSH HGE FIN (EBONY) (INBOARD, OUTER) (16.674) CK109, 2 (06) (AM8, 19I, 22I, 84I) 2007-2008 01
048 15279635 COVER, R/SEAT BK CUSH HGE FIN (CASHMERE) (INBOARD, OUTER) (16.674) CK109, 2 (06) (AM8, 31I, 33I, 39I) 2007-2009 01
048 15279636 COVER, R/SEAT BK CUSH HGE FIN (TITANIUM) (INBOARD, OUTER) (16.674) CK109, 2 (06) (AM8, 83I) 2007-2009 01
048 15279637 COVER, R/SEAT BK CUSH HGE FIN (CASHMERE) (INBOARD, OUTER) (16.674) CK109 (06) (AM8, 30I) 2007-2008 01
049 RETAINER, R/SEAT FLR FIL T/PNL (PART OF 22) 2007-2009
050 11562376 SCREW-PAN HD, M12X1.75X55, 42 THD, 27 OD, 10.9, S424, W/ADH GM6175M (R/SEAT LAT) 2007-2009 02
051 25896456 LATCH, R/SEAT BK CUSH (INBOARD) CK1, 2 (06) (AM8) 2007-2009 01
052 11562377 BOLT-HFH, M10X1.5X55, 43.45 THD, 22.3 OD, 10.9, GMW3359, W/ADH GM6175M (R/SEAT LAT) 2007-2009 02
053 15279464 KNOB, R/SEAT LAT (EBONY) (USED IN PLACE OF ALL COLORS) (16.716) CK1, 2, 3 2007-2009 02
054 11562384 ГАЙКА, HFH, M4X.7 THD, 4.75 THK, 10.5 OD, GM510M (9)STL, GM4435M-CODE A (R/SEAT FLR FIL T/PNL) 2007-2009 02
055 15279644 COVER, R/SEAT BK CUSH HGE FIN (EBONY) (INBOARD, INNER) (16.674) CK109, 2 (06) (AM8, 19I, 22I, 84I) 2007-2009 01
055 15279645 COVER, R/SEAT BK CUSH HGE FIN (CASHMERE) (INBOARD, INNER) (16.674) CK109 (06) (AM8, 31I, 33I, 39I) 2007-2009 01
055 15279646 COVER, R/SEAT BK CUSH HGE FIN (TITANIUM) (INBOARD, INNER) (16.674) CK109, 2 (06) (AM8, 83I) 2007-2009 01
055 15279647 COVER, R/SEAT BK CUSH HGE FIN (CASHMERE) (INBOARD, INNER) (16.674) K109 (06) (AM8, 30I) 2007-2008 01
056 15865493 ARMREST, R/SEAT (EBONY) CK1, 2 (06) (AM8, 193, 223, 843) 2007-2008 01
056 15865494 ARMREST, R/SEAT (CASHMERE) CK1, 2 (06) (AM8, 313, 333) 2007-2008 01
056 15865495 ARMREST, R/SEAT (TITANIUM) CK1, 2 (06) (AM8, 833, 836) 2007-2009 01
056 25866393 ARMREST, R/SEAT (CASHMERE) CK1 (06) (AM8, KA6, Z75, 304) 2007-2008 01
056 25908030 ARMREST, R/SEAT (CASHMERE) CK1 (06) (AM8, KA6, Z75, 394) (EXC HP2) 2008-2009 01
057 15275891 LATCH, R/SEAT RSR (INBOARD) CK109, 2 (06) 2007-2009 01
058 11562386 БОЛТ, R/SEAT A/RST (M8X1.25X24) (8.977) CK1, 2 (06) (AM8) 2007-2009 04
059 19151104 BELT KIT, R/SEAT CTR (RETR SI) (EBONY) CK1, 2 (06) (AM8, 19I, 22I, 84I) 2007-2008 01
059 19151105 BELT KIT, R/SEAT CTR (RETR SI) (CASHMERE) CK1, 2 (06) (AM8, 31I, 33I, 39I) 2007-2008 01
059 19151106 BELT KIT, R/SEAT CTR (RETR SI) (TITANIUM) CK1, 2 (06) (AM8, 83I) 2007-2008 01
059 19151107 BELT KIT, R/SEAT CTR (RETR SI) (CASHMERE) CK1 (06) (AM8, KA6, Z75, 304) 2007-2008 01
060 15824751 ACTUATOR, R/SEAT RECL (INCLS CABLE) CK1, 2 (06) (AM8, ARS) 2007-2009 01
