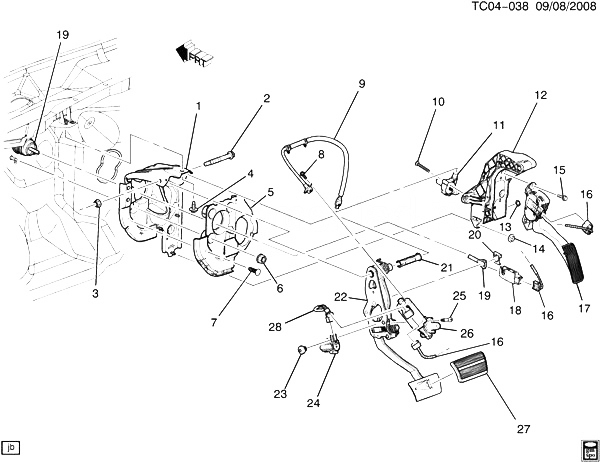

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25863989 |
BRACKET, BRK ACCEL PED (INCLS 5, 7) (ТОРМОЗНАЯ ПЕДАЛЬ) (4.634) |
CK1 (AN3, JD9, JF3, JF7, JF4) |
2008-2009 |
01 |
| 001 |
25863989 |
BRACKET, BRK ACCEL PED (INCLS 5, 7) (ТОРМОЗНАЯ ПЕДАЛЬ) |
CK1 (AN3, JD9, JF3, JF7, JF4) |
2008-2009 |
01 |
| 002 |
15000145 |
БОЛТ, BRK PED PIV (12X1.75X120, 25) |
CK1, 2, 3 |
2008-2009 |
01 |
| 003 |
11514598 |
ГАЙКА, BRK PED PIV (HF 12X1.75) (8.915)
| CK1, 2, 3 |
2008-2009 |
01 |
|
| 004 |
11517182 |
БОЛТ, BRK PED BRKT (M10X1.5X30, 15 THD) (8.900) |
CK1, 2, 3 |
2008-2009 |
01 |
| 005 |
|
INSULATOR, DA PNL (PART OF 1) |
|
2008-2009 |
|
| 006 |
11517996 |
ГАЙКА, P/B BOOS (M10X1.5, 11.2 THK) (8.917)
| CK1, 2, 3 |
2008-2009 |
04 |
|
| 007 |
|
RETAINER, BRK ACCEL CLU PED BRKT INSL (PUSH IN) (PART OF 1) |
|
2008-2009 |
|
| 008 |
|
БОЛТ, PARK BRK CBL (PART OF 22) |
|
2008-2009 |
|
| 009 |
|
CABLE, BRK PED ADJR ACTR (PART OF 22) |
|
2008-2009 |
|
| 010 |
11562023 |
БОЛТ, ELEK THROT ACTR (PAN HEAD, M6X1X40, 15 THD, 12 OD, 10.9 STL, GM4277, HDR PT) |
CK1, 2, 3 |
2008-2009 |
02 |
| 011 |
15123616 |
ACTUATOR PKG, THROT |
CK1, 2, 3 |
2008-2009 |
01 |
| 012 |
25863992 |
BRACKET KIT, ACCEL PED (IF REPL ACCL PDL BRKT W/2-BOLT CBL ATTACHMENT AT ADJ PDL MOTOR, REQUIRES CORRESPONDING BRK PEDAL ASM.) |
CK1 (MYC, M30, JF4) |
2008-2009 |
01 |
| 013 |
11505213 |
ГАЙКА, PUSH ON, M8, 1.96THK, 16.03 O.D., STL, PC (PART OF 17) |
|
2008-2009 |
02 |
| 014 |
15685170 |
ГАЙКА, HEX-HD, W/FL WA, M6X1, 5.5 THK, 9, 7111M, 2MM THK 19 OD WA, NYLOC (ACCEL PED LVR) (8.917) |
|
2008-2009 |
03 |
| 015 |
11516424 |
БОЛТ, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (ACCEL PED LVR)
|
2008-2009 |
02 |
|
| 016 |
25877769 |
HARNESS, FUSE BLK WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/ПРИБОРНАЯ ПАНЕЛЬ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
CK1, 2 (06-36) (JF4) (EXC HP2) |
2008-2008 |
01 |
| 017 |
25832864 |
PEDAL, ACCEL (INCLS 13) (INCLS POSITION SENSOR) |
CK1, 2, 3 |
2008-2009 |
01 |
| 018 |
25981009 |
SWITCH, S/LP (ACDelco #D1539J)
| CK1 (06-36) |
2008-2009 |
01 |
|
| 019 |
|
BOOSTER, P/B (СМ. ГРУППУ 04.000 УСИЛИТЕЛЬ ТОРМОЗОВ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2008-2009 |
|
| 020 |
11569844 |
RETAINER, BRK PED PUSH ROD (WITH BOLT) |
CK1, 2, 3 |
2008-2009 |
01 |
| 021 |
15200851 |
BUSHING, BRK PED PIV
| CK1 (JD9, JF3, JF4, JF7) |
2008-2009 |
01 |
|
| 022 |
25968689 |
PEDAL, BRK (INCLS 8-9, 24-28) (IF REPL BRK PDL W/ 2-BOLT CBL ATTCHMNT AT ADJ PDL MOTOR, REQUIRES ACCEL BRKT KIT W/ CBL, PN 25863992) |
CK1 (AN3, JD9, JF3, JF7, JF4) |
2008-2009 |
01 |
| 023 |
11516424 |
БОЛТ, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (BRK PED POSN SEN)
|
2008-2009 |
02 |
|
| 024 |
88982977 |
SENSOR, BRK PED POSN (PART OF 22) |
CK1, 2, 3 |
2008-2009 |
01 |
| 025 |
|
БОЛТ, MOTOR (PART OF 22) |
|
2008-2009 |
|
| 026 |
|
MOTOR, BRK ACCEL PED ADJR ACTR (PART OF 22) |
|
2008-2009 |
|
| 027 |
88982976 |
PAD, BRK PED (PART OF 22) |
CK1 (JD9, JF3, JF4, JF7, J92) |
2008-2009 |
01 |
| 028 |
|
HARNESS, BRK PED POSN SEN (PART OF 22) |
|
2008-2009 |
|
