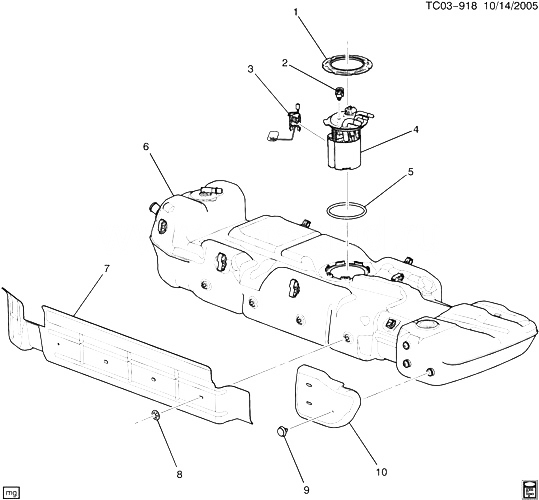

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
10325852 |
RING, FUEL SDR (130 MM OPENING CAM LOCK RING) (3.115) (ACDelco #TR26)
| CK1, 2, 3 |
2008-2009 |
01 |
|
| 002 |
13502903 |
SENSOR, F/TNK PRESS (PART OF 4) (ACDelco #13502903)
| CK109 (06-36) (LC9, LMG, LY5, L76, L92) |
2008-2008 |
01 |
|
| 003 |
19207954 |
SENSOR KIT, FUEL LVL (ACDelco #SK1273) |
CK109 (06-36) (LY5, L76, L92) |
2008-2008 |
01 |
| 004 |
|
MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 2, 5) |
|
2007-2009 |
|
| 004 |
19180801 |
MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 2, 5) (ACDelco #M10132)
| CK109 (06-36) (LY5, L76, L92) |
2008-2008 |
01 |
|
| 004 |
19180801 |
MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 2, 5) (3.107) (ACDelco #M10132)
| CK109 (06-36) (LY5, L76, L92) |
2008-2008 |
01 |
|
| 005 |
22682111 |
SEAL, FUEL SDR (O RING) (PART OF 4) (135.5 MM ID X 147.5MM OD X 6MMTALL) (ACDelco #G41)
| CK1, 2, 3 |
2008-2009 |
01 |
|
| 006 |
25904449 |
TANK, FUEL (31.5 GALLONS)
| CK109 (06-36) (LY5, L76, L92) |
2008-2008 |
01 |
|
| 007 |
15914122 |
SHIELD, F/TNK HT |
CK109 (06-36) (LC9, LMG, LY5, L76, L92) |
2007-2008 |
01 |
| 008 |
10009923 |
ГАЙКА, BOLT RETAINING ПРУЖИНА, M8X1.25, 25 O.D., ZOR (F/TNK SHLD) |
|
2007-2009 |
04 |
| 009 |
15168952 |
RETAINER, F/TNK H/SHLD |
CK1 (06-36) |
2007-2009 |
01 |
| 010 |
15836686 |
SHIELD, F/TNK HT |
CK109 (06-36) (LC9, LMG, LY5, L76, L92) |
2008-2008 |
01 |
