| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15824194 |

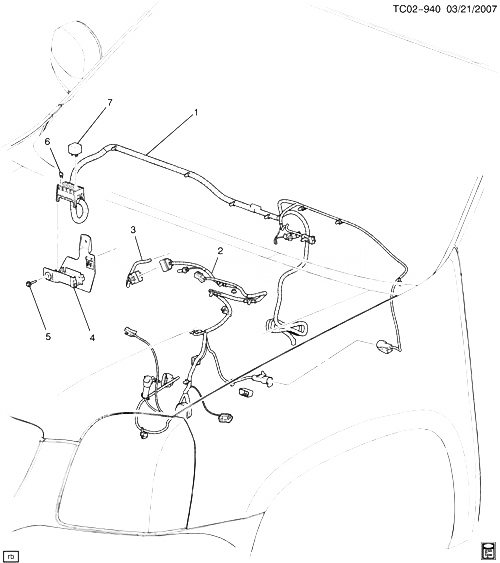

HARNESS, ACSRY PWR FUSE BLK RR WRG HARN EXTN (INCLS 4, 6, 7) |
CK1, 2, 3 (9L4) |
2007-2008 |
01 |
| 003 |
|
HARNESS, I/P WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/INSTURMENT PANEL ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2009 |
|
| 004 |
15888241 |
BRACKET, ACSRY PWR FUSE BLK RR WRG HARN EXTN HARN (PART OF 1) |
CK1, 2, 3 (9L4, 5W4, PPV) |
2007-2009 |
01 |
| 005 |
11589012 |
БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (ACSRY PWR FUSE BLK RR WRG HARN EXTN HARN BRKT) (9.665)
|
2007-2009 |
02 |
|
| 006 |
12092075 |
FUSE, MINI (30A) (GREEN) (PART OF 1) (ACDelco #12092075) |
|
2007-2009 |
04 |
| 007 |
12193604 |
RELAY, ACSRY (MOBILE RADIO) (PART OF 1) (GRAY) (SPST 280 MINI) (4-TERMINAL) (CODE 3604) (9.778) (ACDelco #15-8733) |
CK1, 2, 3 (9L4) |
2007-2009 |
02 |
