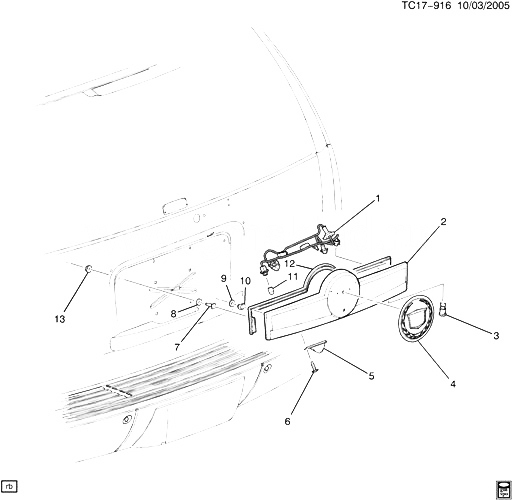

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15862654 |
HARNESS, RR LIC PLT LP WRG |
CK1 (06) (Z75) |
2007-2008 |
01 |
| 001 |
25872958 |
HARNESS, RR LIC PLT LP WRG (2.714) (SERV CMP OF CAMERA PKGS) |
CK1, 2 (06) |
2007-2008 |
01 |
| 002 |
15915680 |
APPLIQUE, L/GATE (INCLS 4, 7-10, 12)
| CK1 (06) (Z75) (EXC UVC) |
2007-2008 |
01 |
|
| 003 |
15798062 |
SWITCH, L/GATE WDO REL (ACDelco #D1994E) |
CK1, 2 (06) (X88, Z88, Z75) |
2007-2008 |
01 |
| 004 |
15905786 |
EMBLEM, L/GATE (PART OF 2) (WREATH CREST)
| CK1 (06) (Z75) |
2007-2008 |
01 |
|
| 005 |
25778786 |
LAMP, RR LIC PLT
| CK1, 2 (06) (X88, Z75, Z88) |
2007-2008 |
02 |
|
| 006 |
11508765 |
SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (RR LIC PLT LP LENS) |
|
2007-2008 |
04 |
| 007 |
|
STUD, L/GATE LWR MLDG (PART OF 2) |
|
2007-2008 |
|
| 008 |
|
SEAL, L/GATE LWR MLDG STUD (PART OF 2) |
|
2007-2008 |
|
| 009 |
|
SEAL, L/GATE LWR MLDG STUD (PART OF 2) |
|
2007-2008 |
|
| 010 |
11562334 |
RETAINER, L/GATE CTR APLQ (PART OF 2) |
CK1 (06) (Z75) |
2007-2008 |
02 |
| 011 |
01999382 |
BULB, (RR LIC PLT LP) (ACDelco #W5WLL) (LONGER LIFE) |
|
2007-2008 |
02 |
| 012 |
|
GASKET, APPLIQUE L/GATE CTR) (PART OF 2) |
|
2007-2008 |
|
| 013 |
03530297 |
ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (L/GATE CTR MLDG) |
|
2007-2008 |
04 |
