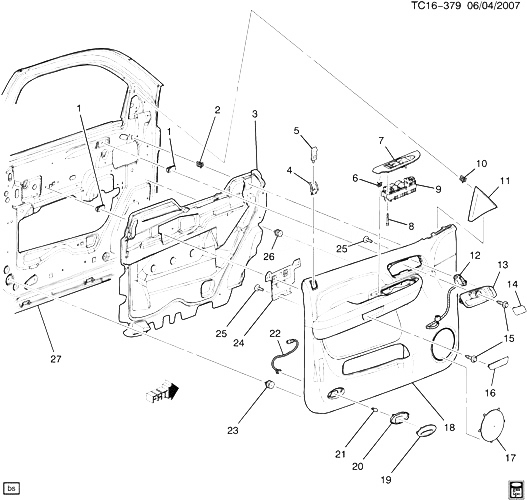

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11609385 |
ГАЙКА, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (FRT S/D TR PNL)
|
2007-2009 |
03 |
|
| 002 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 18)
|
2007-2009 |
01 |
|
| 003 |
15920724 |
DEFLECTOR, FRT S/D WAT (PART OF 18) |
CK1 (06-36) |
2007-2009 |
01 |
| 004 |
|
COVER, FRT S/D LKG ROD OPG (PART OF 18) |
|
2007-2009 |
|
| 005 |
15844616 |
KNOB, FRT S/D LKG ROD (EBONY)
| CK1, 2, 3 (19I, 22I, 31I, 84I) |
2007-2007 |
02 |
|
| 005 |
15844619 |
KNOB, FRT S/D LKG ROD (CASHMERE)
| CK1 (30I) |
2007-2008 |
02 |
|
| 005 |
15844620 |
KNOB, FRT S/D LKG ROD (COCOA) |
CK1 (39I) |
2007-2008 |
02 |
| 006 |
11588650 |
CLIP, 12X14X16.6, GM4345M (DR LK SI WDO RLY (PUSH IN))
|
2007-2009 |
03 |
|
| 007 |
15920631 |
BEZEL, FRT S/D WDO SW (RUBY BURL) |
CK1 (Z75, 19I) |
2007-2008 |
01 |
| 007 |
25924149 |
BEZEL, FRT S/D WDO SW (CHOCOLATE) |
CK1 (Z75, 30I) |
2007-2008 |
01 |
| 008 |
|
БОЛТ, FRT S/D WDO SW BZL |
|
2007-2009 |
|
| 009 |
15906883 |
SWITCH, DR LK SI WDO (W/MIRROR SW)
| CK1 (Z75) |
2007-2008 |
01 |
|
| 010 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 11)
|
2007-2009 |
01 |
|
| 011 |
15849185 |
PANEL, FRT S/D UPR FRT TR (INCLS 10) (CASHMERE) |
CK1 (Z75, 30I) |
2007-2008 |
01 |
| 011 |
25857282 |
PANEL, FRT S/D UPR FRT TR (INCLS 10) (EBONY) |
CK1 (Z75, 19I) |
2007-2009 |
01 |
| 012 |
15198466 |
SWITCH, D/SEAT ADJR MEMORY (PART OF 18) |
CK1 (06-36) (Z75) |
2007-2008 |
01 |
| 012 |
25822439 |
SWITCH, D/SEAT ADJR MEMORY (PART OF 18) |
CK1 (06-36) (Z75) |
2007-2008 |
01 |
| 013 |
15920707 |
HANDLE, FRT S/D I/S (PART OF 18) (EBONY) (W/CHROME HDL)
| CK1 (06-36) (Z75, 19I) |
2007-2009 |
01 |
|
| 013 |
15920708 |
HANDLE, FRT S/D I/S (PART OF 18) (CASHMERE) (W/CHROME HANDLES) |
CK1 (06-36) (Z75, 30I) |
2007-2008 |
01 |
| 014 |
25897906 |
COVER, FRT S/D I/S HDL BZL FIN (EBONY)
| CK1, 2 (06-36) (19I, 22I, 31I, 84I) |
2007-2008 |
01 |
|
| 014 |
25897909 |
COVER, FRT S/D I/S HDL BZL FIN (CASHMERE) |
CK1 (06-36) (30I) |
2007-2008 |
01 |
| 014 |
25897910 |
COVER, FRT S/D I/S HDL BZL FIN (COCOA) |
CK1 (06) (39I, 41I) |
2007-2009 |
01 |
| 015 |
11570136 |
БОЛТ, HEX HD, W/CON SPR WA, M6X1X23, 14 THD, 17 O.D., 8.8, GMW3359 (FRT S/D T/PNL) |
|
2007-2009 |
03 |
| 016 |
15214060 |
COVER, FRT S/D T/PNL (EBONY) |
CK1, 2 (06-36) (19I, 22I, 84I) |
2007-2008 |
01 |
| 016 |
15214061 |
COVER, FRT S/D T/PNL (CASHMERE) |
CK1 (06-36) (33I, 39I) |
2007-2009 |
01 |
| 016 |
15219905 |
COVER, FRT S/D T/PNL (CASHMERE) |
CK1 (06-36) (30I) |
2007-2008 |
01 |
| 017 |
15939207 |
GRILLE, RDO FRT SPKR (PART OF 18) (CASHMERE) (9.665) |
CK1 (06-36) (Z75, 30I) |
2007-2009 |
02 |
| 017 |
15939208 |
GRILLE, RDO FRT SPKR (PART OF 18) (EBONY) (9.665)
| CK1 (06-36) (19I, Z75) |
2007-2008 |
02 |
|
| 018 |
25780089 |
PANEL, FRT S/D TR (INCLS 2-4, 12, 13, 17, 19-26) (EBONY) |
CK1 (06-36) (Z75, 19I) |
2007-2008 |
01 |
| 018 |
25780090 |
PANEL, FRT S/D TR (INCLS 2-4, 12, 13, 17, 19-26) (CASHMERE) |
CK1 (06-36) (Z75, 30I) |
2007-2008 |
01 |
| 019 |
|
LENS, FRT S/D WRNG LP (PART OF 18, 20) |
|
2007-2009 |
|
| 020 |
15876516 |
LAMP, CTSY (INCLS 19) (PART OF 18) (FRT S/D) |
CK1 (06-36) (Z75) |
2007-2008 |
01 |
| 021 |
09425542 |
BULB, LAMP #192 (PART OF 18, 20) (ACDelco #L168) |
|
2007-2009 |
01 |
| 022 |
|
HARNESS, FRT S/D CTSY WRNG LP P/W WRG (PART OF 18) |
|
2007-2009 |
|
| 023 |
11519031 |
RETAINER, PUSH IN, 19.5X26.1X1.8, ACETAL, NATURAL, FOAM SEALER (PART OF 18)
|
2007-2009 |
08 |
|
| 024 |
|
BRACKET, FRT S/D A/RST (PART OF 18) |
|
2007-2009 |
|
| 025 |
|
БОЛТ, FRT S/D TR (PART OF 18) |
|
2007-2009 |
|
| 026 |
11519032 |
RETAINER, PUSH IN, 19.5X28.4X1.8, FITS HOLE 9.1, ACETAL, BLK (PART OF 18)
|
2007-2009 |
03 |
|
| 027 |
25912653 |
DOOR, FRT SI (СМ. ГРУППУ 16.000 АРМАТУРА ПЕРЕДНЕЙ ДВЕРИ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (W/O HINGES)
| CK1, 2 (06-36) (Z75) |
2007-2009 |
01 |
|
