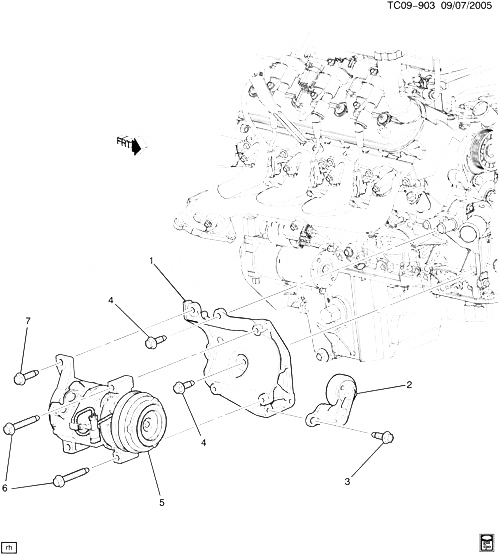

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12554026 |
BRACKET, A/C CMPR |
CK1, 2, 3 (LC9, LH6, LMG, LY2, LY5, LY6, L76, L92, CJ2, CJ3, C67) |
2007-2008 |
01 |
| 002 |
12580196 |
РОЛИК НАТЯЖИТЕЛЬ, A/C CMPR BELT
| CK1, 2, 3 (L92, CJ2, CJ3, C67) |
2007-2008 |
01 |
|
| 003 |
11515767 |
БОЛТ, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (A/C CMPR BELT TENSR) (T/W 12345493)
|
2007-2008 |
02 |
|
| 004 |
11515767 |
БОЛТ, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (A/C CMPR BRKT) (T/W 12345493)
|
2007-2008 |
03 |
|
| 005 |
89024882 |
КОМПРЕССОР KIT, A/C (8.0 OZ. OIL SERVICE COMP KIT) (ACDelco #89024882)
| CK1, 2, 3 (L92, CJ2, CJ3, C67) (EXC C69) |
2007-2007 |
01 |
|
| 005 |
89024905 |
КОМПРЕССОР, A/C (ACDelco #89024905)
| CK1, 2 (LC9, LMG, LY2, LY5, LY6, L76, L92, CJ2, CJ3, C69) |
2007-2007 |
01 |
|
| 006 |
11516109 |
БОЛТ, HFH, REDUCED BODY, M10X1.5X65, 25 THD, 22.3 O.D., HDR PT, 10.9, 7114M (A/C CMPR)
|
2007-2008 |
03 |
|
| 007 |
11516503 |
BOLT-HFH, M10X1.5X45, 33 THD, P-PT, 9.8, 7114M (A/C CMPR) |
|
2007-2008 |
01 |
