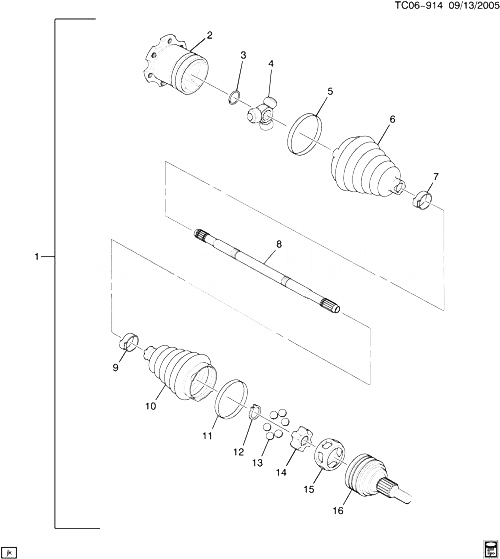

(TC06-914) - 2007-2009 K1 DRIVE SHAFT/FRONT WHEEL CADILLAC - ESCALADE ESV (AWD) 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15868123 SHAFT, FRT WHL DRV (INCLS 2-16) K1 2007-2009 02
002 ШЛАНГИ, FRT WHL DRV SHF TRIPOT JT 2007-2009
003 26056803 RING, FRT WHL DRV SHF TRI-POT JT SPIDER RET (PART OF 4, 6) (6.056) K1 2007-2009 01
004 15295245 JOINT, FRT WHL DRV SHF TRI-POT (INCLS 3) (MUST ALSO ORDER APPROPRIATE BOOT KIT) K1 2007-2009 01
005 26056789 CLAMP, FRT WHL DRV SHF TRI-POT JT BOOT OTR (PART OF 6) K1 2007-2009 01
006 26062615 BOOT KIT, FRT WHL DRV SHF TRI-POT JT (INCLS 3, 5, 7) K1 2007-2009 01
007 07849180 CLAMP, FRT WHL DRV SHF TRI-POT JT BOOT INR (PART OF 6) (34.60MM DIA, 10MM THK) (6.060) K1 2007-2009 01
008 SHAFT, FRT WHL DRV 2007-2009
009 07849180 CLAMP, FRT WHL DRV SHF CV JT BOOT INR (PART OF 10) (34.60MM DIA, 10MM THK) (6.060) K1 2007-2009 01
010 15868187 BOOT KIT, FRT WHL DRV SHF CV JT (INCLS 9, 11, 12) K1 2007-2009 01
011 26007601 CLAMP, FRT WHL DRV SHF CV JT BOOT OTR (PART OF 10) (105.91MM DIA) (6.060) K1 2007-2009 01
012 07849284 RING, FRT WHL DRV SHF CV JT INR RACE RET (PART OF 10, 14) K1 2007-2009 01
013 BALL, FRT WHL DRV SHF CV JT (PART OF 14) 2007-2009
014 26057639 JOINT, FRT WHL DRV SHF CV (INCLS 12, 13, 15) (MUST ALSO ORDER APPROPRIATE BOOT KIT) K1 2007-2009 02
015 CAGE, FRT WHL DRV SHF CV JT BALL (PART OF 14) 2007-2009
016 RACE, FRT WHL DRV SHF CV JT OTR 2007-2009
