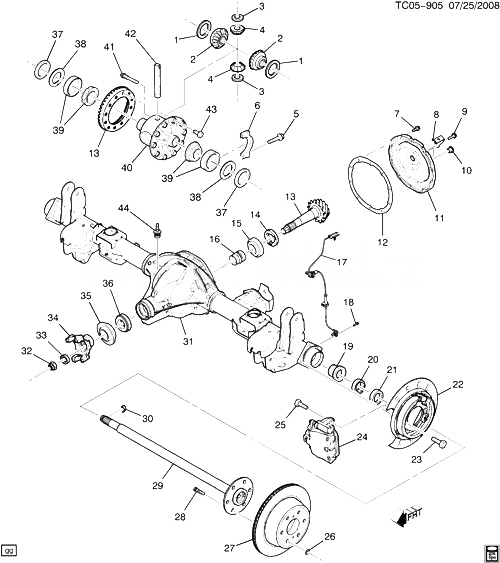

(TC05-905) - 2007-2009 CK1(06-36) МОСТ В СБОРЕ/ЗАДНИЙ 8.625 RING GEAR ЧАСТЬ 1 (EXC (AXN)) CADILLAC - ESCALADE ESV (AWD) 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 WASHER, DIFF SI GR THR (*KIT1) 2007-2009
002 GEAR, DIFF SI (*KIT1) 2007-2009
003 03984818 WASHER, DIFF P/GR THR (.797 I.D. 1.70 O.D.) (*KIT1) CK1 (EXC G80) 2007-2009 02
004 GEAR, DIFF PINION (*KIT1) 2007-2009
005 00454947 БОЛТ, HEX .437-14X2.250 CL-2A CAD/ZC (PART OF 31) 2007-2009 04
006 CAP, DIFF CARRIER BEARING (PART OF 31) 2007-2009
007 12471307 БОЛТ, R/AXL HSG CVR (M8X1.25X20) (*KIT2) CK1, 2, 3 2007-2008 AR
008 15791254 BRACKET, RR BRK C/OVR PIPE (INCLS 9) (CONTAINS BRACKET SCREW) (*KIT2) CK1 2007-2008 01
009 БОЛТ, R/AXL HSG CVR (PART OF 8) (*KIT2) 2007-2008
010 12479141 PLUG, R/AXL HSG FILL (INCLS WASHER MAGNET) (*KIT2) CK1 2007-2008 01
011 COVER, R/AXL HSG (*KIT2) 2007-2008
012 15807693 GASKET, R/AXL HSG CVR (10 BOLT HOLES) (*KIT2) CK1 2007-2008 01
013 12479056 GEAR KIT, DIFF RING PINION (INCLS 16, 32, 33, 43) CK1 (GT5) (EXC AXN) 2007-2008 01
013 12479129 GEAR KIT, DIFF RING PINION (INCLS 16, 32, 33, 43) (INCLS BOLTS, PINION, RING SPACER) CK1 (GU6) (EXC AXN) 2007-2008 01
013 12479316 GEAR KIT, DIFF RING PINION (INCLS 16, 32, 33, 43) CK1 (GT4) (EXC AXN) 2007-2008 01
013 12479393 GEAR KIT, DIFF RING PINION (INCLS 16, 32, 33, 43) CK1 (GU5) (EXC AXN) 2007-2008 01
014 01394892 SHIM KIT, FRT DIFF DRV P/GR BRG (.020-.024 THK) K1 2007-2009 01
014 01394893 SHIM KIT, FRT DIFF DRV P/GR BRG (.025-.029 THK) K1 2007-2009 01
014 01394894 SHIM KIT, FRT DIFF DRV P/GR BRG (.030-.034 THK) K1 2007-2009 01
014 01394895 SHIM KIT, FRT DIFF DRV P/GR BRG (.035-.039 THK) K1 2007-2009 01
014 26043991 SHIM KIT, FRT DIFF DRV P/GR BRG (.040-.044 THK) K1 2007-2009 01
014 26043992 SHIM KIT, FRT DIFF DRV P/GR BRG (.045-.049 THK) K1 2007-2009 01
015 15286375 BEARING, DIFF DRV P/GR INR (ACDelco #S1371) CK1 (EXC AXN) 2007-2008 01
016 12479162 SPACER, DIFF DRV P/GR BRG (R/AXL) (PART OF 13) (.062-.068 THK) CK1 2007-2009 01
017 15121067 SENSOR, RR WHL SPD CK1 (06-36) 2007-2009 02
018 15960191 БОЛТ, WHL SPD SEN (M6X1X12) CK1, 2, 3 2007-2009 AR
019 15286384 RING, WHL SPD SEN RELUCTOR CK1 2007-2009 02
020 12479031 BEARING, R/AXL SHF (5.855) (ACDelco #RW20-10) CK1 2007-2009 02
021 12471686 SEAL, R/AXL SHF (ACDelco #291-315) CK1 2007-2009 02
022 BRAKE, PARK (СМ. ГРУППУ 04.000 PARKING BRK ASM ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2007-2009
023 15065927 БОЛТ, PARK BRK (M12X1.75X34) CK1 2007-2009 08
024 CALIPER, RR BRK (СМ. ГРУППУ 04.000 ТОРМОЗНОЙ СУППОРТ-ЗАДНИЙ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (4.667) 2007-2009
025 15012506 БОЛТ, RR BRK CLPR (PART OF 27) (M14X2.0X37, 37THD) (27.3-OD., 10.9, GM6174M) CK1 (JD9) 2007-2008 04
026 RETAINER, RR BRK ROT (PUSH ON) 2007-2009
027 15792634 ROTOR KIT, RR BRK (INCLS 25) CK1 (06-36) 2007-2008 02
028 11588811 STUD, RR WHL (M14X1.5X24, 58 TOTAL LENGTH) CK1 2007-2009 24
029 15286380 SHAFT, R/AXL CK1 2007-2009 02
030 03833322 LOCK, R/AXL SHF (39.43 X 19.94MM) CK1 (EXC AXN) 2007-2009 02
031 25789474 ШЛАНГИ, R/AXL (INCLS 5, 6) CK1 (06-36) (EXC AXN) 2007-2008 01
032 88891763 ГАЙКА, DIFF DRV P/GR (R/AXL) (PART OF 13, 34) (M10) CK1 2007-2009 01
033 00517900 WASHER, DIFF DRV P/GR (PART OF 13, 34) (.890X1.625X.190) CK1 2007-2009 01
034 12470387 YOKE KIT, DIFF DRV P/GR (INCLS 32, 33, 35) (30 TEETH) (INCLS YOKE, SEAL, WASHER, NUT) (FOR NON-CANADIAN ORDERS) CK1 (06-36) (EXC HP2) 2007-2008 01
035 26064028 SEAL, DIFF DRV P/GR (2 PIECE PINION SEAL) (TRIPLE LIP) (PART OF 34) (RR AXLE) CK1 2007-2008 01
036 15286376 BEARING, DIFF DRV P/GR OTR (INCLS CUP AND CONE, TIMKEN, M88048-M88010, 1 5/16 IN ID X 2 11/16 IN OD X 7/8 IN THK) (5.484) (ACDelco #S1372) CK1 2007-2008 01
037 12471330 SPACER, DIFF BRG (4.37-4.32MM THK) (5.650) CK1 (EXC AXN) 2007-2009 02
038 12471362 SHIM KIT, DIFF BRG (1.016-1.118MM RANGE) (RR AXLE) CK1 (EXC AXN) 2007-2009 01
038 12471363 SHIM KIT, DIFF BRG (1.168-1.372MM RANGE) (RR AXLE) CK1 (EXC AXN) 2007-2009 01
038 12471364 SHIM KIT, DIFF BRG (1.422-1.626MM RANGE) (RR AXLE) CK1 (EXC AXN) 2007-2009 01
038 12471365 SHIM KIT, DIFF BRG (1.676-1.880MM RANGE) (RR AXLE) CK1 (EXC AXN) 2007-2009 01
038 12471366 SHIM KIT, DIFF BRG (1.930-2.134MM RANGE) (RR AXLE) CK1 (EXC AXN) 2007-2009 01
038 12471367 SHIM KIT, DIFF BRG (2.184-2.388MM RANGE) (RR AXLE) CK1 (EXC AXN) 2007-2009 01
038 12471368 SHIM KIT, DIFF BRG (2.438-2.540MM RANGE) (RR AXLE) CK1 (EXC AXN) 2007-2009 01
039 25824250 BEARING, DIFF (ACDelco #S1380) CK1 (EXC AXN) 2007-2008 02
040 12471540 CASE, DIFF (STAMPED 7875/LESS INT GEARS) CK1 (EXC AXN, G80) 2007-2007 01
041 25872305 БОЛТ, DIFF P/GR SHF LK (*KIT1) CK1 (EXC AXN) 2007-2009 01
042 26056109 SHAFT, DIFF P/GR (124.84MM) (*KIT1) CK1 2007-2008 01
043 14066913 БОЛТ, RR DIFF R/GR (R/AXL) (PART OF 13) (7/16-20X7/8) (HEX) CK1 (EXC AXN) 2007-2008 10
044 26063647 CONNECTOR, R/AXL VENT HOSE CK1, 2, 3 2007-2009 01
K01 19179021 GEAR KIT, DIFF SI PINION (INCLS 1-4, 41, 42) (RR AXLE) CK1 (EXC AXN, G80) 2007-2007 01
K02 15290822 COVER KIT, R/AXL HSG (INCLS 7-12) (INCLS COVER, GASKET, PLUG, BOLTS, BRACKETS) CK1 2007-2008 01
