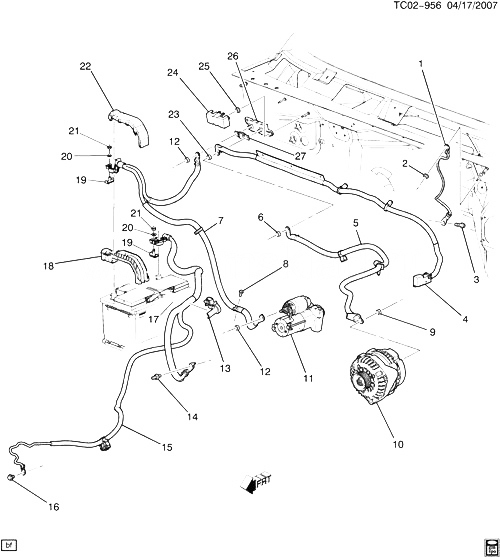

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25792519 |
STRAP, ENG GND (ACDelco #25792519) |
CK1 (L92, CMD, FWI, GMC) (EXC PPV, YF2, 5W4, 9L4) |
2007-2008 |
01 |
| 002 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (ENG GND STRP)
|
2007-2009 |
01 |
|
| 003 |
11609619 |
БОЛТ, HEX W/ FL WA-M10X1.5X16, 20 OD, 10.9 STL, GMW3200 FINISH (ENG GND STRP)
|
2007-2009 |
01 |
|
| 004 |
25814777 |
CABLE, BAT POS (INCLS 23, 26, 27) (ACDelco #25814777) |
CK1, 2, 3 (LC9, LH6, LMG, LU3, LY2, LY5, LY6, L76, L92) (EXC PPV, TP2, 5W4, 9L4) |
2007-2008 |
01 |
| 005 |
20771932 |
CABLE, GEN BAT JPR (LABELED 20771932) (ACDelco #20771932) |
CK1, 2, 3 (LC9, LH6, LMG, LU3, LY2, LY5, LY6, L76, L92) |
2007-2007 |
01 |
| 006 |
21021808 |
ГАЙКА, GEN BAT (M8X1.25X6, BRASS) (2.343)
| CK1, 2, 3 |
2007-2009 |
01 |
|
| 007 |
25875320 |
CABLE, STRTR SOL (INCLS 18-22) (ACDelco #25875320) |
CK1, 2, 3 (L92) |
2007-2008 |
01 |
| 008 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (BAT POS CBL CLIP) |
|
2007-2009 |
01 |
| 009 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BAT POS CBL)
|
2007-2009 |
01 |
|
| 010 |
|
GENERATOR, (СМ. ГРУППУ 02.000 КРЕПЛЕНИЕ ГЕНЕРАТОРА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2009 |
|
| 011 |
|
STARTER, (СМ. ГРУППУ 02.000 КРЕПЛЕНИЕ СТАРТЕРА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2009 |
|
| 012 |
21021808 |
ГАЙКА, STRTR SOL CBL (M8X1.25X6, BRASS)
| CK1, 2, 3 (EXC HP2) |
2007-2009 |
02 |
|
| 013 |
10306471 |
SENSOR, BAT CUR (PART OF 15)
| CK1 |
2007-2009 |
01 |
|
| 014 |
11561111 |
STUD, BAT NEG CBL GND (M10 X1.5 X 20) |
CK1, 2, 3 (LC9, LH6, LMG, LY2, LY5, LY6, L76, L92) |
2007-2008 |
01 |
| 015 |
25897054 |
CABLE, BAT NEG (INCLS 13, 17, 19-21) (ACDelco #25897054) |
CK1 (LC9, LH6, LMG, LY2, LY5, L76, L92) (EXC 9L4) |
2007-2008 |
01 |
| 016 |
11561048 |
БОЛТ, HEX W/FL WA-3/8-16X.625, .82 OD, GM275 STL, GMW3200 FINISH (ENG WRG HARN GND) |
|
2007-2009 |
01 |
| 017 |
19116354 |
CLIP, BAT CBL (PART OF 15) |
CK1 (LC9, LH6, LMG, LY2, LY5, L76, L92) |
2007-2008 |
01 |
| 018 |
25888958 |
COVER, BAT POS CBL TERM (BOTTOM) (PART OF 7) |
CK1, 2, 3 (LC9, LH6, LMG, LY2, LY5, LY6, L76, L92) |
2007-2007 |
01 |
| 019 |
|
BOLT KIT, BAT CBL TERM (PART OF 7, 15) (INCLS 20, 21) |
|
2007-2009 |
|
| 019 |
19116852 |
BOLT KIT, BAT CBL TERM (PART OF 7, 15) (INCLS 20, 21)
| CK1, 2, 3 |
2007-2008 |
01 |
|
| 020 |
|
WASHER, BAT CBL TERM (PART OF 7, 15, 19) |
|
2007-2007 |
|
| 021 |
|
ГАЙКА, BAT CBL TERM (PART OF 7, 15, 19) |
|
2007-2007 |
|
| 022 |
25797040 |
COVER, BAT POS CBL TERM (TOP) (PART OF 7) |
CK1, 2, 3 (LC9, LH6, LMG, LY2, LY5, LY6, L76, L92) |
2007-2007 |
01 |
| 023 |
21021808 |
ГАЙКА, GEN BAT (PART OF 4) (M8X1.25X6, BRASS) (2.343)
| CK1, 2, 3 |
2007-2009 |
01 |
|
| 024 |
15861891 |
COVER, BAT POS CBL J/BLK |
CK1, 2, 3 (LC9, LH6, LMG, LY2, LY5, L76, L92, LU3) (EXC PPV, 5W4, 9L4) |
2007-2008 |
01 |
| 025 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BAT POS CBL J/BLK BRKT)
|
2007-2009 |
02 |
|
| 026 |
|
BLOCK, BAT POS CBL JUNC (PART OF 4) |
|
2007-2007 |
|
| 027 |
15305191 |
FUSE, 175 AMP MEGA (PART OF 4) ( FUSE COLOR, BLACK W/SIZE STAMPED IN WHITE ON CASE)
|
2007-2009 |
01 |
|
