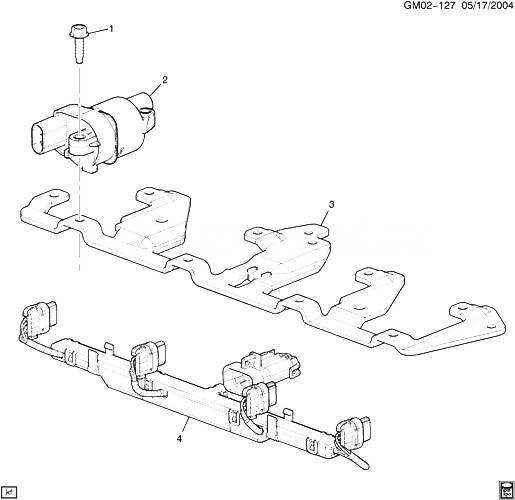

(GM02-127) - 2007-2008 CK1,2,3 COIL MODULE/IGNITION (DELPHI)(LY6/6.0K,L76/6.0Y,L92/6.2-8) CADILLAC - ESCALADE ESV (AWD) 2007
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 11562426 | БОЛТ, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (IGN COIL) | 2007-2009 | 16 | |
| 002 | 12573190 | COIL, IGN (DELPHI) (W/ROUND-SHAPED COILS AND MARKED 12573190)) (ACDelco #D514A)| CK1 (L92) |
2007-2008 |
08 |
|
| 003 | 12580353 | BRACKET, IGN COIL (ACDelco #12580353) | CK1 (L92) | 2007-2008 | 01 |
| 004 | 12579355 | WIRE, IGN COIL (INCLS CONNS) (ACDelco #357A) | CK1 (L92) | 2007-2008 | 01 |
