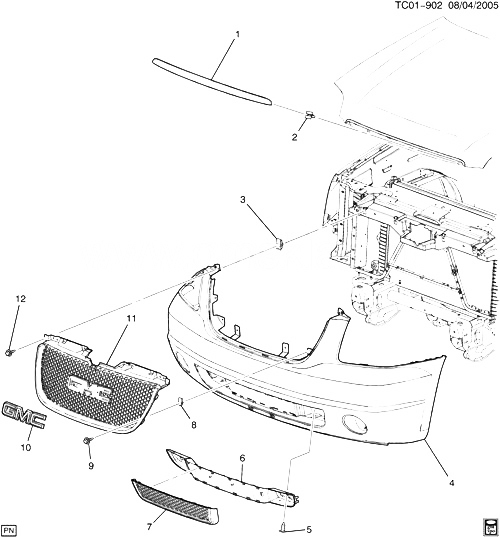

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 002 |
11561788 |
CLIP-U, 13X15X12, 1.5 PNL, 1050, 6280M (PART OF 1)
|
2007-2009 |
06 |
|
| 003 |
11518121 |
ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (RAD GRL UPR BRKT) |
|
2007-2009 |
08 |
| 005 |
10121502 |
RETAINER, FITS .250 HOLE, 1.01LG.700-OD NYLON BLACK (FRT TOW HOOK)
|
2007-2009 |
04 |
|
| 006 |
|
COVER, FRT TOW HOOK OPG (PART OF 7) |
|
2007-2007 |
|
| 007 |
15264513 |
GRILLE, RAD LWR (INCLS 6) (CHROME) |
K1 (06) (VGD, Y91, Z88) |
2007-2008 |
01 |
| 008 |
11515638 |
ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (RAD GRL)
|
2007-2009 |
04 |
|
| 009 |
11609465 |
БОЛТ, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (RAD GRL) (8.977)
|
2007-2009 |
04 |
|
| 011 |
25891152 |
GRILLE, RAD UPR (CHROME) (IF GRILLE ON FASCIA IS RIVETEDDRILL OUT RIVET HOLES ON FASCIA TO 8.835MM ATTACH GRILLE TO FASCIA W/2 U-NUTS 11515638 2 BOLTS 11589015) |
K1 (06) (VGD, Y91, Z88) |
2007-2007 |
01 |
| 012 |
11610055 |
БОЛТ, HWASH, M6X1X23 (FRT BPR UPR FASCIA) |
|
2007-2009 |
06 |
