| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

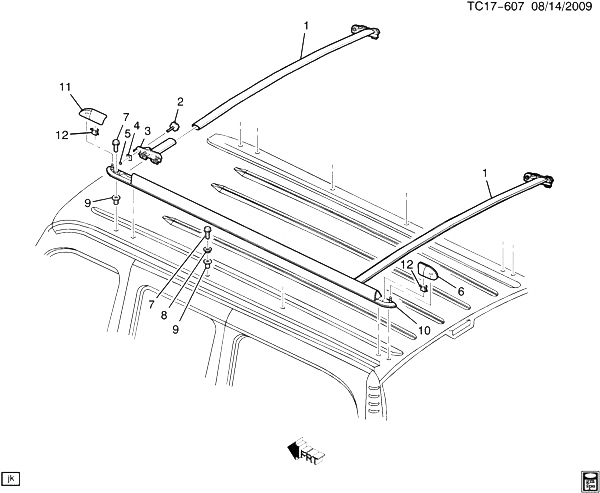

| 001 |
15838222 |
RAIL, LUGG CARR CR (INCLS 2-5) (BLACK)
| K1 (V1K, Z75) |
2003-2006 |
02 |
|
| 002 |
|
KNOB, LUGG CARR CR RL ADJR (PART OF 1) |
|
2003-2006 |
|
| 003 |
|
ADJUSTER, LUGG CARR CR RL (PART OF 1) |
|
2003-2006 |
|
| 004 |
|
PLATE, LUGG CARR CR RL ADJR LKG (PART OF 1) |
|
2003-2006 |
|
| 005 |
|
RETAINER, LUGG CARR CR RL ADJR LKG PLT (PART OF 1) |
|
2003-2006 |
|
| 006 |
25787589 |
COVER, LUGG CARR S/RL RR FIN (PAINT TO MATCH) (*KIT1) |
K1 (06) (V54, Z75) |
2003-2006 |
01 |
| 007 |
11609900 |
SCREW, PAN WASH, M6X1X39, 31 THD, 12.25 OD, 8.8, GMW4700, TORX, MACH, PPOI (LUGG CARR SUPT) |
|
2003-2006 |
10 |
| 008 |
15916756 |
PLATE, LUGG CARR S/RL BRKT ANC |
K159 (06) (V54, Z75) |
2003-2006 |
04 |
| 009 |
11518684 |
ГАЙКА, LUGG CARR SUPT (M6X1X16) (HEX CHROME FREE FINISH)
| K1, 2 (06-36) (V54) (EXC G63) |
2006-2006 |
AR |
|
| 010 |
25836347 |
RAIL, LUGG CARR SI (CHROME) (WHEN USED ON 2006 PRIOR USAGE MAY NEED TO ORDER FRONT RR COVER, БАГАЖНИК PART NUMBER 25787559 25787589) |
K159 (06) (Z75) |
2003-2006 |
01 |
| 010 |
25836348 |
RAIL, LUGG CARR SI (CHROME) (WHEN USED ON 2006 PRIOR USAGE MAY NEED TO ORDER FRONT RR COVER, БАГАЖНИК PART NUMBER 25787560 25787590) |
K159 (06) (Z75) |
2003-2006 |
01 |
| 010 |
25892759 |
RAIL, LUGG CARR SI (CHROME) (INCLS GASKET) (WHEN USED ON 2006 PRIOR USAGE MAY NEED TO ORDER FRONT RR COVER, БАГАЖНИК PART NUMBER 25787559 25787589) |
K159 (06) (Z75) |
2003-2006 |
01 |
| 010 |
25892760 |
RAIL, LUGG CARR SI (CHROME) (INCLS GASKET) (WHEN USED ON 2006 PRIOR USAGE MAY NEED TO ORDER FRONT RR COVER, БАГАЖНИК PART NUMBER 25787560 25787590) |
K159 (06) (Z75) |
2003-2006 |
01 |
| 011 |
25787559 |
COVER, LUGG CARR S/RL FRT FIN (PAINT TO MATCH) (*KIT2) |
K1 (06) (V54, Z75) |
2003-2006 |
01 |
| 011 |
25787560 |
COVER, LUGG CARR S/RL FRT FIN (PAINT TO MATCH) (*KIT2) |
K1 (06) (V54, Z75) |
2003-2006 |
01 |
| 011 |
25832917 |
COVER, LUGG CARR S/RL FRT FIN (PAINT TO MATCH) (*KIT2) |
K1 (06) (V54, Z75) |
2003-2006 |
01 |
| 012 |
11570521 |
RETAINER, LUGG CARR S/RL FIN CVR (PUSH IN) (*KIT1, KIT2) |
K1 (06) (Y91) |
2003-2006 |
02 |
| K01 |
25832914 |
COVER KIT, LUGG CARR S/RL ACC HOLE RR (INCLS 6, 12) (INCLS PAINT TO MATCH COVER) |
K1 (06) (V54, Z75) |
2003-2006 |
01 |
| K01 |
25832915 |
COVER KIT, LUGG CARR S/RL ACC HOLE RR (INCLS 6, 12) (INCLS PAINT TO MATCH COVER) |
K1 (06) (V54, Z75) |
2003-2006 |
01 |
| K02 |
25832916 |
COVER KIT, LUGG CARR S/RL ACC HOLE FRT (INCLS 11, 12) (PAINT TO MATCH) |
K1 (06) (V54, Z75) |
2003-2006 |
01 |
