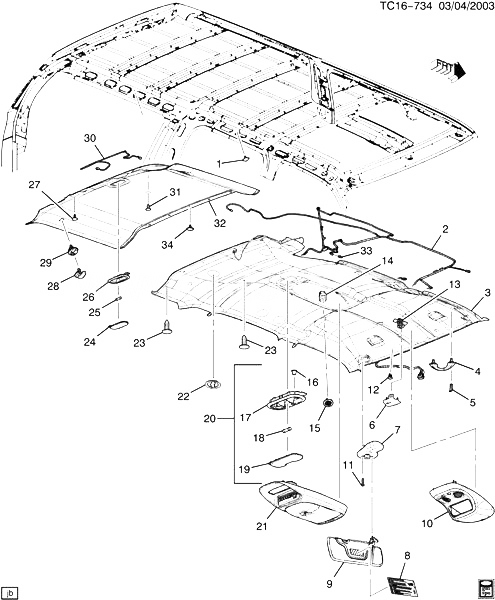

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15763887 |
RETAINER, HDLNG FRT T/PNL (DUAL LOCK) (BLACK) (SQ 26.0 X DIA 7.89) (W/VELCRO) |
CK159, 2 (06) |
2003-2006 |
AR |
| 002 |
|
HARNESS, RF ACSRY WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (PART OF 3) (INCLS 33) |
|
2003-2006 |
|
| 003 |
15120074 |
PANEL, HDLNG FRT TR (INCLS 2, 4, 6, 14, 15, 20-22) (PEWTER) |
K159 (06) (CJ2, C36, DK7, U42, YE9, Z75, 92I) |
2005-2006 |
01 |
| 003 |
15214751 |
PANEL, HDLNG FRT TR (INCLS 2, 4, 6, 14, 15, 20-22) (SHALE) (HAS CENTER OVERHEAD КОНСОЛЬ) (USED ON VEHICLES W/REAR HVAC CONTROL IN ROOF) (FOR 2ND DES SEE 15812587) |
CK159, 2 (06) (ARL, JAN, CJ3, C36, DK7, YE9, 52I, 92I) (1ST DES) |
2006-2006 |
01 |
| 003 |
15239979 |
PANEL, HDLNG FRT TR (INCLS 2, 4, 6, 14, 15, 20-22) (SHALE) |
CK159, 2 (06) (CJ3, DK7, MSL, YE9, 52I, 92I) (EXC C36) |
2005-2006 |
01 |
| 003 |
15239981 |
PANEL, HDLNG FRT TR (INCLS 2, 4, 6, 14, 15, 20-22) (SHALE) (USED ON VEHICLES BUILT WITH REAR HV/AV CONTROLS) (FOR 2ND DES SEE 15812585) |
CK159, 2 (06) (CJ3, C36, DK7, MSL, YE9, 52I, 92I) (1ST DES) |
2006-2006 |
01 |
| 003 |
15239990 |
PANEL, HDLNG FRT TR (INCLS 2, 4, 6, 14, 15, 20-22) (SHALE) |
CK159, 2 (06) (CJ2, C36, DK7, MSL, U42, X88, YE9, 52I, 92I) |
2004-2006 |
01 |
| 003 |
15239990 |
PANEL, HDLNG FRT TR (INCLS 2, 4, 6, 14, 15, 20-22) (SHALE) |
CK159, 2 (06) (CJ2, C36, DK7, MSL, U42, Z88, YE9, 52I, 92I) |
2004-2006 |
01 |
| 003 |
15787462 |
PANEL, HDLNG FRT TR (INCLS 2, 4, 6, 14, 15, 20-22) (SHALE) |
CK159, 2 (06) (ARL, JAN, CJ2, C36, DK7, U42, X88, YE9, 52I, 92I) |
2004-2006 |
01 |
| 003 |
15787462 |
PANEL, HDLNG FRT TR (INCLS 2, 4, 6, 14, 15, 20-22) (SHALE) |
CK159, 2 (06) (ARL, JAN, CJ2, C36, DK7, U42, Z88, YE9, 52I, 92I) |
2004-2006 |
01 |
| 003 |
15787462 |
PANEL, HDLNG FRT TR (INCLS 2, 4, 6, 14, 15, 20-22) (SHALE) |
CK159, 2 (06) (CJ2, C36, DK7, U42, YE9, Z75, 15I) |
2004-2006 |
01 |
| 004 |
15048750 |
HANDLE, ASST (PART OF 3) (PEWTER) (FRT PASS SIDE) (INCLUDES RETAINERS) |
K159 (06-36) (92I) |
2003-2006 |
01 |
| 005 |
15748479 |
RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (ASST HDL (PUSH ON)) |
|
2003-2006 |
02 |
| 006 |
15186286 |
RETAINER, S/S (PART OF 3) (INCLS 13) (SHALE) (OPENING FACES AWAY FROM FASTENER) |
CK1, 2 (06) (69I) |
2004-2006 |
02 |
| 006 |
15186286 |
RETAINER, S/S (PART OF 3) (INCLS 13) (SHALE) (OPENING FACES AWAY FROM FASTENER) |
CK1, 2 (06) (Z75, 15I) |
2004-2006 |
02 |
| 006 |
15186287 |
RETAINER, S/S (PART OF 3) (INCLS 13) (PEWTER) |
CK1 (06) (Z75, 92I) |
2004-2006 |
02 |
| 007 |
|
COVER, S/S SUPT BOLT (PART OF 9) |
|
2003-2006 |
|
| 008 |
15006352 |
LABEL, INFL RST SYS WRNG (PART OF 9) (ENGLISH/FRENCH) |
CK1, 2, 3 |
2003-2006 |
02 |
| 008 |
15093588 |
LABEL, INFL RST SYS WRNG (PART OF 9) (ENGLISH/ARABIC) |
CK1, 2 (06-36) (AL0, DH6) (EXC ULT) |
2004-2006 |
02 |
| 008 |
15114992 |
LABEL, INFL RST SYS WRNG (PART OF 9) (ENGLISH/ARABIC) |
CK1, 2 (06-43) (AL0, VBX) (EXPORT) |
2004-2006 |
02 |
| 008 |
15116388 |
LABEL, INFL RST SYS WRNG (PART OF 9) (ENGLISH/SPANISH)
| CK1, 2 (06) (AL0, DH6) (EXC ULT) |
2004-2006 |
02 |
|
| 009 |
15282714 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 7, 8, 11) (SHALE) |
CK1, 2 (06) (DH6, 15I) (EXC ULT) |
2006-2006 |
01 |
| 009 |
15282714 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 7, 8, 11) (SHALE) |
CK1, 2 (06) (DH6, 52I) |
2006-2006 |
01 |
| 009 |
15282715 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 7, 8, 11) (PEWTER) |
CK1 (06-36) (DH6, Z75, 92I) |
2006-2006 |
01 |
| 009 |
15282717 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 7, 8, 11) (SHALE) |
CK1, 2 (06) (DH6, 15I) (EXC ULT) |
2006-2006 |
01 |
| 009 |
15282717 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 7, 8, 11) (SHALE) |
CK1, 2 (06) (DH6, 52I) |
2006-2006 |
01 |
| 009 |
15282718 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 7, 8, 11) (PEWTER) |
CK1 (06) (DH6, Z75, 92I) |
2006-2006 |
01 |
| 010 |
|
КОНСОЛЬ, RF (СМ. ГРУППУ 16.000 КОНСОЛЬ/КРЫША ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2003-2006 |
|
| 011 |
11516440 |
SCREW (PART OF 9) |
|
2003-2006 |
04 |
| 012 |
15044610 |
PLUG, S/S MT HOLE (SHALE) |
CK159, 2 (06) (52I, 92I) |
2004-2006 |
01 |
| 013 |
|
BRACKET, S/S SUPT (PART OF 6) |
|
2003-2006 |
|
| 014 |
25903301 |
ASPIRATOR, I/S AIR TEMP SEN (PART OF 3) (ACDelco #15-51256)
| CK1, 2 (06) |
2003-2006 |
02 |
|
| 015 |
15029309 |
GRILLE, I/S AIR TEMP SEN ASPIRATOR (PART OF 3) (GRAPHITE) |
CK1 (06-36) (92I) |
2006-2006 |
01 |
| 015 |
15044378 |
GRILLE, I/S AIR TEMP SEN ASPIRATOR (PART OF 3) (SHALE) |
CK1, 2, 3 (15I, 52I, 69I, 92I) |
2003-2006 |
02 |
| 016 |
15166059 |
PUSHBUTTON, RDG LP SW (PART OF 20) (EBONY) |
CK1, 2, 3 |
2003-2006 |
02 |
| 017 |
15032587 |
ШЛАНГИ, DM RDG LP (INCLS 18) (PART OF 20) |
CK1, 2, 3 |
2003-2006 |
01 |
| 018 |
12450074 |
BULB, TRADE #578 (PART OF 17) (ACDelco #578)
|
2003-2006 |
03 |
|
| 019 |
15032588 |
LENS, DM RDG LP (PART OF 20) (3 BULB STYLE) |
CK1, 2, 3 |
2003-2006 |
01 |
| 020 |
15166055 |
LAMP, DM RDG (PART OF 3) (INCLS 16, 17, 19) (PEWTER) (W/ PUSHBUTTONS 3 BULB LAMP) |
CK1 (06) (92I, Z75) |
2003-2006 |
AR |
| 021 |
15102312 |
DISPLAY, VIDEO W/ DVD (SHALE) (ACDelco #15102312) |
K1 (06) (ULT, U42, Z75, 15I) |
2004-2006 |
01 |
| 021 |
15233645 |
DISPLAY, VIDEO W/ DVD (SHALE) (ACDelco #15233645) |
CK1, 2 (06-36) (U42, Z75, 15I) (EXC CF5) |
2005-2006 |
01 |
| 021 |
15233646 |
DISPLAY, VIDEO W/ DVD (MED DK PEWTER) (ACDelco #15233646) |
CK1 (06-36) (U42, Z75, 92I) (EXC CF5) |
2005-2006 |
01 |
| 022 |
15124270 |
DEFLECTOR, AUX A/C AIR OTLT (PART OF 3) (PEWTER) |
CK1, 2 (06) (92I) |
2003-2006 |
AR |
| 022 |
15124271 |
DEFLECTOR, AUX A/C AIR OTLT (PART OF 3) (SHALE) |
CK1, 2 (06) (15I, 52I) |
2003-2006 |
AR |
| 023 |
15206648 |
RETAINER, HDLNG FRT T/PNL (PUSH IN) (SHALE) (LONG PUSH PIN) (LENGTH 47.5MM)
| CK159, 2 (06) (Z75, 15I) |
2003-2006 |
04 |
|
| 023 |
15206649 |
RETAINER, HDLNG FRT T/PNL (PUSH IN) (PEWTER) (LONG PUSH PIN) |
K159 (06) (Z75, 92I) |
2003-2006 |
04 |
| 024 |
88892575 |
LENS, DM LP (PART OF 26) (ONE BULB STYLE) |
CK1, 2, 3 |
2003-2006 |
01 |
| 025 |
09431808 |
BULB, TRADE # 211-2 (PART OF 26) (ACDelco #L211-2) |
|
2003-2006 |
01 |
| 026 |
15166042 |
LAMP, DM (PART OF 32) (INCLS 24, 25) (PEWTER) (ONE BULB LAMP) |
K159 (06) (Z75, 92I) |
2003-2006 |
AR |
| 026 |
15166043 |
LAMP, DM (PART OF 32) (INCLS 24, 25) (SHALE) (1 BULB STYLE) |
CK1, 2, 3 (15I, 52I, 69I, 92I) |
2003-2006 |
01 |
| 028 |
15045844 |
HOOK, COAT (RR CARGO AREA) (PART OF 32) (INCLS 29) (PEWTER) |
K159 (06) (Z75, 92I) |
2003-2006 |
02 |
| 028 |
15760164 |
HOOK, COAT (PART OF 32) (INCLS 29) (SHALE) |
CK159, 2 (06) (52I, 92I) |
2003-2006 |
02 |
| 029 |
15603591 |
RETAINER, COAT HOOK (PUSH IN) (PART OF 28) (16.585) |
CK1, 2 (06) |
2003-2006 |
01 |
| 029 |
15603591 |
RETAINER, COAT HOOK (PUSH IN) (PART OF 28) (16.585) |
K159 (06) (Z75) |
2003-2006 |
01 |
| 030 |
12172069 |
HARNESS, DM LP RR WRG (PART OF 32) |
K159 (06) (Z75) (EXC ULT) |
2004-2006 |
01 |
| 031 |
15111579 |
RETAINER, HDLNG FRT T/PNL (PUSH IN) (PEWTER) (SHORT PUSH PIN)
| K159 (06) (Z75, 92I) |
2006-2006 |
05 |
|
| 031 |
15111580 |
RETAINER, HDLNG FRT T/PNL (PUSH IN) (SHALE) (SHORT PUSH PIN) (28.8MM LENGTH) |
CK159, 2 (06) (Z75, 15I) |
2003-2006 |
05 |
| 032 |
93440684 |
PANEL, HDLNG RR TR (INCLS 26, 27, 28, 30, 34) (SHALE) (INCLS HARNESS) |
K159 (06) (Z75, 15I) (EXC ULT) |
2004-2006 |
01 |
| 032 |
93440685 |
PANEL, HDLNG RR TR (INCLS 26, 27, 28, 30, 34) (PEWTER) (INCLS HARNESS) |
K159 (06) (Z75, 92I) |
2003-2006 |
01 |
| 033 |
12160947 |
SENSOR, DUCT AIR TEMP (37.54MM) (PART OF 2) (ACDelco #15-5632)
| CK1, 2, 3 |
2003-2006 |
01 |
|
| 034 |
15032376 |
RETAINER, HDLNG RR T/PNL (PART OF 32) (NEUTRAL) (16.494) |
K159 (06) (Z75, 15I) (EXC ULT) |
2004-2006 |
01 |
| 034 |
15731604 |
RETAINER, HDLNG RR T/PNL (PART OF 32) (PEWTER) (16.165) |
K159 (06) (Z75, 92I) |
2004-2006 |
01 |
