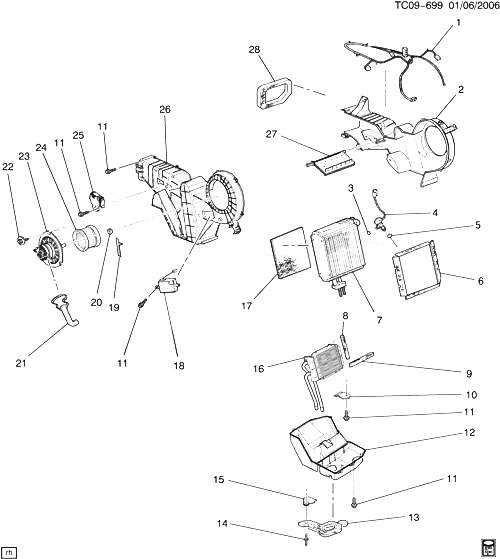

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15056257 |
HARNESS, AUX HTR A/C WRG (ACDelco #15-75193) |
CK159, 2 (06) (CJ3, C36, C69) |
2003-2006 |
01 |
| 002 |
52478195 |
CASE, AUX A/C EVPR BLO (OUTER) |
CK159, 2 (06) |
2003-2006 |
01 |
| 003 |
03094214 |
O-RING, ID .426X.070 THK, MATERIAL-NEOPRENE (PART OF 7) (ACDelco #15-3614) |
|
2003-2006 |
01 |
| 004 |
52401710 |
VALVE KIT, AUX A/C EVPR THERMAL EXPN (ACDelco #15-50106) |
CK159, 2 (06) |
2003-2006 |
01 |
| 005 |
52450548 |
SEAL O-RING (5/PKG) (.35 ID X .072 THICK (PART OF 7) (8.927) (ACDelco #15-30570)
|
2003-2006 |
01 |
|
| 006 |
52480252 |
SEAL, AUX A/C EVPR |
CK159, 2 (06) |
2003-2006 |
01 |
| 007 |
52401671 |
EVAPORATOR, AUX A/C (INCLS 3, 5) (ACDelco #15-62086) |
CK159, 2 (06) |
2003-2006 |
01 |
| 008 |
52480283 |
SEAL, AUX HTR CORE (SIDE) |
CK159, 2 (06) |
2003-2006 |
02 |
| 009 |
|
SEAL, AUX HTR CORE (HEADER) (PART OF 16) |
|
2004-2006 |
|
| 010 |
52482830 |
CLAMP, HTR CORE TUBE |
CK159, 2 (06) |
2003-2006 |
01 |
| 011 |
11609489 |
БОЛТ, HEX W/ WASHER, 4.2X1.41X25, 14.5 THD17 OD, GM6010M STL, GMW4205 (AUX A/C EVPR BLO MDL)
|
2003-2006 |
05 |
|
| 012 |
89018717 |
COVER, HTR CORE (AUX CVR) |
CK159, 2 (06) |
2003-2006 |
01 |
| 013 |
52482845 |
SEAL, A/C EVPR TUBE (DRN) (9.211) |
CK159, 2 (06) |
2003-2006 |
01 |
| 014 |
89018613 |
STUD, HTR A/C EVPR BLO MDL (STUD-FLANGE, M6X1X25) |
CK159, 2 (06) |
2003-2006 |
02 |
| 015 |
89018752 |
CLAMP, HTR CORE |
CK159, 2 (06) (CJ3, C36, C69) |
2006-2006 |
01 |
| 016 |
52478848 |
CORE, AUX HTR (INCLS 9) (ACDelco #15-62087) |
CK159, 2 (06) |
2003-2006 |
01 |
| 017 |
52480251 |
ФИЛЬТР, A/C EVPR AIR (AUX) (ACDelco #15-8799)
| CK159, 2 (06) |
2003-2006 |
01 |
|
| 018 |
89018536 |
RESISTOR, AUX BLO MOT (ACDelco #15-80564) |
CK159, 2 (06) (CJ3, C36, C69) |
2003-2006 |
01 |
| 019 |
|
LABEL, BAR CODE |
|
2003-2006 |
|
| 020 |
|
SPEED NUT (PART OF 23) |
|
2003-2006 |
|
| 021 |
52468304 |
TUBE, BLO MOT CLG (9.218) |
CK159, 2 (06) |
2003-2006 |
01 |
| 021 |
52468304 |
TUBE, BLO MOT CLG |
CK159, 2 (06) |
2003-2006 |
01 |
| 022 |
10272737 |
БОЛТ, HWH, M4.2X2.5X20, 12.5 O.D., AB PT, 6010M, BZ (AUX HTR BLO MOT) |
|
2003-2006 |
03 |
| 023 |
52495789 |
MOTOR, BLO (W/IMPLR) (AUX) (INCLUDES 20, 24) (ACDelco #15-8792) |
CK159, 259 (06) (CJ2, CJ3, C69) |
2003-2006 |
01 |
| 023 |
52495789 |
MOTOR, BLO (W/IMPLR) (AUX) (INCLUDES 20, 24) (8.855) (ACDelco #15-8792) |
CK159, 259 (06) (CJ2, CJ3, C69) |
2003-2006 |
01 |
| 024 |
|
FAN (PART OF 23) |
|
2003-2006 |
|
| 025 |
89018356 |
ACTUATOR, TEMP VLV (AUX) (MATES W/CONN 12102632) (ACDelco #15-71845)
| CK1, 2 (06) (CJ3, C36, C69) |
2003-2006 |
01 |
|
| 026 |
52478191 |
CASE, AUX A/C EVPR BLO (INNER) |
CK159, 2 (06) |
2003-2006 |
01 |
| 027 |
52495923 |
VALVE, TEMP (AUX) (ACDelco #15-5717) |
CK159, 2 (06) |
2003-2006 |
01 |
| 028 |
52484090 |
SEAL, AUX HTR A/C MDL OTLT DUCT |
CK159, 2 (06) |
2003-2006 |
01 |
