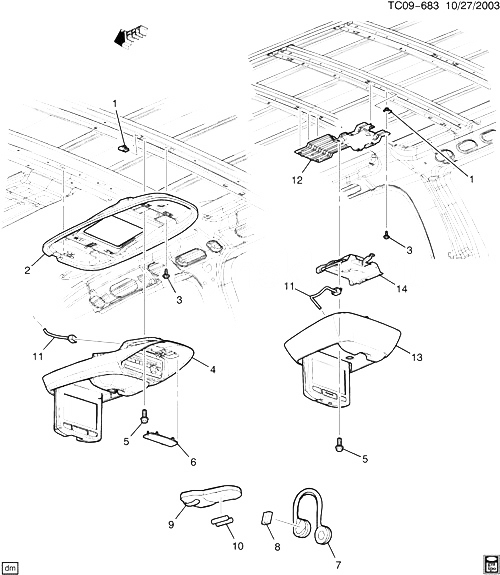

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11570097 |
ГАЙКА, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (VIDEO TAPE PLYR BRKT)
|
2004-2006 |
08 |
|
| 002 |
15191406 |
BRACKET, VIDEO PLYR (ACDelco #15191406) |
K159, 2 (06-36) (U42) (EXC CF5) |
2005-2006 |
01 |
| 003 |
11514623 |
БОЛТ, HEX W/CON WA, M6X1X20 (VIDEO TAPE PLYR BRKT) |
|
2004-2006 |
08 |
| 004 |
15102312 |
DISPLAY, VIDEO W/ DVD (SHALE) (ACDelco #15102312) |
K1 (06) (ULT, U42, Z75, 15I) |
2004-2006 |
01 |
| 004 |
15233645 |
DISPLAY, VIDEO W/ DVD (SHALE) (ACDelco #15233645) |
K1, 2 (06-36) (U42, Z75, 15I) (EXC CF5) |
2005-2006 |
01 |
| 004 |
15233646 |
DISPLAY, VIDEO W/ DVD (MED DK PEWTER) (ACDelco #15233646) |
K1 (06-36) (U42, Z75, 92I) (EXC CF5) |
2005-2006 |
01 |
| 004 |
15233651 |
DISPLAY, VIDEO W/ DVD (MED DK PEWTER) (ACDelco #15233651) |
K1 (06-36) (CF5, U42, Z75, 92I) |
2005-2006 |
01 |
| 005 |
|
БОЛТ, VIDEO DISPLAY |
|
2004-2006 |
|
| 006 |
|
BEZEL, VIDEO DISPLAY |
|
2004-2006 |
|
| 007 |
01999421 |
HEADPHONE, (WIRELESS) (FOR FOAM EARPADS CALL UNWIRED TECH. 1-888-293-3332) (ACDelco #1999421) |
K1 (06) (ULT) |
2004-2006 |
02 |
| 007 |
01999421 |
HEADPHONE, (WIRELESS) (FOR FOAM EARPADS CALL UNWIRED TECH. 1-888-293-3332) (ACDelco #1999421) |
K1, 2, 3 (U42) |
2004-2006 |
02 |
| 008 |
|
АККУМУЛЯТОР PKG, HEADPHONE |
|
2004-2006 |
|
| 009 |
01999355 |
CONTROL, VIDEO PLYR REM (ACDelco #1999355) |
K1, 2, 3 (U42) |
2004-2006 |
01 |
| 010 |
|
АККУМУЛЯТОР, VIDEO T/PLYR REM CONT |
|
2004-2006 |
|
| 011 |
|
HARNESS, RF ACSRY WRG (СМ. ГРУППУ 16.000 TRIM-INTERIOR/ROOF ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2004-2006 |
|
| 012 |
|
REINFORCEMENT, RF PNL BOW EXTN |
|
2004-2006 |
|
| 013 |
10363686 |
DISPLAY, VIDEO (FOR SERVICE SEE GM PROCESS/POLICY BULLETIN FOR THE LATEST SERVICE INFORMATION) (INCLS 14) (SHALE) (3RD ROW DISPLAY) (ACDelco #10363686) |
K1 (06) (DNU, ULT, Z75, 15I) |
2004-2006 |
01 |
| 014 |
10363687 |
BRACKET, VIDEO DISPLAY (PART OF 13) |
K1 (06) (DNU, ULT, Z75) |
2004-2006 |
01 |
