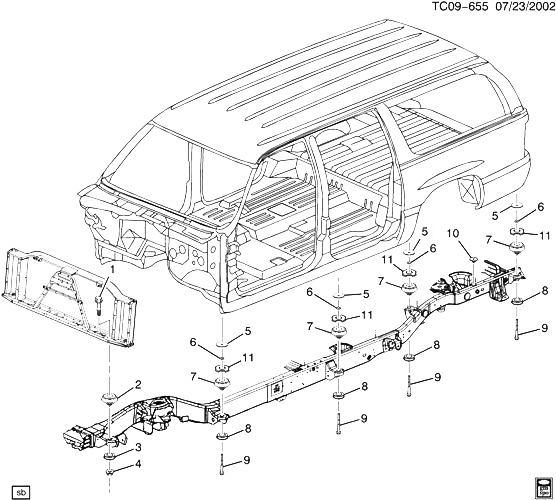

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 002 |
15837581 |
CUSHION, RAD SUPT UPR
| CK1, 2 (06) |
2005-2006 |
02 |
|
| 003 |
15201791 |
CUSHION, RAD SUPT LWR (71MM OD) (9.023) |
CK1, 2, 3 |
2001-2006 |
02 |
| 004 |
03537772 |
ГАЙКА, M12X1.75, 10.6THK, 28 O.D., 10, 7111M (RAD SUPT) (8.917) |
|
2001-2006 |
02 |
| 005 |
15053229 |
INSULATOR, BODY
| CK1, 2, 3 |
2005-2006 |
AR |
|
| 005 |
15899719 |
INSULATOR, BODY (INSTALLED ON BOTTOM OF THE UPR BODY MOUNT CUSHION BTWN THE CUSHION AND THE FRAME BRKT)
| CK1, 2, 3 |
2002-2006 |
02 |
|
| 006 |
15924986 |
RETAINER, BODY BOLT |
CK1, 2 (06-36) |
2006-2006 |
10 |
| 007 |
15201140 |
CUSHION, BODY BOLT UPR (LOCATION #1 2) (WHITE) |
CK1 (06) |
2001-2006 |
04 |
| 007 |
15201141 |
CUSHION, BODY BOLT UPR (LOCATIONS #3, 4 5) (YELLOW) |
CK157, 159 (06) |
2006-2006 |
06 |
| 008 |
15201791 |
CUSHION, BODY BOLT LWR (71MM OD) |
CK1, 2 (06) |
2001-2006 |
10 |
| 009 |
11562587 |
БОЛТ, BODY (M14X2X126)
| CK1, 2 (06) |
2006-2006 |
10 |
|
| 010 |
15756599 |
INSULATOR, PUBX PLTF |
CK1, 2, 3 (E63) |
2001-2006 |
04 |
| 011 |
15018263 |
SHIM, BODY MT (3MM THICK)
| CK1, 2, 3 |
2001-2006 |
AR |
|
| 011 |
15018264 |
SHIM, BODY MT (1.5MM THICK) |
CK1, 2, 3 |
2001-2006 |
AR |
