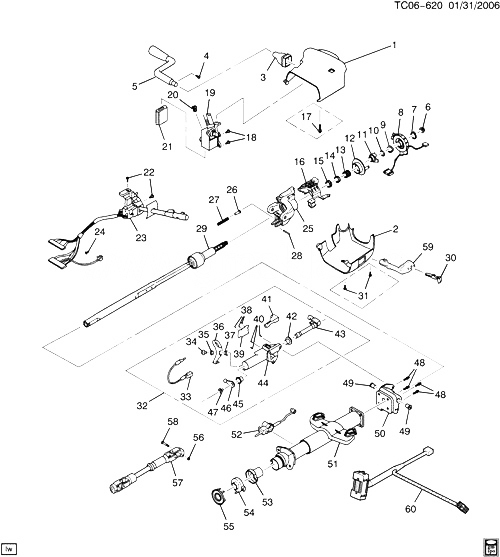

(TC06-620) - 2006-2007 CK РУЛЕВАЯ КОЛОНКА-COLUMN SHIFT (AUTO TRANS) CADILLAC - ESCALADE ESV (AWD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 26089140 COVER KIT, STRG COL TR (INCLS 2) (EBONY) (W/AUTO TRANS) (SNAP ON DESIGN) CK1, 2, 3 2003-2007 01
001 26089141 COVER KIT, STRG COL TR (INCLS 2) (NEUTRAL) (FASTENED-BY-SNAPS) K1 (06-43-53) (M32, UK3, Y91, Z88, 52I) 2003-2006 01
001 26089142 COVER KIT, STRG COL TR (INCLS 2) (PEWTER) (FASTENED-BY-SNAPS) K1 (M32, UK3, Y91, Z88, 92I) 2003-2006 01
001 26089142 COVER KIT, STRG COL TR (INCLS 2) (PEWTER) (FASTENED-BY-SNAPS) K1 (M32, UK3, Y91, X88, 92I) 2006-2006 01
001 26089143 COVER KIT, STRG COL TR (INCLS 2) (NEUTRAL) (FASTENED-BY-SNAPS) CK1 (06-36) (M30, M32, K34, UK3, Y91, Z75, 15I) 2003-2006 01
001 26089144 COVER KIT, STRG COL TR (INCLS 2) (PEWTER) (FASTENED-BY-SNAPS) CK1 (06-36) (M30, M32, K34, UK3, Y91, Z75, 92I) 2003-2006 01
001 26089145 COVER KIT, STRG COL TR (INCLS 2) (EBONY) (FASTENED-BY-SCREWS) K1 (06) (M30, K34, NP7, Z75) 2006-2006 01
002 COVER, STRG COL TR LWR (PART OF 1) 2006-2007
003 26093753 SEAL, A/TRNS CONT LVR HSG CK1, 2, 3 (MN8, MT1, M30, M32, M33, M70) 2006-2006 01
004 26086318 БОЛТ, A/TRNS CONT LVR (M6X1X13) CK1, 2, 3 2002-2007 01
005 26093957 LEVER, A/TRNS CONT (W/TOW HAUL SWITCH) CK1 (06-36) (M30, M32, Z75, 15I) (EXC ULT, WSD) 2005-2006 01
005 26093957 LEVER, A/TRNS CONT (W/TOW HAUL SWITCH) CK1 (Z75, 15I) (EXC ULT, WSD) 2006-2006 01
005 26093958 LEVER, A/TRNS CONT CK1 (Z75, 92I) (EXC ULT, WSD) 2006-2006 01
005 26109979 LEVER, A/TRNS CONT K1 (ULT, WSD, Z75) 2006-2006 01
006 11609659 ГАЙКА, STRG WHL (M14X1.5, 10THK, 27OD) (FLANGED) (8.917) CK1, 2, 3 2005-2007 01
007 00274414 RING, EXT, SNAP, FITS M19 OR.75 SHAFT, STL, PL 2001-2007 01
008 26094620 COIL KIT, INFL RST STRG WHL MDL CK1 (06-36) (M30, K34, Z55) (EXC NP7, UK3) 2005-2006 01
008 26101829 COIL KIT, INFL RST STRG WHL MDL (INCLS KEY BUZZER SWITCH HARNESS) K1 (06) (M32, UK3, Y91, Z88, 92I) 2003-2006 01
008 26101829 COIL KIT, INFL RST STRG WHL MDL (INCLS KEY BUZZER SWITCH HARNESS) K1 (06) (M30, M32, UK3, Y91, Z88, 52I) 2004-2006 01
008 26101829 COIL KIT, INFL RST STRG WHL MDL (INCLS KEY BUZZER SWITCH HARNESS) CK1 (06) (M30, M32, K34, UK3, Y91, Z75, 15I) (EXC ULT, WSD) 2005-2006 01
008 26101829 COIL KIT, INFL RST STRG WHL MDL (INCLS KEY BUZZER SWITCH HARNESS) CK1 (06) (M30, M32, K34, UK3, Y91, Z75, 92I) (EXC WSD) 2005-2006 01
008 26101829 COIL KIT, INFL RST STRG WHL MDL (INCLS KEY BUZZER SWITCH HARNESS) CK1 (06-36) (M30, M32, K34, UK3, Y91, Z75, 15I) (EXC ULT, WSD) 2005-2006 01
008 26101829 COIL KIT, INFL RST STRG WHL MDL (INCLS KEY BUZZER SWITCH HARNESS) CK1 (06-36) (M30, M32, K34, UK3, Y91, Z75, 92I) (EXC WSD) 2005-2006 01
008 26101829 COIL KIT, INFL RST STRG WHL MDL (INCLS KEY BUZZER SWITCH HARNESS) K1 (06) (M32, K34, UK3, ULT, WSD, Y91, Z75) 2005-2006 01
009 26011609 WASHER, STRG WHL INFL RST MDL COIL (14.865) CK1, 2, 3 2001-2007 01
010 05694191 RING, STRG SHF LK PLT RET (6.524) CK1, 2, 3 2001-2007 01
011 26049186 PLATE, T/SIG SW CANC CAM POSN (W/SHIELD) (6.521) CK1, 2, 3 2001-2007 01
011 26049186 PLATE, T/SIG SW CANC CAM POSN (W/SHIELD) (6.521) CK1, 2, 3 (M30, M32, MT1, M33, MN8) 2006-2007 01
012 26080344 CAM, T/SIG CANC CK1, 2, 3 2003-2007 01
013 26055299 ПРУЖИНА, STRG SHF UPR BRG CK1, 2, 3 2001-2007 01
014 15231641 SEAT, STRG SHF UPR BRG RACE CK1, 2, 3 2001-2007 01
015 26001827 BEARING KIT, STRG SHF UPR (STRG COL INR W/RACE) CK1, 2, 3 2001-2007 01
016 26075818 BRACKET, IGN LK CYL CASE CK1, 2, 3 2005-2007 01
017 26036496 БОЛТ, STRG COL UPR CVR (M4.55 TAP X15) (2.188) CK1, 2, 3 2001-2007 01
018 26036497 БОЛТ, IGN LK CYL CASE (M5X.8X15) (6.760) K1 (06) (M32, UK3, Y91, Z88, 52I) 2005-2006 03
019 88965342 CASE, IGN LK CYL (W/IGN LK ACTUATOR PASS LK SENSOR) CK1, 2, 3 (EXC NP7) 2005-2007 01
020 26014529 БОЛТ, IGN LK CYL CASE (M5X.8X11.5) (TO LOCK MODULE) (6.522) CK1, 2, 3 2001-2007 01
021 12450251 SWITCH, IGN START (W/LK CYL CONT SOL) (W/GEAR TEETH) (ACDelco #12450251) CK1, 2, 3 2003-2007 01
022 26036497 БОЛТ, T/SIG SW (M5X.8X15) (6.760) CK1, 2, 3 2001-2007 02
023 12450066 SWITCH, T/SIG HDLP D/SW WSW WSWA (W/LVR) (W/HAZARD СИГНАЛ) (2.895) (ACDelco #D6298A) CK1, 2, 3 (EXC K34) 2003-2007 01
023 12450066 SWITCH, T/SIG HDLP D/SW WSW WSWA (W/LVR) (W/HAZARD СИГНАЛ) (ACDelco #D6298A) CK1, 2, 3 (EXC K34) 2003-2007 01
023 12450066 SWITCH, T/SIG HDLP D/SW WSW WSWA (W/LVR) (W/HAZARD СИГНАЛ) (2.895) (ACDelco #D6298A) CK1, 2, 3 (EXC K34) 2003-2007 01
023 12450067 SWITCH, T/SIG HDLP D/SW WSW WSWA (W/LVR) (INCLUDE HAZARD FLASH SWITCH) (2.895) (ACDelco #D6299A) CK1, 2, 3 (K34) 2003-2007 01
023 12450067 SWITCH, T/SIG HDLP D/SW WSW WSWA (W/LVR) (INCLUDE HAZARD FLASH SWITCH) (ACDelco #D6299A) CK1, 2, 3 (K34) 2003-2007 01
023 12450067 SWITCH, T/SIG HDLP D/SW WSW WSWA (W/LVR) (INCLUDE HAZARD FLASH SWITCH) (2.895) (ACDelco #D6299A) CK1, 2, 3 (K34) 2003-2007 01
024 12052834 RETAINER, (WSW WSWA WRG HARN CONN) 2001-2007 01
025 26087973 ШЛАНГИ, STRG COL (W/O STRG SHF, INCLS STRG COL INR RACE) CK1 (M30, M32, M70, MT1) 2006-2007 01
025 88965525 ШЛАНГИ, STRG COL (W/UPR STRG SHF) CK1, 2, 3 2006-2007 01
026 26034561 GUIDE, STRG COL SPR CK1, 2, 3 2001-2007 01
027 26065450 ПРУЖИНА, STRG COL TILT CK1, 2, 3 2002-2007 01
028 26036317 PIN, STRG COL TILT LK REL LVR PIV (M5X0.8) (T-25 TORX) CK1, 2, 3 2001-2007 01
029 26090770 SHAFT, STRG CK1, 2, 3 (EXC NP7) 2003-2007 01
030 26069514 LEVER, STRG COL TILT WHL REL (EXTERNAL) CK1, 2, 3 2001-2007 01
031 26036497 БОЛТ, STRG COL LWR TR CVR (M5X.8X15) (6.760) CK1, 2, 3 2001-2007 02
032 26092432 CONTROL, A/TRNS (INCLS 33, 35-39, 43-47) (INCLS SHIFT LEVER ПРУЖИНА PK LK CBL) CK1 (M30, M32, M70) 2006-2006 01
033 CABLE, A/TRNS PK LK (PART OF 32) 2006-2007
034 26036369 БОЛТ, STRG COL LINEAR SHFT SHF (M6X14) CK1, 2, 3 2002-2007 02
035 BUSHING, CAM (PART OF 32) 2006-2007
036 LEVER, A/TRNS RANGE SEL LVR CBL (PART OF 32) 2006-2007
037 BUSHING, CAM (PART OF 32) 2006-2007
038 БОЛТ, A/TRNS SHFT LK LVR (PART OF 32) 2006-2007
039 PLATE, A/TRNS CONT LVR DTNT (PART OF 32) 2006-2007
040 26035516 БОЛТ, A/TRNS SHFT LK CONT SOL BRKT CK1, 2, 3 2002-2007 03
041 SWITCH, PARK POSN 2001-2007
042 BUMPER, STRG COL HSG (PART OF 50) 2006-2007
043 SHAFT, STRG COL LINEAR SHFT (PART OF 32) 2006-2007
044 BRACKET, STRG COL LINEAR SHFT (PART OF 32) 2006-2007
045 BUMPER, STRG COL HSG (PART OF 32) 2006-2007
046 ACTUATOR, STRG COL SHFT LVR (PART OF 32) 2006-2007
047 26036369 БОЛТ, STRG COL LINEAR SHFT SHF (PART OF 32) (M6X14) CK1, 2, 3 2002-2007 02
048 26036495 БОЛТ, STRG COL HSG SUPT (M8 X 1.25-6G (22)THD) CK1, 2, 3 2001-2007 04
049 26036521 PIN, STRG COL PIV CK1, 2, 3 2001-2007 02
050 88964353 SUPPORT, STRG COL HSG (INCLS 42) (THICKER TOP BUMBER (LESS UP TRAVEL) K1 (06-43) (M32) 2005-2006 01
051 26072360 JACKET, STRG COL CK1, 2, 3 (MT1, M74, M32, M30) 2001-2007 01
052 26094827 ACTUATOR, A/TRNS SHFT LK CONT CK1, 2, 3 2003-2007 01
053 88963617 BEARING, STRG SHF LWR CK1, 2, 3 2004-2007 01
054 26104070 SENSOR, STRG WHL POSN CK1 (MT1, M30, M32) 2003-2007 01
055 19180263 RETAINER, STRG SHF LWR BRG SEAL CK1, 2 2001-2006 01
056 11514597 ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (PART OF 57) (2.383) 2001-2007 01
057 19153614 SHAFT, UPR INTER STRG (INCLS 56, 58) (W/SM YOKE) CK1, 2, 3 2001-2007 01
058 26058124 БОЛТ, S/GR CPLG (PART OF 57) (M10X1.5X36) (HFH W/RETAINER NYLON LOCK) (UPR TO STRG COL) CK1, 2, 3 2001-2006 01
059 26090202 LEVER, STRG COL TILT LK REL (INTERNAL) CK1, 2, 3 2001-2007 01
