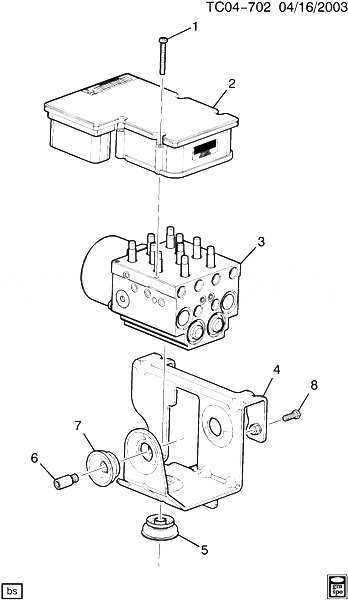

(TC04-702) - 2003-2006 CK1(06-36) BRAKE CONTROL MODULE (EBCM)(ACTIVE BRAKE JL4) CADILLAC - ESCALADE ESV (AWD) 2006
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 12475229 | БОЛТ, ELEK BRK CONT MDL CVR (M4X0.7X25 PAN HD) | CK1, 2, 3 | 2003-2006 | AR |
| 005 | 88982913 | BUSHING, ELEK BRK CONT MDL BRKT (PART OF 4) | CK1 (06-36) (JL4) | 2003-2006 | 01 |
| 006 | 89040146 | БОЛТ, BRK PRESS MOD VLV BRKT | CK1 (06-36) | 2004-2006 | 02 |
| 007 | 88982912 | BUSHING, ELEK BRK CONT MDL BRKT (PART OF 4) | CK1 (06-36) (JL4) | 2003-2006 | 02 |
| 008 | 11570082 | БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (ELEK BRK CONT MDL BRKT) (ACDelco #11570082)|
| 2003-2006 |
03 |
|
