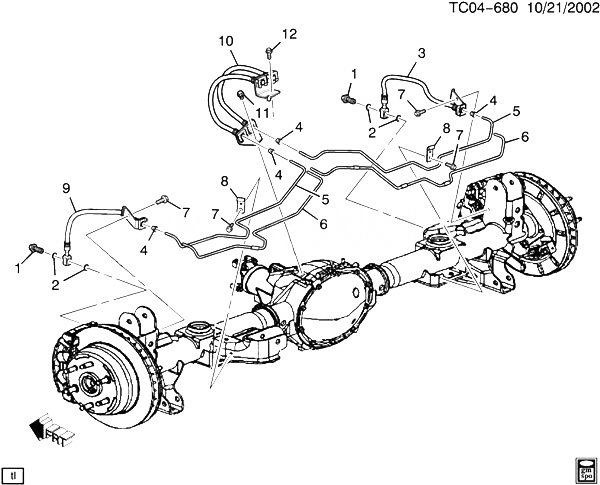

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11570052 |
БОЛТ, RR BRK HOSE (PART OF 3, 9) (M10X1X27.5, 16.9THD) |
CK1, 2, 3 |
2006-2006 |
01 |
| 002 |
21012386 |
WASHER, RR BRK HOSE (LH RH) (PART OF 3, 9) (10.3X14.5X1.61) (COPPER) (ACDelco #21012386)
| CK1 (JH1) |
2006-2006 |
01 |
|
| 003 |
15884704 |
HOSE, RR BRK C/OVR (CORNER) (INCLS 1, 2) (ACDelco #176-1413)
| CK1 (06-36) (JH2) |
2003-2006 |
01 |
|
| 004 |
11588802 |
ГАЙКА, HEX, 3/8-24X9/16, 12.0 O.D., LOW CARB STEEL (RR BRK C/OVR PIPE)
|
2006-2006 |
04 |
|
| 005 |
12547207 |
TUBING, BULK, 3/16 X 20 FT ROLL, STL (RR BRK C/OVR) (8.964)
|
2003-2006 |
AR |
|
| 006 |
12360513 |
ARMOR SHIELD, BRK PIPE (CUT TO LENGTH) (BRK PIPE) |
|
2003-2006 |
AR |
| 007 |
11508534 |
БОЛТ, HFH, M8X1.25X16, 16.8 O.D., MACH PT, 6171M, POR (RR BRK C/OVR PIPE BRKT)
|
2003-2006 |
04 |
|
| 008 |
15148676 |
CLIP, RR BRK C/OVR PIPE (CLOSED LOOP) (DIA 8.75MM, C-TO-C 36.5, WIDTH 20, HOLE 11MM, SAE1008-1010) |
CK1 (06) (LQ9, JH2, JL4) |
2006-2006 |
02 |
| 009 |
15884703 |
HOSE, RR BRK C/OVR (CORNER) (INCLS 1, 2) (ACDelco #176-1412) |
CK1 (06-36) (JH2) |
2003-2006 |
01 |
| 010 |
15884706 |
HOSE, RR BRK (CENTER FEED) (DUAL HOSE) (ACDelco #15884706) |
CK1 (06-36) (JH2, JL4) |
2006-2006 |
01 |
| 011 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (RR BRK HOSE BRKT) (ACDelco #11570082)
|
2003-2006 |
01 |
|
| 012 |
11515755 |
БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (RR BRK C/OVR PIPE) (T/W 12345493 REPLCS 25534835)
|
2003-2006 |
01 |
|
