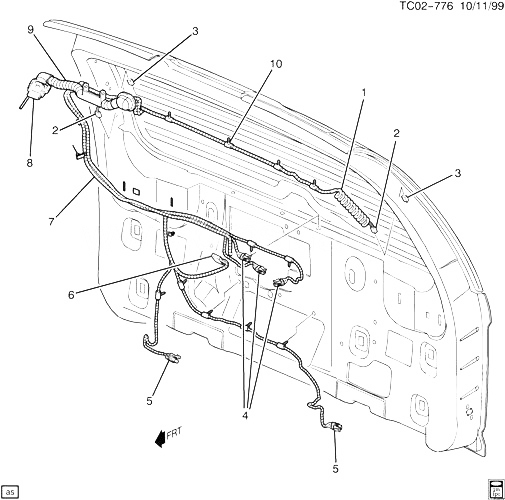

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15118093 |
HARNESS, L/GATE WRG (INCLS 2, 10) (W/CK VALVE) |
CK1, 2 (06) (E52) |
2003-2006 |
01 |
| 001 |
15118093 |
HARNESS, L/GATE WRG (INCLS 2, 10) (W/CK VALVE) (2.480) |
CK1, 2 (06) (E52) |
2003-2006 |
01 |
| 002 |
|
GROMMET, BODY WRG HARN (PART OF 1) |
|
2000-2006 |
|
| 003 |
|
CONNECTOR) (PART OF WINDOW, L/GATE - 17.190 |
|
2000-2006 |
|
| 005 |
12116247 |
CONNECTOR, SW-DR LK (BLACK) (2-WAY FEMALE) (W/LEADS) (13.090) (ACDelco #PT288) |
CK1, 2 (06) (E52) |
2004-2006 |
01 |
| 006 |
12167129 |
CONNECTOR, SW-R/WDO WPR WA (BLACK) (5-WAY FEMALE) (W/LEADS) (M/P 280) (10.525) (ACDelco #PT795) |
CK1, 2 (06) |
2000-2006 |
01 |
| 007 |
88987941 |
HOSE, R/WDO WA PUMP (FROM UPPER LIFT GATE TO WIPER) (W/CHECK VALVE)
| CK1, 2 (06) (E52) |
2000-2006 |
01 |
|
| 008 |
|
GROMMET, L/GATE WRG HARN EXTN HARN |
|
2003-2006 |
|
| 009 |
15173014 |
HARNESS, L/GATE WRG HARN EXTN (INCLS 8) |
CK1, 2 (06) (E52) |
2003-2006 |
01 |
| 010 |
|
CLIP, L/GATE WRG HARN (PART OF 1) |
|
2000-2006 |
|
