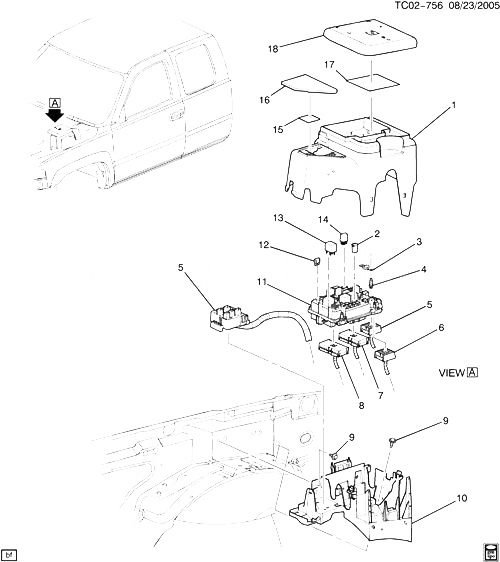

(TC02-756) - 2005-2007 CK1,2,3 BLOCK-UNDERHOOD BEC (EXC HYBRID HP2) CADILLAC - ESCALADE ESV (AWD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15215145 COVER, ENG WRG HARN J/BLK (U/HOOD BEC) (INCLS 15-18) CK1 (03-06-36-53) (EXC HP2) 2006-2006 01
002 15319477 FUSE, 30AMP, PINK, J-CASE, FEMALE, REGULAR (PART OF 11) 2005-2007 01
002 15319478 FUSE, 40AMP, GREEN, J-CASE, FEMALE (PART OF 11) (ACDelco #15319478) 2005-2007 03
002 15319479 FUSE, 50 AMP, RED, J-CASE, FEMALE, REGULAR BLOW (PART OF 11) 2005-2007 03
002 15319480 FUSE, 60 AMP, YELLOW, J-CASE, FEMALE, REGULAR BLOW (PART OF 11) 2005-2007 01
003 15305191 FUSE, 175 AMP MEGA () ( FUSE COLOR, BLACK W/SIZE STAMPED IN WHITE ON CASE) 2005-2007 01
004 12193775 STUD, ENG WRG HARN J/BLK (PART OF 11) (M8 X 1.25 X 35.9) CK1, 2, 3 2005-2007 01
005 HARNESS, FWD LP WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/ПЕРЕДНИЕ ФАРЫ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2005-2007
006 HARNESS, CHAS WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/CHASSIS ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2005-2007
007 HARNESS, ENG WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/ДВИГАТЕЛЬ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2005-2007
008 HARNESS, I/P WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/ПРИБОРНАЯ ПАНЕЛЬ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2005-2007
009 11517342 БОЛТ, HEX HD, W/FL WA, M6X1X20, 9.53 THD, 17 O.D., P-PT, 9.8, 6280M (ENG WRG HARN FUSE BLK BRKT) 2005-2007 04
010 15175348 BRACKET, ENG WRG HARN FUSE BLK (USED TO MOUNT U/H BEC) CK1, 2, 3 2005-2007 01
011 15786043 BLOCK, ENG WRG HARN JUNC (2, 4, 12-15) (W/60 AMP J-CASE FUSE) CK1, 2 (06-36) (EXC T89) 2005-2006 01
012 12092075 FUSE, MINI (30A) (GREEN) (PART OF 11) (ACDelco #12092075) 2005-2007 04
012 88909753 FUSE, MINI, 10 AMP, RED (PART OF 11) 2005-2007 19
012 88909754 FUSE, 15A, MINI, BLUE (PART OF 11) (ACDelco #ATM15-25) 2005-2007 17
012 88909755 FUSE, 20A, MINI, YELLOW (PART OF 11) (ACDelco #ATM20-25) 2005-2007 03
012 88909756 FUSE, 25A, MINI, CLEAR (PART OF 11) (ACDelco #ATM25-25) 2005-2007 02
013 12177236 RELAY, STRTR (4 TERM) (PART OF 11) (GRAY) (SPST 280 MINI) (4-WAY) (SQUARE CASE) (W/RESISTOR) (LABELED 12177236) (9.778) (ACDelco #D7065C) CK1, 2, 3 2005-2007 01
013 12177236 RELAY, IGN (4 TERM) (PART OF 11) (GRAY) (SPST 280 MINI) (4-WAY) (SQUARE CASE) (W/RESISTOR) (LABELED 12177236) (9.778) (ACDelco #D7065C) CK1, 2, 3 2005-2007 01
013 12177236 RELAY, PARK LP (4 TERM) (PART OF 11) (GRAY) (SPST 280 MINI) (4-WAY) (SQUARE CASE) (W/RESISTOR) (LABELED 12177236) (9.778) (ACDelco #D7065C) CK1, 2, 3 2005-2007 01
013 19115080 RELAY, WSWA PUMP (PART OF 11) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688) CK1, 2 (06-36) (EXC T89) 2006-2006 01
014 19115080 RELAY, DAYTIME RUNNING LP (5-WAY MALE) (GRAY) (CODE 8866) (PART OF 11) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688) CK1, 2, 3 2005-2007 01
014 19115080 RELAY, HDLP HIGH BEAM (5-WAY MALE) (GRAY) (CODE 8866) (PART OF 11) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688) CK1, 2, 3 2005-2007 01
014 19115080 RELAY, HDLP LOW BEAM (5-WAY MALE) (GRAY) (CODE 8866) (PART OF 11) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688) CK1, 2, 3 2005-2007 01
014 19115080 RELAY, СИГНАЛ (5-WAY MALE) (GRAY) (CODE 8866) (PART OF 11) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688) CK1, 2, 3 2005-2007 01
014 19115080 RELAY, F/PMP (5-WAY MALE) (GRAY) (CODE 8866) (PART OF 11) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688) CK1, 2 (06-36) (EXC T89) 2005-2006 01
014 19115080 RELAY, A/C CMPR (5-WAY MALE) (GRAY) (CODE 8866) (PART OF 11) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688) CK1, 2, 3 2005-2007 01
015 15215143 LABEL, ENG WRG HARN ACSRY RLY FUSE IDENT (PART OF 1) CK1, 2, 3 2006-2006 01
016 COVER, ENG WRG HARN J/BLK (PART OF 1) 2005-2007
017 LABEL, BAT INFO (PART OF 1) 2005-2007
018 15215144 COVER, ENG WRG HARN J/BLK (TOP W/LABEL) (PART OF 1) CK1 (03-06-36-53) (EXC HP2) 2006-2006 01
