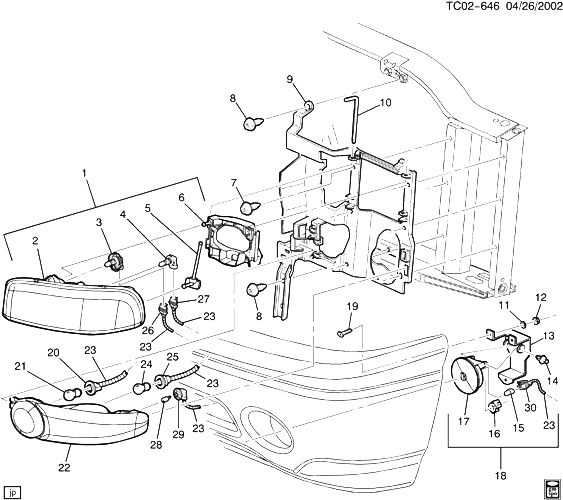

(TC02-646) - 2005-2006 K1(06-43) ПЕРЕДНИЕ ФАРЫ (G.M.C. Z88, Y91) CADILLAC - ESCALADE ESV (AWD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15218077 HEADLAMP, (INCLS 2-6) (INCLS HDLP BULBS, HIGH LOW) K1 (06-53) (Y91, Z88) 2001-2006 01
001 15218078 HEADLAMP, (INCLS 2-6) (INCLS HDLP BULBS, HIGH LOW) K1 (06-43-53) (Y91, Z88) 2001-2006 01
002 HEADLAMP, (W/O BULB) (PART OF 1) 2005-2006
003 09441732 BULB, HDLP (HIGH BEAM) (PART OF 1) (W/TRADE #9005) (ACDelco #9005) CK1, 2, 3 2001-2007 02
004 01999437 BULB, HDLP (LOW BEAM) (PART OF 1) (TRADE #9005LL) (ACDelco #9005LL) CK1 (06-43-53) (Y91, Z88) 2001-2007 02
005 ADJUSTER, HDLP VERT (PART OF 1) 2005-2006
006 BRACKET, HDLP (PART OF 1) 2005-2006
007 11517110 SCREW - WAFER HD MACHINE, M6X1X25, P-POINT (HDLP HSG PNL) (8.908) 2001-2007 04
008 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (HDLP HSG PNL) 2001-2007 12
011 11503736 RETAINER, M6X1 PUSH-ON (FRT BPR IMP BAR) 2001-2007 04
012 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (FRT BPR IMP BAR) 2001-2007 04
013 BRACKET, FRT FOG LP (PART OF 18) 2005-2006
014 16514113 RETAINER, FRT FOG LP (PART OF 18) (NOMINAL HOLE 6.3MM) K1, 2, 3 2001-2006 02
015 12450143 BULB, FRT FOG LP (PART OF 18) (TRADE #880L) (LONGER LIFE) (ACDelco #880L) K1 (06) (VT4, Y91, Z88) 2003-2006 02
016 11609872 ГАЙКА, FRT FOG LP ADJ (PART OF 18) (32.0 X 24.2) (8.920) K1, 2, 3 2001-2006 02
017 LAMP, FRT FOG (PART OF 18) 2005-2006
018 16531085 LAMP, FRT FOG (INCLS 13-17) (W/BRKT) K1 (06) (VT4, Y91, Z88) 2001-2006 01
018 16531086 LAMP, FRT FOG (INCLS 13-17) (W/BRKT) K1 (06-43) (VT4, Y91, Z88) 2005-2006 01
019 11518224 STUD - T HEAD 6 LOBED SOCKET (FRT BPR IMP BAR) 2001-2007 06
020 15306157 SOCKET, DAYTIME RUNNING LP (PART OF 23) (NATURAL) (2 WAY W/LEADS) (ACDelco #LS94) CK1, 2, 3 2001-2007 02
021 15199562 BULB, DAYTIME RUNNING LP (14V) (CLEAR) (4114K) (ACDelco #4114K) K1, 2, 3 (EXC T84) 2001-2006 02
022 15199554 LAMP, DAYTIME RUNNING FRT SI MKR PARK T/SIG (2.585) K1 (06-43) (Y91, Z88) 2005-2006 01
022 15199554 LAMP, DAYTIME RUNNING FRT SI MKR PARK T/SIG K1 (06-43) (Y91, Z88) 2005-2006 01
022 15199555 LAMP, DAYTIME RUNNING FRT SI MKR PARK T/SIG (2.585) K1 (06-43) (Y91, Z88) 2005-2006 01
022 15199555 LAMP, DAYTIME RUNNING FRT SI MKR PARK T/SIG K1 (06-43) (Y91, Z88) 2005-2006 01
023 HARNESS, FWD LP WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/FRONT LAMP ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (INCLS 20, 25-27, 29, 30) 2001-2007
024 12450182 BULB, TRADE# 4157NAK) (AMBER (PARK T/SIG LP) (ACDelco #4157NA/K) 2001-2007 02
025 15306147 SOCKET, PARK T/SIG LP (PART OF 23) (BROWN) (3-WAY FEMALE) (WEDGE BASE RT ANGLE) (SEALED) (W/LEADS) (ACDelco #LS92) K1, 2 2003-2006 02
025 15306147 SOCKET, PARK T/SIG LP (PART OF 23) (BROWN) (3-WAY FEMALE) (WEDGE BASE RT ANGLE) (SEALED) (W/LEADS) (2.596) (ACDelco #LS92) K1, 2 2003-2006 02
026 12101898 CONNECTOR, LP-HDLP HIGH BEAM (FLAT TERM, W/LEADS) (PART OF 23) (BLACK) (2-WAY FEMALE) (W/LEADS) (2.535) (ACDelco #PT168) K1, 2, 3 2001-2007 02
027 12101898 CONNECTOR, LP-HDLP LOW BEAM (FLAT TERM, W/LEADS, TAN SEAL) (PART OF 23) (BLACK) (2-WAY FEMALE) (W/LEADS) (2.535) (ACDelco #PT168) K1, 2, 3 (Y91, Z88) 2001-2007 02
028 09421330 BULB, TRADE#194, 12V, 2CP (FRT SI MKR LP) (ACDelco #L194) 2001-2007 02
030 12101898 CONNECTOR, LP-FOG (FLAT TERM, W/LEADS, TAN SEAL) (PART OF 23) (BLACK) (2-WAY FEMALE) (W/LEADS) (2.535) (ACDelco #PT168) K1, 2, 3 2003-2007 02
030 12102664 CONNECTOR, LP-FOG (ORANGE SEAL) (PART OF 23) (BLACK) (2-WAY FEMALE) (W/LEADS) (M/P 280 W/ORANGE SEAL) (ROUND) (2.535) (ACDelco #PT331) K1, 2 2004-2006 02
030 88986438 CONNECTOR, LP-FOG (PART OF 23) (GRAY) (10-WAY FEMALE) (W/LEADS) (16.480) K1, 2, 3 2003-2006 01
