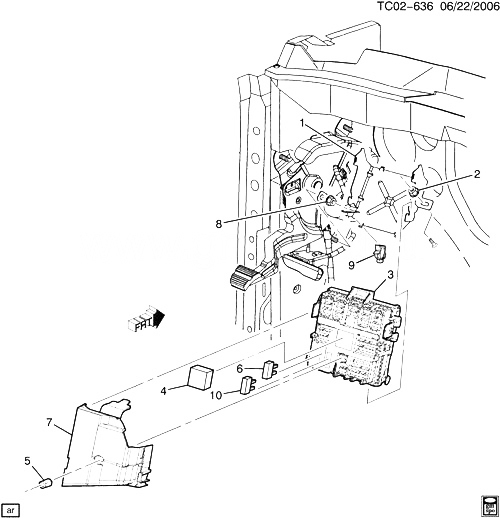

(TC02-636) - 2003-2007 CK1,2,3 BLOCK-I/P MID BEC CADILLAC - ESCALADE ESV (AWD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25867232 BRACKET, DA WRG HARN J/BLK CK1, 2, 3 2006-2007 01
002 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (DA WRG HARN J/BLK BRKT) 2003-2007 01
003 15266958 BLOCK, BODY WRG HARN JUNC (INCLS 4, 6, 10) CK1, 2, 3 2003-2007 01
004 12177236 RELAY, R/WDO DEFG (4 TERM) (PART OF 3) (GRAY) (SPST 280 MINI) (4-WAY) (SQUARE CASE) (W/RESISTOR) (LABELED 12177236) (ACDelco #D7065C) CK1, 2, 3 2003-2007 01
005 15599095 ГАЙКА, DA WRG HARN FUSE BLK CVR (M6X1) (PUSH ON) CK1, 2, 3 2003-2007 01
006 12088575 BREAKER, CIRCUIT, 25AMP, WHITE (PART OF 3) 2003-2007 01
007 15076505 COVER, DA WRG HARN FUSE BLK CK1, 2, 3 2003-2007 01
008 11516780 ГАЙКА, HEX W/CON WA, M8X1.25, 10THK, 19 O.D., 10, 7111M (PARK BRK CONT MDL) (8.917) 2003-2007 03
009 10150076 CLIP, FUSE BLK WRG HARN (18.8 MM DIA) (ROUND CLIP) (3.425) CK1, 2, 3 2003-2007 01
010 12077863 BREAKER, CIRCUIT, 30 AMP, GREEN (PART OF 3) 2003-2007 01
