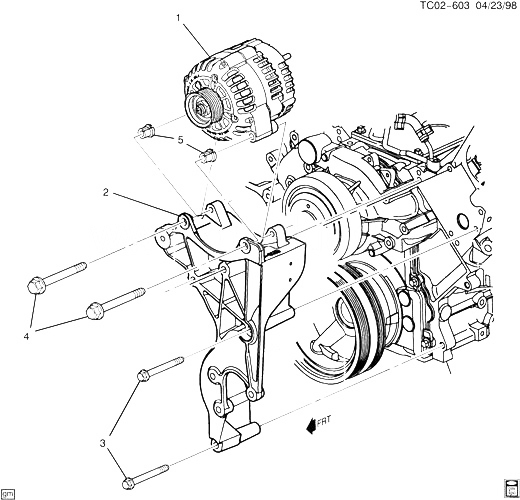

(TC02-603) - 2005-2007 CK КРЕПЛЕНИЕ ГЕНЕРАТОРА (LM7/5.3T,LR4/4.8V,LQ4/6.0U,LQ9/6.0N,L33/5.3B,L59/5.3Z,EXC HYBRID HP2) CADILLAC - ESCALADE ESV (AWD) 2006
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 15128978 | GENERATOR, (ACDelco #15128978)| CK1 (KW1) |
2006-2007 |
01 |
|
| 002 | 12554030 | BRACKET, GEN P/S PUMP (INCLS 5) (INCLS SPACER) | CK1 (LQ9) | 2004-2007 | 01 |
| 003 | 11516744 | BOLT-HFH, M10X1.5X110, 26 THD, 22.3 OD, 9.8, 7114M (GEN P/S PUMP BRKT) | 1999-2007 | 04 | |
| 004 | 11516360 | БОЛТ, HFH M10X1.2X90, 9.8, 7114M, 22.3 OD HDR PT (GEN) | 1999-2007 | 02 | |
| 005 | 12550090 | SPACER, GEN P/S PUMP BRKT (PART OF 2)| CK1 (LQ9) |
2004-2007 |
02 |
|
