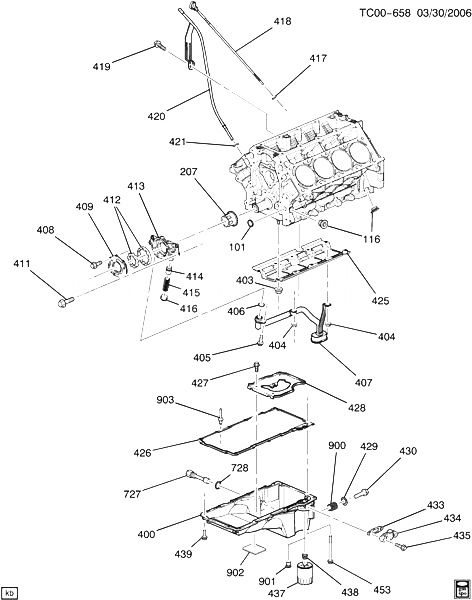

(TC00-658) - 2002-2007 CK ДВИГАТЕЛЬ В СБОРЕ-6.0L V8 ЧАСТЬ 4 МАСЛОНАСОС, PAN СОПРЯЖЕННЫЕ ДЕТАЛИ(LQ9/6.0N) CADILLAC - ESCALADE ESV (AWD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
101 09427693 PLUG, CUP 5/8, CORROSION RESISTANT STL (ENG BLK OIL GAL) (1.531) 2002-2007 01
116 11588949 PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK OIL GAL) 2002-2007 02
207 12556582 SPROCKET, CR/SHF CK1 (LQ9) 2004-2007 01
400 12579273 PAN, OIL (INCLS 420, 426, 427, 429, 430, 433-435, 438, 439, 453, 727, 728, 900-903) (INCLS BAFFLE, INSERT, PLUG, SEAL, SWITCH, COVER, GASKET, FITTING, BOLT) CK1 (LQ9) 2004-2006 01
403 11515742 ГАЙКА, PREVAILING TORQUE TENSION FLG HD (M8X1.25X17.4 OD (CR/SHF OIL DFL) 2002-2007 08
404 11517031 ГАЙКА, HFH, M8X1.25, 9.4THK, 17.4 O.D., 10, TIN ZN (O/PMP SUC PIPE) 2002-2007 02
405 11517517 БОЛТ, HFH, M6X1X16, 13.5 THD, 14.2 OD, 9.8, SN-ZN, MACH, HDR-PT (O/PMP SUC PIPE) 2002-2007 01
406 12584922 SEAL, O/PMP (O RING) (PART OF 407) (20.69MM I.D., 4.20MM THICKNESS) (TEFLON COATED) CK1 (LQ9) 2004-2007 01
407 12563961 SCREEN, O/PMP (W/SUC PIPE) (INCLS 406) CK1 (LQ9) 2004-2007 01
408 11519133 БОЛТ, SELF TAP, M6X1X20, 13.2 O.D. (PART OF 413) 2002-2007 01
409 COVER, O/PMP (PART OF 413) 2002-2007
411 11515758 БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (O/PMP) 2002-2007 04
412 GEAR SET, O/PMP (PART OF 413) 2002-2007
413 12586665 PUMP, OIL (INCLS 408, 409, 412, 414-416) CK1 (LQ9) 2002-2007 01
414 VALVE, OIL PRESS RLF (PART OF 413) 2002-2007
415 ПРУЖИНА, OIL PRESS RLF VLV (PART OF 413) 2002-2007
416 PLUG, OIL PRESS RLF VLV BORE (PART OF 413) 2002-2007
417 SEAL, OIL LVL IND (O RING) (PART OF 418) 2002-2007
418 12610053 INDICATOR, OIL LVL (INCLS 417) (WITH DUAL O-RING) CK1 (LQ9) 2004-2007 01
419 11515765 БОЛТ, HFH, M10X1.5X25, 22.30 O.D., HDR PT, 10.9, 7112M (OIL LVL IND TUBE) 2002-2007 01
420 12563918 TUBE, OIL LVL IND (INCLS 421) (INCLS SEAL) CK1 (LQ9) 2004-2007 01
421 24504091 SEAL, OIL LVL IND TUBE (O RING) (PART OF 420) (BLACK) (6.07MM ID, 1.78MM DIA) CK1 (LQ9) 2004-2007 01
425 12611129 DEFLECTOR, CR/SHF OIL CK1 (LQ9) 2004-2007 01
426 12558760 GASKET, МАСЛЯНЫЙ ПОДДОН (PART OF 400) (CODE CNB WYA) CK1 (LQ9) 2004-2007 01
427 11519133 БОЛТ, SELF TAP, M6X1X20, 13.2 O.D. (МАСЛЯНЫЙ ПОДДОН BFL) (PART OF 400) 2002-2007 04
428 BAFFLE, МАСЛЯНЫЙ ПОДДОН (PART OF 400) 2002-2007
429 03536966 SEAL, МАСЛЯНЫЙ ПОДДОН DRN PLUG (O RING) (PART OF 400, 430) CK1 (LQ9) 2004-2007 01
430 11562588 PLUG, МАСЛЯНЫЙ ПОДДОН DRN (PART OF 400) (INCLS 429) (W/ SEAL) (EXC MAGNET) CK1 (LQ9) 2002-2007 01
433 12611384 GASKET, МАСЛЯНЫЙ ПОДДОН CVR (USE T/W 11588714 BOLT) (PART OF 400) CK1 (LQ9) 2004-2006 01
434 12577903 COVER, МАСЛЯНЫЙ ПОДДОН (PART OF 400) CK1 (LQ9) 2004-2007 01
435 11588714 БОЛТ, HFH, M6X1X30, 22.7 THD, 14.2 OD, 8.8, GMW3359, M-PT. (PART OF 400) 2002-2007 02
437 19210335 ФИЛЬТР, МАСЛЯНЫЙ (ACDELCO FLEETPACK PROGRAM) (ACDelco #PF46F) (DURAPACK) (BULK PKG, QTY 12) CK1 (LQ9) 2004-2006 01
437 88984215 ФИЛЬТР, МАСЛЯНЫЙ (W/ANTI-DRAIN BACK VALVE-CONTAINS OEM GASKET) (U.S. ORDERS ONLY) (ACDelco #88984215) (DURAGUARD) CK1 (LQ9) 2004-2006 01
438 12552357 FITTING, OIL FLTR (PART OF 400) (13/16 X 16 UNC-M20X1.5 SAE 12L14) CK1 (LQ9) 2004-2006 01
439 11515758 БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (PART OF 400) 2002-2007 12
453 12554990 БОЛТ, МАСЛЯНЫЙ ПОДДОН (REAR POSITIONS) (PART OF 400) (M6X1.0X136) CK1 (LQ9) 2004-2007 02
727 12603782 SWITCH, ENG OIL LVL IND (PART OF 400) (INCLS 728) CK1, 2, 3 (LM7, LR4, LQ4, LQ9, L59, L33) 2005-2007 01
728 10151633 SEAL, ENG OIL LVL SEN (PART OF 400, 727) CK1, 2, 3 2002-2007 01
900 INSERT, МАСЛЯНЫЙ ПОДДОН DRN PLUG THD (PART OF 400) 2002-2007
901 25014051 VALVE, OIL FLTR BYPASS (PART OF 400) CK1 (LQ9) 2004-2007 01
902 LABEL, МАСЛЯНЫЙ ПОДДОН IDENT (PART OF 400) 2002-2007
903 12558759 RIVET, МАСЛЯНЫЙ ПОДДОН GSKT (PART OF 400) CK1 (LQ9) 2004-2007 02
