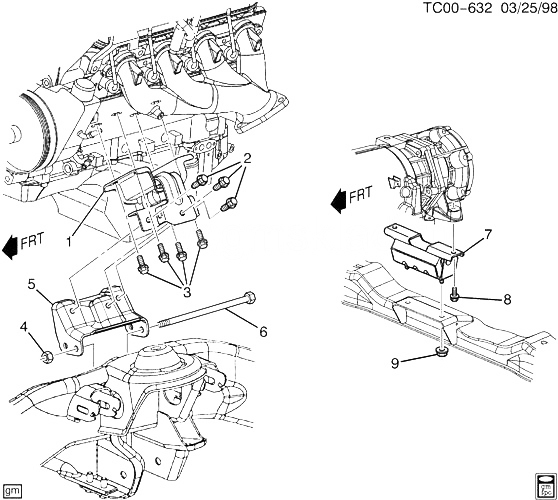

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15226255 |
MOUNT, ENG (PINK) |
K1 (06-36) (LQ4, LQ9) |
2005-2006 |
02 |
| 002 |
11609475 |
БОЛТ, HFH W/CON SPR WA, M10X1.5X33, 24 THD, 22.3 OD, 10.9, GMW3359 (ENG MT SUPT)
|
1999-2007 |
06 |
|
| 003 |
11516941 |
БОЛТ, HEX HD CONICAL SPR WA, M10X1.5X20 (ENG MT) |
|
1999-2007 |
08 |
| 004 |
|
ГАЙКА, ENG MT BRKT (PART OF 5) |
|
2005-2007 |
|
| 005 |
15113847 |
BRACKET, ENG MT (INCLS 4) |
K1 (03-06-36-53) (LM7, LQ4, LQ9, LR4, L33, L59) |
2005-2006 |
01 |
| 005 |
15113849 |
BRACKET, ENG MT (INCLS 4) |
K1 (03-06-36-53) (LM7, LQ4, LQ9, LR4, L33, L59) |
2005-2006 |
01 |
| 006 |
11517018 |
BOLT ASM - METRIC HEX HD CON SPR WA, M12X1.75X210 (ENG MT BRKT) |
|
1999-2007 |
02 |
| 007 |
15113134 |
MOUNT, TRANS
| K1 |
2001-2007 |
01 |
|
| 008 |
11516918 |
BOLT ASM-M10X1.5X30, 25 THD, 20 OD, 10.9, 7114M (TRANS MT) |
|
1999-2007 |
02 |
| 009 |
11516754 |
ГАЙКА, HEX, W/CON SPR WA, M10X1.5, 10THK, 28 O.D., 10, 7111M (TRANS MT)
|
1999-2007 |
02 |
|
