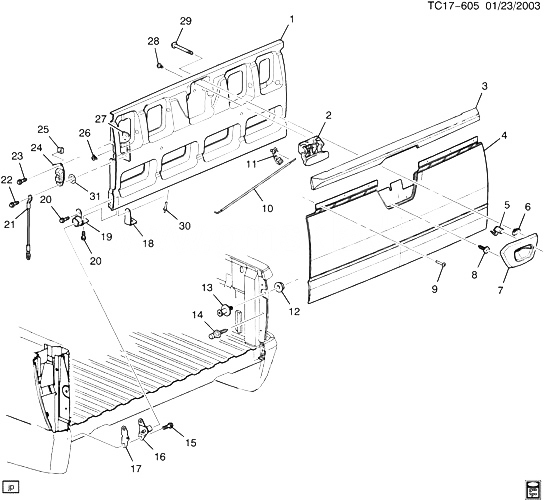

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
89023529 |
PANEL, E/GATE INR (INCLS 18, 26, 27) (*KIT1) |
K159 (36) (Y91, Z75) |
2005-2006 |
01 |
| 002 |
15077439 |
HANDLE, PUBX E/GATE LAT (INCLS 11) (CHROME) (*KIT1) |
K159 (36) (Y91, Z75) |
2005-2006 |
01 |
| 003 |
88944304 |
CAP, E/GATE UPR FIN MLDG END (PAINT TO MATCH) (*KIT1) |
K159 (36) (Y91, Z75) |
2005-2006 |
01 |
| 004 |
|
PANEL, E/GATE (*KIT1) |
|
2005-2006 |
|
| 005 |
15785101 |
CYLINDER, E/GATE LK (UNCODED) |
K1, 2, 3 |
2005-2006 |
01 |
| 006 |
11518121 |
ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (PART OF 7) |
|
2005-2006 |
02 |
| 007 |
88944317 |
BEZEL, PUBX E/GATE LAT HDL (INCLS 6, 8) (PAINT TO MATCH) |
K159 (36) (Y91, Z75) |
2005-2006 |
01 |
| 008 |
25639958 |
RETAINER, PUBX E/GATE LAT ROD (PART OF 7) (24.1MM LONG) (14.645) |
K159 (36) (Y91, Z75) |
2005-2006 |
02 |
| 009 |
|
RIVET, E/GATE UPR LK (*KIT1) |
|
2005-2006 |
|
| 010 |
15761245 |
ROD, E/GATE LAT (*KIT1) |
K159 (36) (Y91, Z75) |
2005-2006 |
01 |
| 010 |
15761246 |
ROD, E/GATE LAT (*KIT1) |
K159 (36) (Y91, Z75) |
2005-2006 |
01 |
| 011 |
|
CLIP, E/GATE LAT ROD (PART OF 2) (*KIT1) |
|
2005-2006 |
|
| 012 |
11516754 |
ГАЙКА, HEX, W/CON SPR WA, M10X1.5, 10THK, 28 O.D., 10, 7111M (PUBX E/GATE STKR)
|
2005-2006 |
02 |
|
| 013 |
11570162 |
STRIKER, PUBX E/GATE (BLACK) |
K1, 2, 3 |
2005-2005 |
02 |
| 014 |
11609938 |
БОЛТ, PUBX E/GATE CBL |
K1 (36) |
2005-2006 |
02 |
| 015 |
15052033 |
БОЛТ, E/GATE LWR HGE (BODY SI) (M8X1.25X20) (8.900) |
CK1 |
2005-2005 |
04 |
| 016 |
15078745 |
HINGE, PUBX E/GATE (PUBX SI) |
K1 (36) |
2005-2006 |
01 |
| 016 |
15078746 |
HINGE, PUBX E/GATE (PUBX SI) |
K1 (36) |
2005-2005 |
01 |
| 017 |
15048359 |
SPACER, PUBX E/GATE HGE (GATE SI) |
K1 (36) |
2005-2005 |
AR |
| 017 |
15048359 |
SPACER, PUBX E/GATE HGE (GATE SI) |
K1 (36) |
2005-2006 |
AR |
| 018 |
|
REINFORCEMENT, E/GATE HGE (E/GATE SI) (PART OF 1) (*KIT1) |
|
2005-2006 |
|
| 019 |
15080226 |
HINGE, E/GATE (*KIT1) |
K159 (36) (Y91, Z75) |
2005-2006 |
01 |
| 019 |
15080227 |
HINGE, E/GATE (*KIT1) |
K159 (36) (Y91, Z75) |
2005-2006 |
01 |
| 020 |
11589407 |
БОЛТ, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT. (PUBX E/GATE HGE) (*KIT1)
|
2005-2006 |
06 |
|
| 021 |
88980509 |
CABLE, E/GATE (PART OF 24) (STAINLESS STEEL) (*KIT1) |
K159 (36) (Y91, Z75) |
2005-2005 |
01 |
| 021 |
88980510 |
CABLE, E/GATE (PART OF 24) (STAINLESS STEEL) (*KIT1) |
K159 (36) (Y91, Z75) |
2005-2005 |
01 |
| 022 |
16641546 |
БОЛТ, E/GATE LAT (PART OF 24) (M8X1.25X35) (HOLDS CABLE TO LATCH) (*KIT1) |
K1 (36) |
2005-2005 |
02 |
| 022 |
16641546 |
БОЛТ, E/GATE LAT (PART OF 24) (M8X1.25X35) (HOLDS CABLE TO LATCH) (*KIT1) |
K159 (36) (Y91, Z75) |
2005-2006 |
01 |
| 023 |
16641546 |
БОЛТ, E/GATE LAT (M8X1.25X35) (HOLDS CABLE TO LATCH) (*KIT1) |
K1 (36) |
2005-2005 |
02 |
| 023 |
16641546 |
БОЛТ, E/GATE LAT (M8X1.25X35) (HOLDS CABLE TO LATCH) (*KIT1) |
K159 (36) (Y91, Z75) |
2005-2006 |
01 |
| 024 |
15107685 |
LATCH, PUBX E/GATE (INCLS 21, 22, 25, 31) (*KIT1) |
K159 (36) (Y91, Z75) |
2005-2006 |
01 |
| 024 |
15107686 |
LATCH, PUBX E/GATE (INCLS 21, 22, 25, 31) (WITH CABLE) (*KIT1) |
K159 (36) (Y91, Z75) |
2005-2006 |
01 |
| 025 |
16640464 |
BUMPER, E/GATE (PART OF 24) (*KIT1) |
K159 (36) (Y91, Z75) |
2005-2005 |
02 |
| 026 |
15704030 |
RIVET, E/GATE LAT PIV (PART OF 1) (M5.0X28) (*KIT1) (16.460) |
K159 (36) (Y91, Z75) |
2005-2006 |
06 |
| 027 |
|
REINFORCEMENT, E/GATE LAT (PART OF 1) (*KIT1) |
|
2005-2006 |
|
| 028 |
11561504 |
БОЛТ, E/GATE HDL (*KIT1) (8.153) |
K159 (36) (Y91, Z75) |
2005-2006 |
03 |
| 029 |
11519572 |
SCREW, PAN, M6X1X72, 16 THD, 11.75 OD, 9.8, 6280M, TORX, MACH (PUBX E/GATE LAT HDL BZL) |
|
2005-2006 |
02 |
| 030 |
22611474 |
RIVET, PUBX E/GATE LINK (6.15 DIA, 32 L, 17 OD) (*KIT1) (13.090) |
K159 (36) (Y91, Z75) |
2005-2006 |
07 |
| 031 |
10009923 |
ГАЙКА, BOLT RETAINING ПРУЖИНА, M8X1.25, 25 O.D., ZOR (PART OF 24) (*KIT1) |
|
2005-2006 |
02 |
| K01 |
89025366 |
GATE, PUBX END (INCLS 1-4, 9-11, 18-28, 30, 31) (PAINT TO MATCH) |
K159 (36) (Y91, Z75) |
2005-2006 |
01 |
