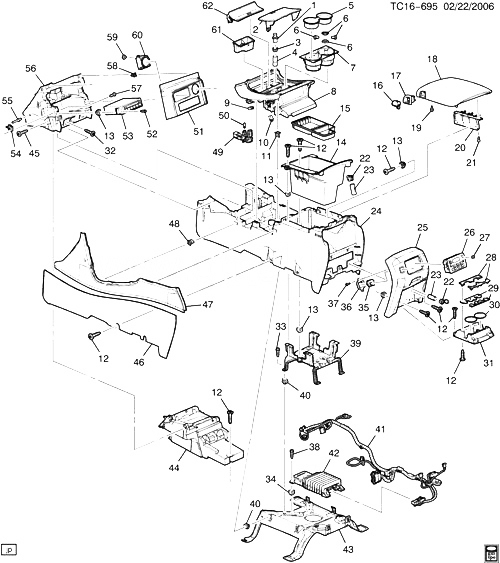

(TC16-695) - 2004-2006 CK(06) КОНСОЛЬ/ПОЛ (CADILLAC Z75, EXC PLATINUM EDITION ULT) CADILLAC - ESCALADE ESV (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 11516140 LIGHTER, CIG (PART OF 8) (BLACK) (W/LARGE, PLASTIC KNOB END 21.0MM) CK1, 2, 3 2003-2006 01
001 11516141 LIGHTER, CIG (PART OF 8) (BLACK) (W/SMALL, PLASTIC KNOB END 14.0MM) CK1, 2, 3 2003-2006 01
002 DOOR, F/FLR CNSL CUP HLDR (PART OF 8) 2004-2006
003 25749635 RETAINER, C/LTR RCPT (PART OF 8) (EBONY) (W/O CAP) CK1, 2, 3 2003-2006 01
004 25776667 RECEPTACLE, C/LTR (PART OF 8) (2 TERMINALS) CK1, 2, 3 2003-2006 01
005 89045514 LINER, F/FLR CNSL CUP HLDR (PART OF 8) CK1 (06-36) (D07, Y91, Z75) (EXC ULT) 2005-2006 01
006 15070566 RETAINER, F/FLR CNSL CUP HLDR (PART OF 8) CK1, 2, 3 (D07, D55) 2003-2006 06
007 19148870 HOLDER, F/FLR CNSL CUP (PART OF 8) (EBONY) CK1 (06-36) (D07, Y91, Z75) (EXC ULT) 2005-2006 01
008 15816826 BEZEL, F/FLR CNSL EXTN ACSRY LWR (INCLS 1-7, 9-11, 49, 50, 61, 62) (SHALE) CK1 (06-36) (D07, Y91, Z75, 15I) (EXC ULT) 2005-2006 01
008 15816827 BEZEL, F/FLR CNSL EXTN ACSRY LWR (INCLS 1-7, 9-11, 49, 50, 61, 62) (PEWTER) CK1 (06-36) (D07, Y91, Z75, 92I) 2005-2006 01
009 89040109 LATCH, F/FLR CNSL ПЕПЕЛЬНИЦА DR (PART OF 8) CK1 (06-36) (Z75) 2003-2006 01
010 89040109 LATCH, F/FLR CNSL CUP HLDR DR (PART OF 8) CK1 (06-36) (Z75) 2003-2006 01
011 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 8) 2003-2006 04
012 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (PART OF 24) 2003-2006 31
013 25536302 ГАЙКА, F/FLR CNSL EXTN (PART OF 24) (4.2 X 1.41) (TAPPING NUT) (3.430) CK1 (D07, U1S, Y91) 2003-2006 20
014 15178464 TRAY, F/FLR CNSL STOR (PEWTER) CK1 (06) (D07, UK6, U1S, Y91, 92I, Z75) 2003-2006 01
015 15178470 MAT, F/FLR CNSL DISC/TAPE STOR COMPT CK1 (06) (CJ2, D07, UK6, U1S, Y91, Z75) (EXC ULT) 2004-2006 01
016 BUTTON, КОНСОЛЬ LID RELEASE (PART OF 18) 2004-2006
017 BEZEL, CONSOL LID RELEASE (PART OF 18) 2004-2006
018 15178472 LID, F/TOP STOW COMPT (INCLS 16, 17, 19, 21) (SHALE) (DOES NOT INCL HINGE) CK1 (06) (CJ2, D07, UK6, U1S, Y91, Z75, 15I) (EXC ULT) 2004-2006 01
018 15178472 LID, F/TOP STOW COMPT (INCLS 16, 17, 19, 21) (SHALE) (DOES NOT INCL HINGE) K159 (06) (CJ2, D07, UK6, Y91, Z75, 15I, U1S) (EXC ULT) 2004-2006 01
018 15178473 LID, F/TOP STOW COMPT (INCLS 16, 17, 19, 21) (PEWTER) (DOES NOT INCL HINGE) CK1 (06) (CJ2, D07, UK6, U1S, Y91, Z75, 92I) 2003-2006 01
019 BUMPER, STOW COMP LID (PART OF 18) 2004-2006
020 88986576 HINGE, F/FLR CNSL COMPT DR CK1 (06) (CJ2, D07, UK6, U1S, Y91, Z75) 2005-2006 01
021 SCREW, HINGE) (PART OF 18) 2004-2006
023 25774623 RECEPTACLE, ACSRY PWR (ACSRY PWR RECEPTACLE ASSEM LABELED 4623) CK1, 2, 3 2003-2006 01
024 88987014 КОНСОЛЬ, F/FLR (INCLS 12, 13, 15, 32-48, 54-57) (SHALE) CK1 (06) (D07, UK6, U1S, Y91, Z75, 15I, CJ2) (EXC ULT) 2005-2006 01
024 88987015 КОНСОЛЬ, F/FLR (INCLS 12, 13, 15, 32-48, 54-57) (PEWTER) CK1 (06) (D07, UK6, U1S, Y91, Z75, 92I) 2003-2005 01
025 88987004 PANEL, F/FLR FRT CNSL RR TR (NEUTRAL) (INCLS DETENTS, HSGS, PANELS, BRKTS, NUTS BOLTS) K1 (06) (Y91, 52I) 2003-2006 01
025 88987005 PANEL, F/FLR FRT CNSL RR TR (SHALE) CK1 (06) (Y91, 15I) (EXC ULT) 2004-2006 01
025 88987006 PANEL, F/FLR FRT CNSL RR TR (PEWTER) CK1 (06) (Y91, 92I) 2003-2006 01
026 15850811 CONTROL, HTR A/C (W/AM/FM STEREO RDO) (FOR RR FLR КОНСОЛЬ) (INCLS 27) (LOCATED IN THE F/FLR COMPARTMENT) (9.273) (ACDelco #15-73594) CK1, 2 (06) (CJ2, D07, UK6) 2003-2006 01
026 15850811 CONTROL, HTR A/C (W/AM/FM STEREO RDO) (FOR RR FLR КОНСОЛЬ) (INCLS 27) (LOCATED IN THE F/FLR COMPARTMENT) (ACDelco #15-73594) CK1, 2 (06) (CJ2, D07, UK6) 2003-2006 01
026 15850811 CONTROL, HTR A/C (W/AM/FM STEREO RDO) (FOR RR FLR КОНСОЛЬ) (INCLS 27) (LOCATED IN THE F/FLR COMPARTMENT) (9.273) (ACDelco #15-73594) CK1, 2 (06) (CJ2, D07, UK6) 2003-2006 01
027 12205116 KNOB, RDO VOL CONT (PART OF 26) CK1, 2, 3 (D07, UK6) 2003-2006 01
028 RETAINER, F/FLR CNSL CUP HLDR CUP RET (PART OF 31) 2005-2006
029 RETAINER, F/FLR CNSL CUP HLDR CUP RET (PART OF 31) 2005-2006
030 15070349 MAT, F/FLR CNSL CUP HLDR (10.240) CK1, 2, 3 (D07) 2003-2006 02
031 15087882 HOLDER, F/FLR CUP (INCLS 28, 29) (NEUTRAL) (16.800) K1 (06) (D07, Y91, 52I) 2003-2006 01
031 15087883 HOLDER, F/FLR CUP (INCLS 28, 29) (SHALE) (16.800) CK1 (06-36) (D07, Y91, 15I) 2003-2006 01
031 15087884 HOLDER, F/FLR CUP (INCLS 28, 29) (PEWTER) (16.800) CK1 (06-36) (D07, Y91, 92I) 2003-2006 01
032 11514270 SCREW, HEX HD W/FL WA, M4.2X1.41X20, ALBO (PART OF 24) 2003-2006 02
033 БОЛТ, F/FLR CNSL BRKT (PART OF 24) 2004-2006
034 11589183 ГАЙКА, PUSH IN, W/SEAL, 4.2X1.41, 6.35-6.48 SQ HL, 9.5 SQ HD, 0.787-2.765 PNL THK, NYL (PART OF 24) 2003-2006 04
035 15083095 SWITCH, R/SEAT HTR (PART OF 24) CK1 (06) (CJ2, D07, UK6, U1S, Y91, Z75) (EXC ULT) 2004-2006 02
036 88987046 BRACKET, R/SEAT HTR SW (PART OF 24) CK1 (06) (CJ2, D07, UK6, U1S, Y91, Z75) (EXC ULT) 2003-2006 01
036 88987047 BRACKET, R/SEAT HTR SW (PART OF 24) CK1 (06) (CJ2, D07, UK6, U1S, Y91, Z75) (EXC ULT) 2003-2006 01
037 11516630 SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (PART OF 24) 2003-2006 02
038 11609459 SCREW, RND WA, M4.2X1.41X13, 7.2 THD, 11.35 OD, 6010M, GMW4205 (PART OF 24) 2003-2006 04
039 BRACKET, F/FLR CNSL (PART OF 24) 2004-2006
040 11570654 ГАЙКА, F/FLR CNSL (PART OF 24) (4.2 X 1.41) (FITS 8.75 SQ HOLE) (9.665) CK1 (06) (D07, UK6, D55) 2003-2006 04
041 15838045 HARNESS, F/FLR CNSL WRG (PART OF 24) CK1 (06) (CJ2, D07, UK6, U1S, Y91, Z75) (EXC ULT) 2004-2006 01
042 15114454 УСИЛИТЕЛЬ, RDO SPKR (PART OF 24) (REQUIRES DEALER REPROGRAMMING) (ACDelco #15114454) CK1 (D07, U1S, Y91) 2003-2006 01
043 BRACKET, F/FLR CNSL (PART OF 24) 2004-2006
044 88987315 SPEAKER, RDO F/FLR CNSL (PART OF 24) (SUBWOOFER) (ACDelco #88987315) CK1, 2, 3 (D07) 2003-2006 01
045 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (PART OF 24) 2003-2006 06
046 CARPET, F/FLR CNSL COMPT (PART OF 24) 2004-2006
047 15178478 PANEL, F/FLR CNSL SI TR (PART OF 24) (SHALE) CK1 (06) (Y91, 15I) 2003-2006 01
047 15178480 PANEL, F/FLR CNSL SI TR (PART OF 24) (PEWTER) CK1 (06) (CJ2, D07, UK6, U1S, Y91, Z75, 92I) 2003-2006 01
047 15178482 PANEL, F/FLR CNSL SI TR (PART OF 24) (SHALE) CK1 (06) (Y91, 15I) 2003-2006 01
047 15178484 PANEL, F/FLR CNSL SI TR (PART OF 24) (PEWTER) CK1 (06) (CJ2, D07, UK6, U1S, Y91, Z75, 92I) 2003-2006 01
048 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 24) 2003-2006 10
049 HARNESS, F/FLR CNSL WRG (PART OF 8) 2004-2006
050 09433184 BULB (PART OF 8) (ACDelco #L74) (TRADE #74, 14V/1.4W) 2003-2006 01
051 89046350 BEZEL, F/FLR CNSL EXTN ACSRY UPR (INCLS 58, 59) (SHALE) CK1 (06-36) (D07, Y91, Z75, 15I) (EXC ULT) 2005-2006 01
051 89046351 BEZEL, F/FLR CNSL EXTN ACSRY UPR (INCLS 58, 59) (PEWTER) CK1 (06-36) (D07, Y91, Z75, 92I) 2005-2006 01
052 11589012 БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (PART OF 24) (9.665) 2003-2006 02
053 PLAYER, AUDIO DISC (FOR SERVICE SEE GM PARTS PROCESS/POLICY BULLETIN FOR THE LATEST SERVICE INFORMATION) 2004-2006
054 15240415 MICROPHONE, RDO VOL COMP INTR NOISE (PART OF 24) CK1 (06) (D07, U1S, Y91) 2003-2006 01
055 21095050 RIVET, F/FLR CNSL (PART OF 24) (4.8SHANK, 25.4 LENGTH) (ALUM) (2.342) CK1 (06-36) (D07, Y91) 2003-2006 08
056 RETAINER, F/FLR CNSL (PART OF 24) 2004-2006
057 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (PART OF 24) 2003-2006 02
058 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 51) 2003-2006 04
059 11509231 SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (PART OF 51) 2003-2006 03
060 15087592 CLOCK, CK1 (06-36) (D07, Y91, Z75) 2003-2005 01
061 ПЕПЕЛЬНИЦА, F/FLR CNSL (PART OF 8) 2004-2006
062 DOOR, F/FLR CNSL ПЕПЕЛЬНИЦА (PART OF 8) 2004-2006
