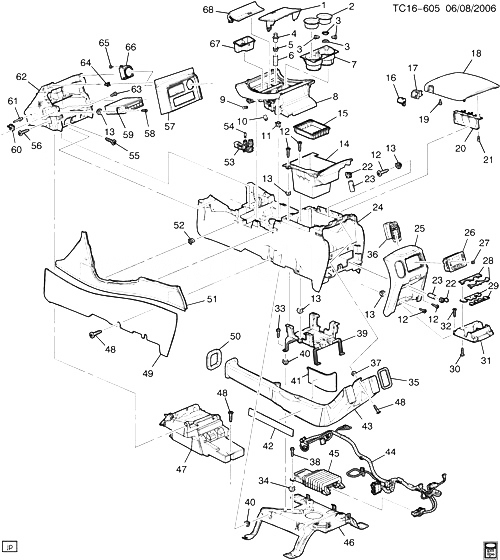

(TC16-605) - 2005-2006 K(36) КОНСОЛЬ/ПОЛ (CADILLAC Z75) CADILLAC - ESCALADE ESV (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 DOOR, F/FLR CNSL CUP HLDR (PART OF 8) 2005-2006
002 89045514 LINER, F/FLR CNSL CUP HLDR (PART OF 8) K1 (06-36) (D07, Y91, Z75) (EXC ULT) 2005-2006 01
003 15070566 RETAINER, F/FLR CNSL CUP HLDR (PART OF 8) K1, 2, 3 (D07, D55) 2005-2006 06
004 11516140 LIGHTER, CIG (PART OF 8) (BLACK) (W/LARGE, PLASTIC KNOB END 21.0MM) K1, 2, 3 2005-2006 01
004 11516141 LIGHTER, CIG (PART OF 8) (BLACK) (W/SMALL, PLASTIC KNOB END 14.0MM) K1, 2, 3 2005-2006 01
005 25749635 RETAINER, C/LTR RCPT (PART OF 8) (EBONY) (W/O CAP) K1, 2, 3 2005-2006 01
006 25776667 RECEPTACLE, C/LTR (PART OF 8) (2 TERMINALS) K1, 2, 3 2005-2006 01
007 19148870 HOLDER, F/FLR CNSL CUP (PART OF 8) (EBONY) K1 (06-36) (D07, Y91, Z75) (EXC ULT) 2005-2006 01
008 15816826 BEZEL, F/FLR CNSL EXTN ACSRY LWR (INCLS 1-7, 9-11, 53, 54, 67, 68) (SHALE) K1 (06-36) (D07, Y91, Z75, 15I) (EXC ULT) 2005-2006 01
008 15816827 BEZEL, F/FLR CNSL EXTN ACSRY LWR (INCLS 1-7, 9-11, 53, 54, 67, 68) (PEWTER) K1 (06-36) (D07, Y91, Z75, 92I) 2005-2006 01
009 89040109 LATCH, F/FLR CNSL ПЕПЕЛЬНИЦА DR (PART OF 8) K1 (06-36) (Z75) 2005-2006 01
010 89040109 LATCH, F/FLR CNSL CUP HLDR DR (PART OF 8) K1 (06-36) (Z75) 2005-2006 01
011 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 8) 2005-2006 04
012 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (PART OF 24) 2005-2006 22
013 25536302 ГАЙКА, F/FLR CNSL EXTN (PART OF 24) (4.2 X 1.41) (TAPPING NUT) (3.430) K1 (D07, U1S, Y91) 2005-2006 20
014 15178466 TRAY, F/FLR CNSL STOR (SHALE) K159 (36) (D07, Z75, 15I) 2005-2006 01
014 15178468 TRAY, F/FLR CNSL STOR (PEWTER) K159 (36) (D07, U1S, Y91, Z75, 92I) 2005-2006 01
015 15168438 MAT, F/FLR CNSL DISC/TAPE STOR COMPT (PART OF 24) K159 (36) (D07, U1S, Y91, Z75) 2005-2006 01
016 BUTTON, КОНСОЛЬ LID RELEASE (PART OF 18) 2005-2006
017 BEZEL, CONSOL LID RELEASE (PART OF 18) 2005-2006
018 15178472 LID, F/TOP STOW COMPT (INCLS 16, 17, 19-21) (SHALE) (DOES NOT INCL HINGE) K159 (36) (D07, U1S, Y91, Z75, 15I) 2005-2006 01
018 15178473 LID, F/TOP STOW COMPT (INCLS 16, 17, 19-21) (PEWTER) (DOES NOT INCL HINGE) K159 (36) (D07, U1S, Y91, Z75, 92I) 2005-2006 01
019 BUMPER, STOW COMP LID (PART OF 18) 2005-2006
020 HINGE, F/FLR CNSL COMPT DR (PART OF 18) 2005-2006
021 SCREW, HINGE) (PART OF 18) 2005-2006
022 15092039 RETAINER, C/LTR HSG (F/FLR COMP) (EBONY) (INCLS COVER) K159 (36) (D07, U1S, Y91, Z75) 2005-2006 02
023 25774623 RECEPTACLE, ACSRY PWR (ACSRY PWR RECEPTACLE ASSEM LABELED 4623) K1, 2, 3 2005-2006 01
024 88987017 КОНСОЛЬ, F/FLR (INCLS 12, 13, 15, 33-35, 37-55, 56, 58, 60-63) (SHALE) K159 (36) (D07, U1S, Y91, Z75, 15I) 2005-2005 01
024 88987018 КОНСОЛЬ, F/FLR (INCLS 12, 13, 15, 33-35, 37-55, 56, 58, 60-63) (PEWTER) K159 (36) (D07, U1S, Y91, Z75, 92I) 2005-2005 01
025 88987001 PANEL, F/FLR FRT CNSL RR TR (SHALE) K159 (36) (D07, U1S, Y91, Z75, 15I) 2005-2006 01
025 88987002 PANEL, F/FLR FRT CNSL RR TR (PEWTER) K159 (36) (D07, U1S, Y91, 92I) 2005-2006 01
026 15850810 CONTROL, AM/FM STEREO T/PLYR CD PLYR RDO (INCLS 27) (ACDelco #15850810) K159 (36) (D07, U1S, Y91, Z75) 2005-2006 01
027 12205116 KNOB, RDO VOL CONT (PART OF 26) K1, 2, 3 (D07, UK6) 2005-2006 01
028 RETAINER, F/FLR CNSL CUP HLDR CUP RET (PART OF 31) 2005-2006
029 RETAINER, F/FLR CNSL CUP HLDR CUP RET (PART OF 31) 2005-2006
030 БОЛТ, F/FLR CNSL COMPT (PART OF 31) 2005-2006
031 15087883 HOLDER, F/FLR CUP (INCLS 28, 29, 30) (SHALE) (16.800) K1 (06-36) (D07, Y91, 15I) 2005-2006 01
031 15087884 HOLDER, F/FLR CUP (INCLS 28, 29, 30) (PEWTER) (16.800) K1 (06-36) (D07, Y91, 92I) 2005-2006 01
032 11609459 SCREW, RND WA, M4.2X1.41X13, 7.2 THD, 11.35 OD, 6010M, GMW4205 (F/FLR COMPT) 2005-2006 04
033 БОЛТ, F/FLR CNSL BRKT (PART OF 24) 2005-2006
034 11589183 ГАЙКА, PUSH IN, W/SEAL, 4.2X1.41, 6.35-6.48 SQ HL, 9.5 SQ HD, 0.787-2.765 PNL THK, NYL (PART OF 24) 2005-2006 04
035 SEAL, AIR DISTR DUCT (PART OF 24) 2005-2006
036 ШЛАНГИ, F/FLR CNSL ACSRY (PART OF 25) 2005-2006
037 11516993 ГАЙКА, M4.2X1.41 (PART OF 24) 2005-2006 01
038 11516630 SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (PART OF 24) 2005-2006 02
039 BRACKET, F/FLR CNSL (PART OF 24) 2005-2006
040 11570654 ГАЙКА, F/FLR CNSL (PART OF 24) (4.2 X 1.41) (FITS 8.75 SQ HOLE) (9.665) CK1, 2 (36) (D07) 2005-2006 04
041 15070568 INSULATOR, F/FLR CNSL RR AIR DUCT (PART OF 24) K1, 2, 3 2005-2006 01
042 15070569 INSULATOR, F/FLR CNSL RR AIR DUCT (PART OF 24) K1, 2, 3 2005-2006 01
043 15178525 DUCT, AUX A/C AIR OTLT (PART OF 24) K1, 2, 3 (36-43-53) (D07) 2005-2006 01
044 15838045 HARNESS, F/FLR CNSL WRG (PART OF 24) K159 (36) (D07, U1S, Y91, Z75) 2005-2006 01
045 15114454 УСИЛИТЕЛЬ, RDO SPKR (PART OF 24) (REQUIRES DEALER REPROGRAMMING) (ACDelco #15114454) K1 (D07, U1S, Y91) 2005-2006 01
046 BRACKET, F/FLR CNSL (PART OF 24) 2005-2006
047 88987315 SPEAKER, RDO F/FLR CNSL (PART OF 24) (SUBWOOFER) (ACDelco #88987315) K1, 2, 3 (D07) 2005-2006 01
048 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (PART OF 24) 2005-2006 11
049 CARPET, F/FLR CNSL COMPT (PART OF 24) 2005-2006
050 SEAL (PART OF 24) 2005-2006
051 15178478 PANEL, F/FLR CNSL SI TR (PART OF 24) (SHALE) K159 (36) (Y91, 15I) 2005-2006 01
051 15178480 PANEL, F/FLR CNSL SI TR (PART OF 24) (PEWTER) K159 (36) (D07, U1S, Y91, Z75, 92I) 2005-2006 01
051 15178482 PANEL, F/FLR CNSL SI TR (PART OF 24) (SHALE) K159 (36) (Y91, 15I) 2005-2006 01
051 15178484 PANEL, F/FLR CNSL SI TR (PART OF 24) (PEWTER) K159 (36) (D07, U1S, Y91, Z75, 92I) 2005-2006 01
052 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 24) 2005-2006 10
053 HARNESS, F/FLR CNSL WRG (PART OF 8) 2005-2006
054 09433184 BULB (PART OF 8) (ACDelco #L74) (TRADE #74, 14V/1.4W) 2005-2006 01
055 11514270 SCREW, HEX HD W/FL WA, M4.2X1.41X20, ALBO (PART OF 24) 2005-2006 02
056 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (PART OF 24) 2005-2006 06
057 89046350 BEZEL, F/FLR CNSL EXTN ACSRY UPR (INCLS 64, 65) (SHALE) K1 (06-36) (D07, Y91, Z75, 15I) (EXC ULT) 2005-2006 01
057 89046351 BEZEL, F/FLR CNSL EXTN ACSRY UPR (INCLS 64, 65) (PEWTER) K1 (06-36) (D07, Y91, Z75, 92I) 2005-2006 01
058 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (PART OF 24) 2005-2006 02
059 PLAYER, AUDIO DISC (FOR SERVICE SEE GM PARTS PROCESS/POLICY BULLETIN FOR THE LATEST SERVICE INFORMATION) 2005-2006
060 15240415 MICROPHONE, RDO VOL COMP INTR NOISE (PART OF 24) K159 (36) (D07, U1S, Y91) 2005-2006 01
061 21095050 RIVET, F/FLR CNSL (PART OF 24) (4.8SHANK, 25.4 LENGTH) (ALUM) (2.342) K1 (06-36) (D07, Y91) 2005-2006 08
062 RETAINER, F/FLR CNSL (PART OF 24) 2005-2006
063 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (PART OF 24) 2005-2006 02
064 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 57) 2005-2006 AR
065 11509231 SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (PART OF 57) 2005-2006 03
066 15087592 CLOCK, K1 (06-36) (D07, Y91, Z75) 2005-2005 01
067 ПЕПЕЛЬНИЦА, F/FLR CNSL (PART OF 8) 2005-2006
068 DOOR, F/FLR CNSL ПЕПЕЛЬНИЦА (PART OF 8) 2005-2006
