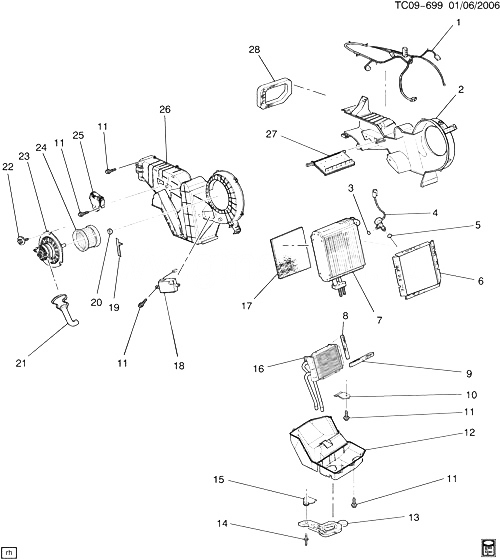

(TC09-699) - 2003-2006 CK159,2(06) AUXILIARY A/C EVAPORATOR BLOWER HEATER ASM (CJ3,C36,C69) CADILLAC - ESCALADE ESV (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15056257 HARNESS, AUX HTR A/C WRG (ACDelco #15-75193) CK159, 2 (06) (CJ3, C36, C69) 2003-2006 01
002 52478195 CASE, AUX A/C EVPR BLO (OUTER) CK159, 2 (06) 2003-2006 01
003 03094214 O-RING, ID .426X.070 THK, MATERIAL-NEOPRENE (PART OF 7) (ACDelco #15-3614) 2003-2006 01
004 52401710 VALVE KIT, AUX A/C EVPR THERMAL EXPN (ACDelco #15-50106) CK159, 2 (06) 2003-2006 01
005 52450548 SEAL O-RING (5/PKG) (.35 ID X .072 THICK (PART OF 7) (8.927) (ACDelco #15-30570) 2003-2006 01
006 52480252 SEAL, AUX A/C EVPR CK159, 2 (06) 2003-2006 01
007 52401671 EVAPORATOR, AUX A/C (INCLS 3, 5) (ACDelco #15-62086) CK159, 2 (06) 2003-2006 01
008 52480283 SEAL, AUX HTR CORE (SIDE) CK159, 2 (06) 2003-2006 02
009 SEAL, AUX HTR CORE (HEADER) (PART OF 16) 2004-2006
010 52482830 CLAMP, HTR CORE TUBE CK159, 2 (06) 2003-2006 01
011 11609489 БОЛТ, HEX W/ WASHER, 4.2X1.41X25, 14.5 THD17 OD, GM6010M STL, GMW4205 (AUX A/C EVPR BLO MDL) 2003-2006 05
012 89018717 COVER, HTR CORE (AUX CVR) CK159, 2 (06) 2003-2006 01
013 52482845 SEAL, A/C EVPR TUBE (DRN) (9.211) CK159, 2 (06) 2003-2006 01
014 89018613 STUD, HTR A/C EVPR BLO MDL (STUD-FLANGE, M6X1X25) CK159, 2 (06) 2003-2006 02
015 52474448 CLAMP, HTR CORE CK159, 2 (06) 2003-2005 01
016 52478848 CORE, AUX HTR (INCLS 9) (ACDelco #15-62087) CK159, 2 (06) 2003-2006 01
017 52480251 ФИЛЬТР, A/C EVPR AIR (AUX) (ACDelco #15-8799) CK159, 2 (06) 2003-2006 01
018 89018536 RESISTOR, AUX BLO MOT (ACDelco #15-80564) CK159, 2 (06) (CJ3, C36, C69) 2003-2006 01
019 LABEL, BAR CODE 2003-2006
020 SPEED NUT (PART OF 23) 2003-2006
021 52468304 TUBE, BLO MOT CLG (9.218) CK159, 2 (06) 2003-2006 01
021 52468304 TUBE, BLO MOT CLG CK159, 2 (06) 2003-2006 01
022 10272737 БОЛТ, HWH, M4.2X2.5X20, 12.5 O.D., AB PT, 6010M, BZ (AUX HTR BLO MOT) 2003-2006 03
023 52495789 MOTOR, BLO (W/IMPLR) (AUX) (INCLUDES 20, 24) (ACDelco #15-8792) CK159, 259 (06) (CJ2, CJ3, C69) 2003-2006 01
023 52495789 MOTOR, BLO (W/IMPLR) (AUX) (INCLUDES 20, 24) (8.855) (ACDelco #15-8792) CK159, 259 (06) (CJ2, CJ3, C69) 2003-2006 01
024 FAN (PART OF 23) 2003-2006
025 89018356 ACTUATOR, TEMP VLV (AUX) (MATES W/CONN 12102632) (ACDelco #15-71845) CK1, 2 (06) (CJ3, C36, C69) 2003-2006 01
026 52478191 CASE, AUX A/C EVPR BLO (INNER) CK159, 2 (06) 2003-2006 01
027 52495923 VALVE, TEMP (AUX) (ACDelco #15-5717) CK159, 2 (06) 2003-2006 01
028 52484090 SEAL, AUX HTR A/C MDL OTLT DUCT CK159, 2 (06) 2003-2006 01
