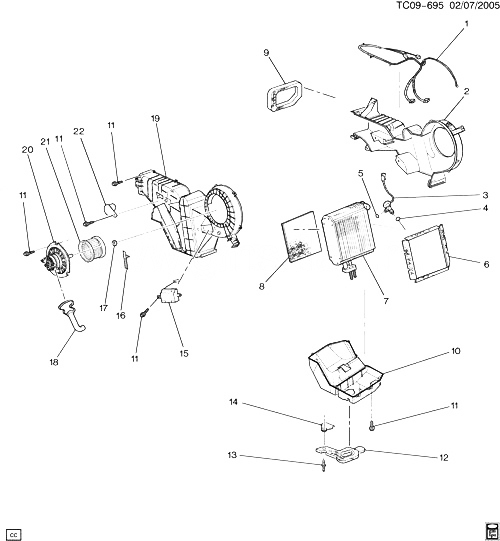

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15056256 |
HARNESS, AUX HTR A/C WRG (ACDelco #15-75192) |
CK159, 2 (06) (CJ3, C69) (EXC C36) |
2003-2006 |
01 |
| 002 |
52478195 |
CASE, AUX A/C EVPR BLO (OUTER) |
CK159, 2 (06) |
2003-2006 |
01 |
| 003 |
52401710 |
VALVE KIT, AUX A/C EVPR THERMAL EXPN (INCLS 4, 5) (ACDelco #15-50106) |
CK159, 2 (06) |
2003-2006 |
01 |
| 004 |
|
SEAL, A/C EVPR FTG (O RING) (O-RING) (PART OF 3) |
|
2003-2006 |
|
| 005 |
|
SEAL, A/C EVPR FTG (O RING) (O-RING) (PART OF 3) |
|
2003-2006 |
|
| 006 |
52480252 |
SEAL, AUX A/C EVPR |
CK159, 2 (06) |
2003-2006 |
01 |
| 007 |
52401671 |
EVAPORATOR, AUX A/C (ACDelco #15-62086) |
CK159, 2 (06) |
2003-2006 |
01 |
| 008 |
52480251 |
ФИЛЬТР, A/C EVPR AIR (AUX) (ACDelco #15-8799)
| CK159, 2 (06) |
2003-2006 |
01 |
|
| 009 |
52484090 |
SEAL, AUX HTR A/C MDL OTLT DUCT |
CK159, 2 (06) |
2003-2006 |
01 |
| 010 |
89018717 |
COVER, HTR CORE (AUX CVR) |
CK159, 2 (06) |
2003-2006 |
01 |
| 011 |
11609829 |
БОЛТ, A/C EVPR TUBE CLIP (4.2X2.25X16) (9.786) |
CK159, 2 (06) (EXC C36) |
2003-2006 |
28 |
| 012 |
52482845 |
SEAL, A/C EVPR TUBE (DRN) (9.211) |
CK159, 2 (06) |
2003-2006 |
01 |
| 013 |
89018613 |
STUD, HTR A/C EVPR BLO MDL (STUD-FLANGE, M6X1X25) |
CK159, 2 (06) |
2003-2006 |
02 |
| 014 |
52482830 |
CLAMP, HTR CORE TUBE |
CK159, 2 (06) |
2003-2006 |
01 |
| 015 |
89018536 |
RESISTOR, AUX BLO MOT (ACDelco #15-80564) |
CK159, 2 (06) (CJ3, C69) (EXC C36) |
2003-2006 |
01 |
| 016 |
|
LABEL, HTR A/C EVPR BLO MDL IDENT (PART OF 19) |
|
2003-2006 |
|
| 017 |
|
ГАЙКА, AUX A/C EVPR BLO CASE (PART OF 20) |
|
2003-2006 |
|
| 018 |
52468304 |
TUBE, BLO MOT CLG (9.218) |
CK159, 2 (06) |
2003-2006 |
01 |
| 018 |
52468304 |
TUBE, BLO MOT CLG |
CK159, 2 (06) |
2003-2006 |
01 |
| 019 |
52478191 |
CASE, AUX A/C EVPR BLO (INNER) (INCLS 16) |
CK159, 2 (06) |
2003-2006 |
01 |
| 020 |
52495789 |
MOTOR, BLO (W/IMPLR) (AUX) (INCLS 17, 21) (ACDelco #15-8792) |
CK159, 259 (06) (CJ2, CJ3, C69) |
2003-2006 |
01 |
| 020 |
52495789 |
MOTOR, BLO (W/IMPLR) (AUX) (INCLS 17, 21) (8.855) (ACDelco #15-8792) |
CK159, 259 (06) (CJ2, CJ3, C69) |
2003-2006 |
01 |
| 021 |
|
FAN, BLO MOT (PART OF 20) |
|
2003-2006 |
|
| 022 |
52481283 |
COVER, AUX HTR (TEMP VAL HOLE) |
CK159, 2 (06) |
2003-2006 |
01 |
