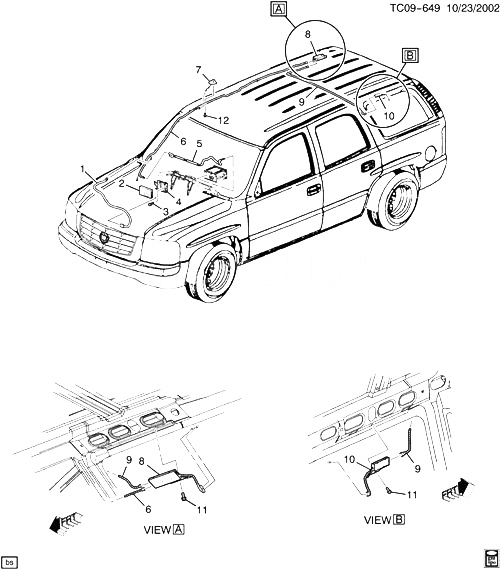

(TC09-649) - 2003-2006 CK1(06) АНТЕННА/АУДИОСИСТЕМА (CADILLAC Z75, U2K) CADILLAC - ESCALADE ESV (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15294584 CABLE, DIGITAL RDO АНТЕННА (RCVR TO INLINE CONN) (ACDelco #15294584) CK1, 2, 3 (U2K) 2004-2006 01
002 RECEIVER, DIGITAL RDO (FOR SERVICE SEE GM PARTS PROCESS/POLICY BULLETIN FOR THE LATEST SERVICE INFORMATION) 2003-2006
003 11589012 БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (DIGITAL RDO RCVR BRKT) (9.665) 2003-2006 02
004 15189091 BRACKET, DIGITAL RDO RCVR CK1, 2, 3 (U2K) 2003-2006 01
005 15094673 CABLE, RDO ANT CBL EXTN (ACDelco #15094673) CK1, 2, 3 2003-2006 01
006 12239296 CABLE, RDO ANT (PART OF 8) (TO RH АНТЕННА CONN ON GLASS) (ACDelco #12239296) CK157 (06) (U2K, U84) 2004-2005 01
006 12239297 CABLE, RDO ANT (PART OF 8) (ACDelco #12239297) K159 (06) (U2K, U84, Z75) 2004-2005 01
006 15045129 CABLE, RDO ANT (PART OF 8) (TO LH АНТЕННА CONN ON GLASS) (ACDelco #15045129) CK157 (06) (U84, U2K) 2004-2005 01
006 15045129 CABLE, RDO ANT (PART OF 8) (TO LH АНТЕННА CONN ON GLASS) (ACDelco #15045129) K159 (06) (U84, Z75) 2004-2005 01
007 15205583 АНТЕННА, DIGITAL RDO (INCLS 12) (35MM HIGH LOW PROFILE АНТЕННА) (ACDelco #15205583) CK1, 2, 3 (U2K) 2004-2005 01
008 15124514 MODULE, RDO ANT (AM-FM DIVERSITY) (INCLS 6, 9, 10) (ACDelco #15124514) K159 (06) (U2K, U84, Z75) 2004-2005 01
009 12239296 CABLE, RDO ANT (PART OF 8) (TO RH АНТЕННА CONN ON GLASS) (ACDelco #12239296) CK157 (06) (U2K, U84) 2004-2005 01
009 12239297 CABLE, RDO ANT (PART OF 8) (ACDelco #12239297) K159 (06) (U2K, U84, Z75) 2004-2006 01
009 15045129 CABLE, RDO ANT (PART OF 8) (TO LH АНТЕННА CONN ON GLASS) (ACDelco #15045129) CK157 (06) (U84, U2K) 2004-2005 01
009 15045129 CABLE, RDO ANT (PART OF 8) (TO LH АНТЕННА CONN ON GLASS) (ACDelco #15045129) K159 (06) (U84, Z75) 2004-2006 01
010 MODULE, RDO ANT (PART OF 8) 2003-2006
011 11588337 БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (RDO ANT MDL) 2003-2006 02
012 БОЛТ, RDO ANT (PART OF 7) 2003-2006
