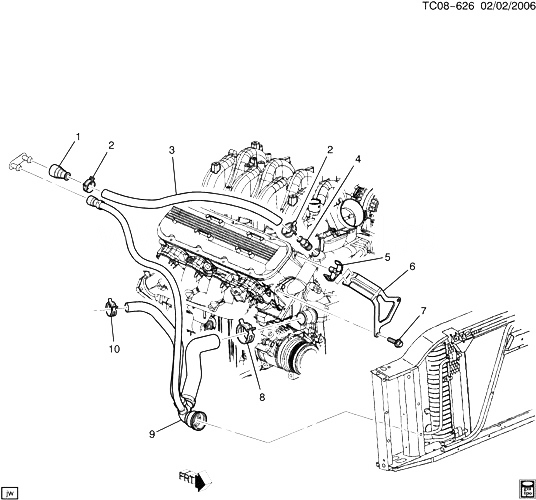

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
CONNECTOR, HTR INL HOSE (PART OF 3) |
|
2004-2006 |
|
| 002 |
11517133 |
CLAMP, ПРУЖИНА, 22-26MM, 24 NOM., BLK (PART OF 3)
|
2003-2007 |
02 |
|
| 003 |
15064188 |
HOSE, HTR INL (INCLSCONNECTOR, CLAMPS, ADHESIVE) (INCLS 1, 2) (461X363X403) (CODE 418, WLB) |
CK2 (06) (L18, C36) |
2003-2006 |
01 |
| 003 |
15064189 |
HOSE, HTR INL (INCLS 1, 2) (782X113X50) |
CK2 (03-36-43-53) (L18) |
2003-2006 |
01 |
| 003 |
15064189 |
HOSE, HTR INL (INCLS 1, 2) (782X113X50) |
CK2 (06) (L18) (EXC C36) |
2003-2006 |
01 |
| 004 |
|
PIPE, HTR INL (СМ. ГРУППУ 00.000 ДВИГАТЕЛЬ В СБОРЕ-8.1L V8/ЧАСТЬ 3 ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2003-2007 |
|
| 005 |
15050765 |
CLIP, HTR INL OTLT HOSE (73.0MM WIDE) |
CK2, 3 (L18) |
2003-2007 |
01 |
| 006 |
15012500 |
BRACKET, HTR INL OTLT HOSE |
CK2, 3 (L18) |
2004-2007 |
01 |
| 007 |
11515764 |
БОЛТ, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (ENG WRG HARN BRKT) |
|
2003-2007 |
02 |
| 008 |
|
CLAMP, RAD OTLT HOSE RAD (PART OF 9) |
|
2003-2007 |
|
| 009 |
15792830 |
HOSE, RAD OTLT (INCLS 8, 10) |
CK259 (06) (L18, C36) |
2003-2006 |
01 |
| 009 |
15792831 |
HOSE, RAD OTLT (INCLS 8, 10) |
CK2, 3 (L18) (EXC C36) |
2003-2006 |
01 |
| 009 |
15792831 |
HOSE, RAD OTLT (PHY IDENT URS) (INCLS 8, 10) |
CK2, 3 (L18) |
2005-2007 |
01 |
| 010 |
11562101 |
CLAMP, ПРУЖИНА BAND, 35MM NOM (PART OF 9) |
|
2003-2007 |
01 |
