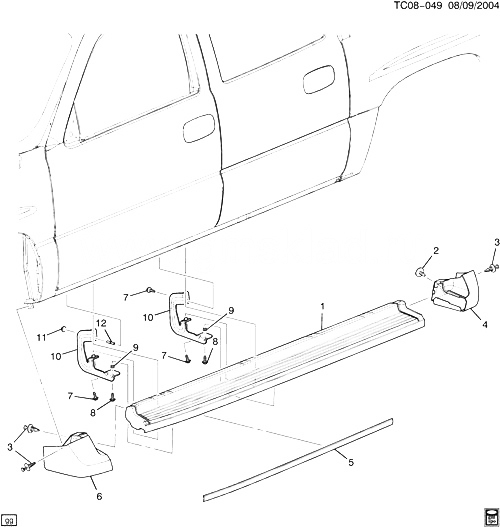

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
89045609 |
STEP, ASST (INCLS 5) (INCLS INSERT, CHROME) |
K159 (06-36) (BVF, Z75) |
2005-2006 |
01 |
| 001 |
89045610 |
STEP, ASST (INCLS 5) (INCLS INSERT, CHROME) |
K159 (06-36) (BVF, Z75) |
2005-2006 |
01 |
| 002 |
15111579 |
RETAINER, ASST STEP FRT EXTN (PUSH IN) (PEWTER) (SHORT PUSH PIN) (16.742)
| CK159 (06-36) (BVF, Z75) |
2005-2006 |
04 |
|
| 003 |
10134407 |
RETAINER, ASST STEP FRT EXTN (PUSH IN) (EBONY) (17.8 X 6.3 X 20.4MM) (NYLON) (ROUND PUSH-IN INCLS PUSH BUTTON LOCK) (1.272)
| CK159 (06-36) (BVF, Z75) |
2005-2006 |
06 |
|
| 004 |
89046108 |
EXTENSION, ASST STEP RR (PRIMED) (PAINT TO MATCH) |
K159 (06-36) (BVF, Z75) |
2005-2006 |
01 |
| 004 |
89046109 |
EXTENSION, ASST STEP RR (PRIMED) (PAINT TO MATCH) |
K159 (06-36) (BVF, Z75) |
2005-2006 |
01 |
| 005 |
|
INSERT, ASST STEP (PART OF 1) |
|
2005-2006 |
|
| 006 |
89044568 |
EXTENSION, ASST STEP FRT (PAINT TO MATCH) |
K159 (06-36) (BVF, Z75) |
2005-2006 |
01 |
| 006 |
89044569 |
EXTENSION, ASST STEP FRT |
K159 (06-36) (BVF, Z75) |
2005-2006 |
01 |
| 007 |
11609733 |
БОЛТ, HEX W/CON WA, M8X1.25X30, 20 THD, 24 OD, 10.9, GMW4205, MAT POINT (ASST STEP)
|
2005-2006 |
12 |
|
| 008 |
11609997 |
БОЛТ, ASST STEP
| K1, 2 (06-36) |
2005-2006 |
08 |
|
| 009 |
88961653 |
ГАЙКА, ASST STEP BRKT (INSERT) (M12X1.5X11.69, M6X1X11.69, 360 BRASS) |
K159 (06-36) (BVF, Z75) |
2005-2006 |
08 |
| 010 |
15203597 |
BRACKET, ASST STEP |
K159 (06-36) (BVF, Z75) |
2005-2006 |
08 |
| 011 |
11514519 |
ГАЙКА, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (ASST STEP)
|
2005-2006 |
04 |
|
| 012 |
03540325 |
STUD, ASST STEP (9.173) |
CK1 (36) (ARL, MSL) |
2005-2006 |
04 |
| 012 |
03540325 |
STUD, ASST STEP (9.173) |
CK1, 2 (06) (ARL, MSL) |
2005-2006 |
04 |
