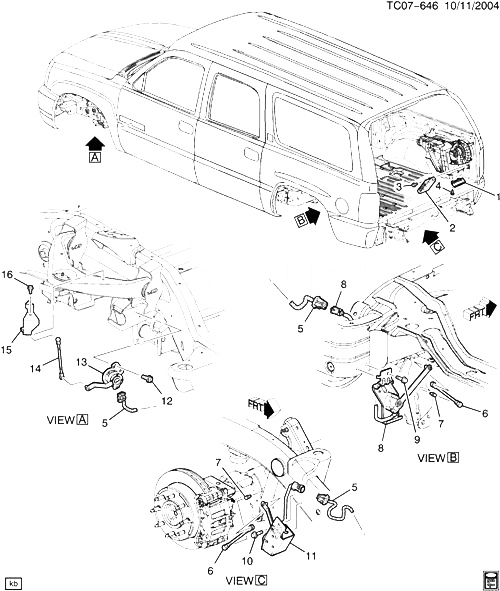

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15038409 |
BRACKET, ELEK SUSP CONT MDL |
CK159, 259 (06) (Z55) |
2000-2006 |
01 |
| 002 |
15189546 |
MODULE, ELEK SUSP CONT
| K1, 2 (06-36) (Z55) |
2005-2006 |
01 |
|
| 003 |
11589015 |
БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (ELEK SUSP MDL)
|
2000-2006 |
01 |
|
| 004 |
11609461 |
БОЛТ, HX W/FL WA, M4.2X1.41X16, 9 THD, 12.5 OD, 6010M STL, GMW4205, SELFTA (ELEK SUSP MDL BRKT)
|
2000-2006 |
02 |
|
| 005 |
|
HARNESS, CHAS WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/CHASSIS ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2000-2006 |
|
| 006 |
22189724 |
LINK, ELEK SUSP RR POSN SEN (PART OF 8, 11) |
CK259 (06) (Z55) |
2000-2006 |
02 |
| 007 |
11588443 |
STUD, ELEK SUSP RR POSN SEN LINK BALL |
CK2 (06) (Z55) |
2003-2006 |
02 |
| 008 |
15128650 |
SENSOR, ELEK SUSP RR POSN (INCLS 6) |
CK259 (06) (Z55) |
2005-2006 |
01 |
| 008 |
15128651 |
SENSOR, ELEK SUSP RR POSN (INCLS 6) |
CK259 (06) (Z55) |
2005-2006 |
01 |
| 009 |
11515755 |
БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (ELEK SUSP RR POSN SEN BRKT) (T/W 12345493 REPLCS 25534835)
|
2000-2006 |
02 |
|
| 010 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (ELEK SUSP RR POSN SEN BRKT) |
|
2000-2006 |
02 |
| 011 |
15128650 |
SENSOR, ELEK SUSP RR POSN (INCLS 6) |
CK259 (06) (Z55) |
2005-2006 |
01 |
| 011 |
15128651 |
SENSOR, ELEK SUSP RR POSN (INCLS 6) |
CK259 (06) (Z55) |
2005-2006 |
01 |
| 012 |
11517517 |
БОЛТ, HFH, M6X1X16, 13.5 THD, 14.2 OD, 9.8, SN-ZN, MACH, HDR-PT (ELEK SUSP FRT POSN SEN BRKT) |
|
2000-2006 |
02 |
| 013 |
15267455 |
SENSOR, ELEK SUSP FRT POSN (INCLS 14, 15) (INCLS BRACKET) |
CK259 (06) (Z55) |
2005-2006 |
01 |
| 013 |
15267456 |
SENSOR, ELEK SUSP FRT POSN (INCLS 14, 15) (INCLS BRACKET) |
CK259 (06) (Z55) |
2005-2006 |
01 |
| 014 |
22189725 |
LINK, ELEK SUSP FRT POSN SEN (PART OF 13) |
CK259 (06) (Z55) |
2001-2006 |
02 |
| 015 |
22189900 |
BRACKET, ELEK SUSP FRT POSN SEN (PART OF 13) (ELEK SUSP FRT POSN) |
CK259 (06) (Z55) |
2001-2006 |
01 |
| 015 |
22189901 |
BRACKET, ELEK SUSP FRT POSN SEN (PART OF 13) (ELEK SUSP FRT POSN) |
CK259 (06) (Z55) |
2001-2006 |
01 |
| 015 |
25385385 |
BRACKET, ELEK SUSP FRT POSN SEN (PART OF 13) |
CK1, 2 (Z55) |
2000-2006 |
01 |
| 015 |
25385386 |
BRACKET, ELEK SUSP FRT POSN SEN (PART OF 13) |
CK1, 2 (Z55) |
2000-2006 |
01 |
| 016 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (ELEK SUSP FRT POSN SEN BRKT) |
|
2000-2006 |
02 |
